Description

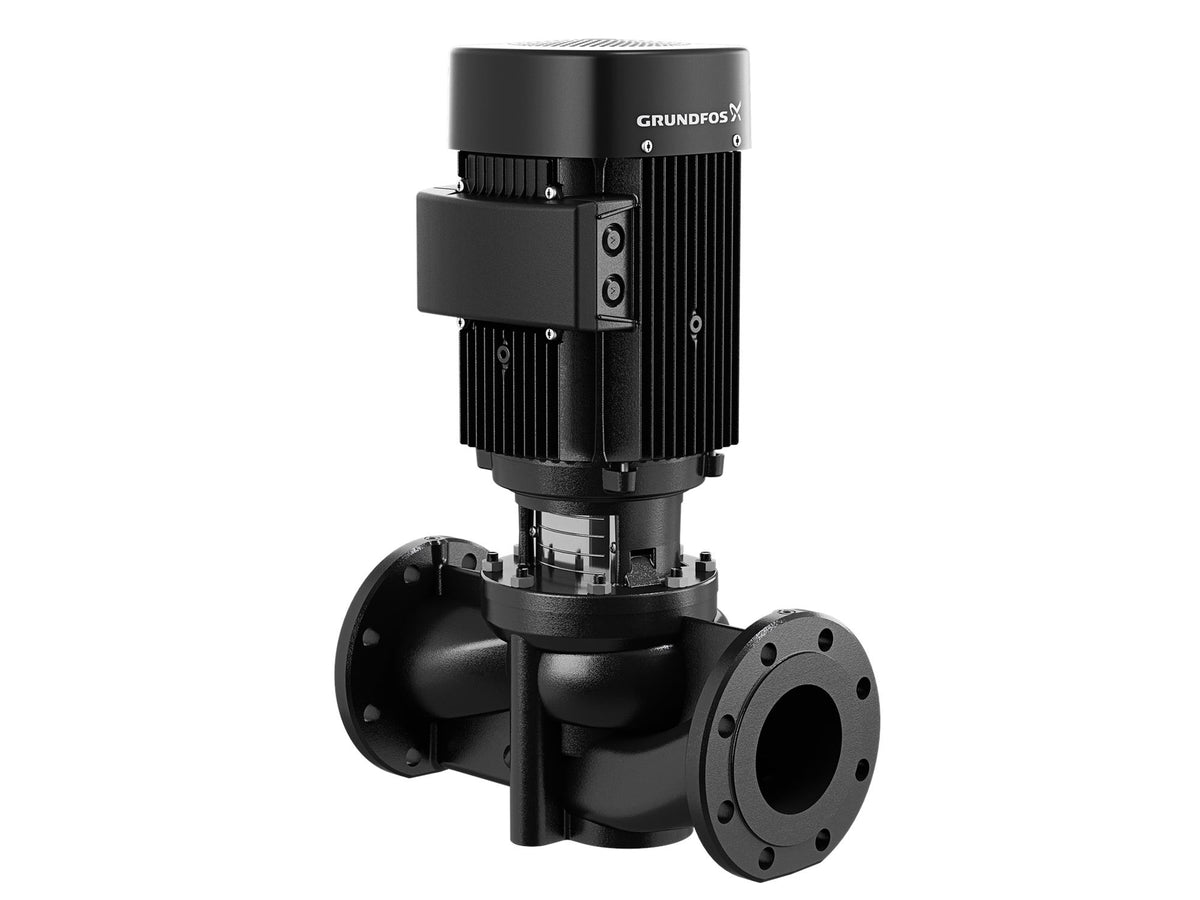

This inline single-stage pump is a TP32-80/2 A-G-A-RUUE model designed for applications such as heating, cooling, and district energy. It has a mechanical shaft seal and is fitted with fixed-speed motors.
Specifications
| Manufacturer | Grundfos |
|---|---|
| Part Number | 96737830 |
| Rated flow | 37.4 US gpm |
| Rated head | 19.36 ft |
| Primary shaft seal | RUUE |
| Approvals on motor nameplate | CE,CURUS,EAC |
| Curve tolerance | ISO9906:2012 3B2 |
| Pump Number | 96405248 |
| Pump housing | Cast iron, EN-JL1040, ASTM 25 B |
| Impeller | Stainless steel, DIN W.-Nr. 1.4301, AISI 304 |
| Range of ambient temperature | -22 .. 104 °F |
| Maximum operating pressure | 145.04 psi |
| Flange standard | USA |
| Pipe connection | 1 1/4" |
| Pumped liquid | Water |
| Liquid temperature range | -13 .. 140 °F |
| Selected liquid temperature | 68 °F |
| Density | 62.29 lb/ft³ |
| Motor type | 71AB |
| Rated power - P2 | 0.5 HP |
| KVA code | J |
| Main frequency | 60 Hz |
| Rated voltage | 3 x 208-230YY/460Y V |
| Service factor | 1.25 |
| Rated current | 1,64-1,55/0,78 A |
| Full load SF current | 2-1,9/0,95 A |
| Cos phi - power factor | 0.84-0.78 |
| Rated speed | 3430-3460 rpm |
| Motor efficiency at full load | 78.5 % |
| Motor efficiency at 3/4 load | 79.9-79.5 % |
| Motor efficiency at 1/2 load | 77.1-75.4 % |
| Insulation class (IEC 85) | F |
| Built-in motor protection | NONE |
| Gross weight | 57 lb |
| Shipping volume | 1.98 ft³ |
| Country of origin | US |
| Custom tariff no. | 8413.70.2025 |
