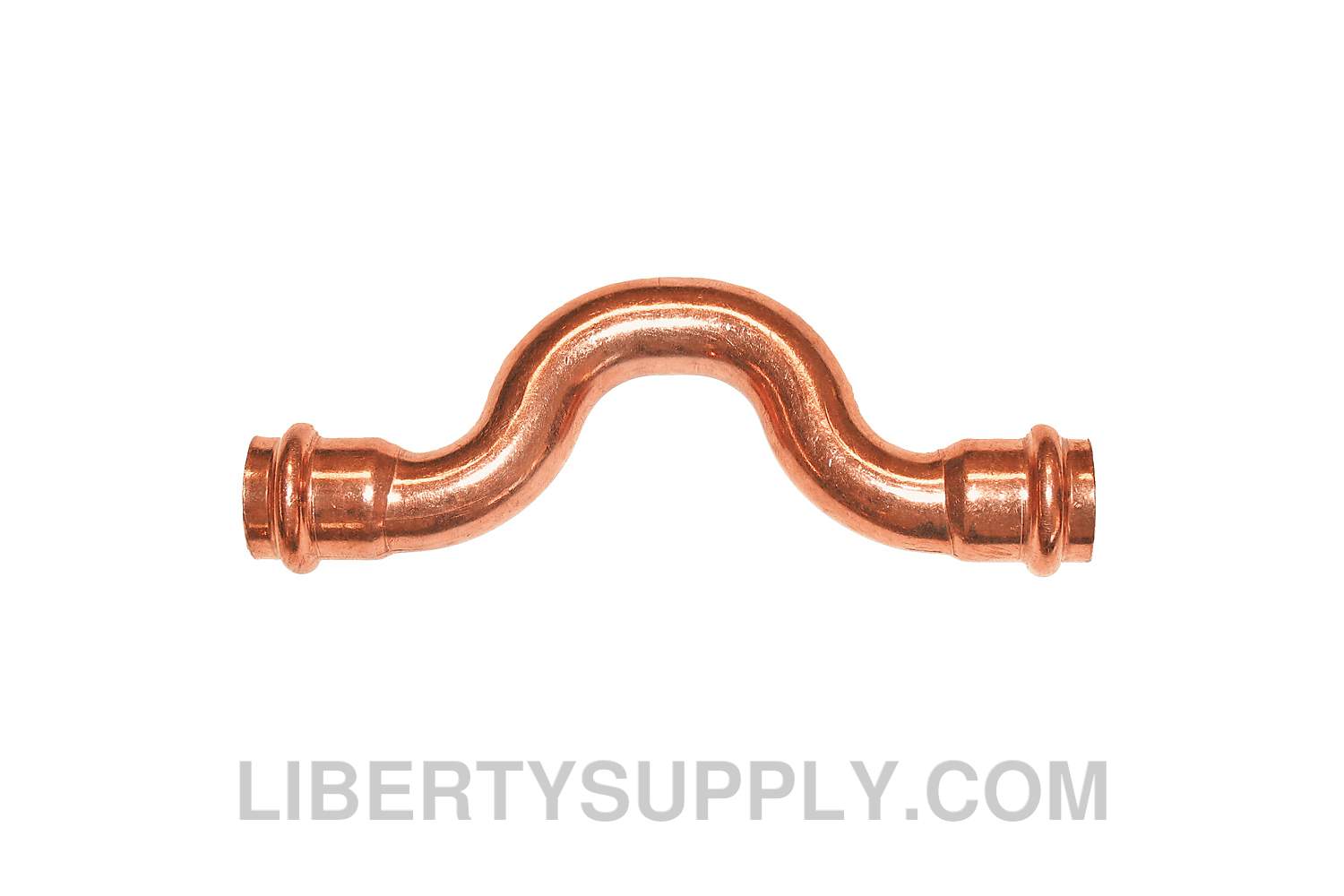

NIBCO Press System copper crossover couplings feature an inboard bead and EPDM O-ring. Simply applying pressure from a pressing tool tightens the O-ring onto the tube, ensuring a clean, watertight seal in seconds with no flame, solder, or flux. Crossover couplings have press connections. The fitting provides a method of connecting two lengths of tube while crossing over a different perpendicular tube. NIBCO press fittings are the fastest, easiest way to join copper tubing systems. NIBCO Press System fittings are designed to join with seamless copper water tubes in residential and commercial potable, hot, chilled, and process water applications for plumbing and HVAC systems. Press fittings can also be installed underground. The NIBCO Press System is user-friendly, quick, and easy to install. When properly crimped, a unique "N" witness mark is visible.
Features
- Operating pressure 200 psi CWP
- Temperature range -20°F to 250°F
- Lead-free
- Dezincification resistant
- ASTM B75 Alloy C12200 Copper
- NSF/ANSI/CAN-61
- Third party certified to UPC
- Third party certified to the performance requirements of CSA MSE 13 and PS-117
