Please note this item is made to order and additional lead-times may apply.

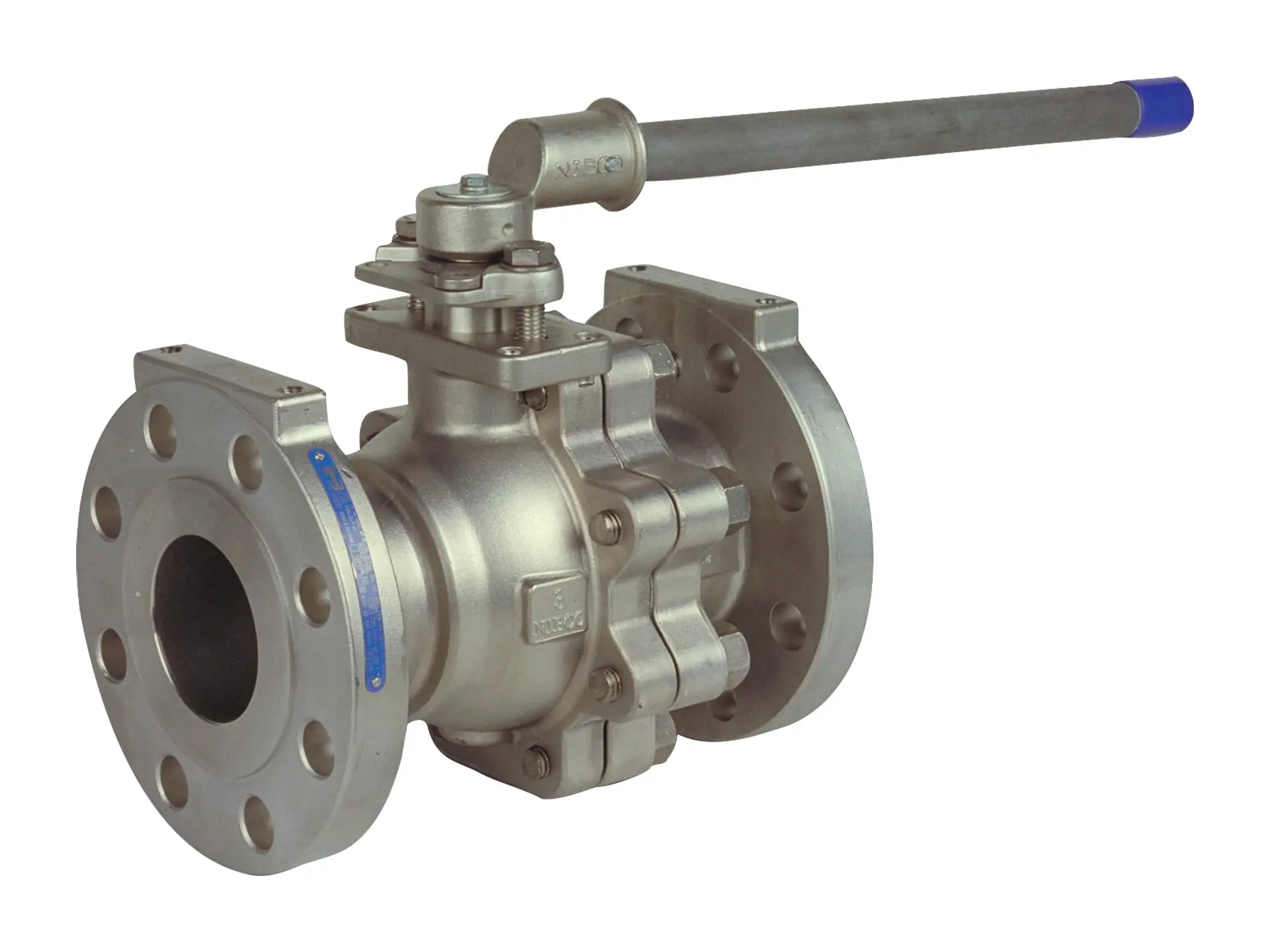

This NIBCO stainless steel, flanged end ball valve provides bubble-tight shutoff at 720 psi. The one-piece valve is recommended for industrial, petrochemical, utility service applications. It conforms to API-607 Fire Safe and API-608 Anti-Static requirements and is tested to API-598 criteria. This valve features a locking handle or manual gear operator. It may be used for isolation and throttling (half open to full open only). This NIBCO stainless steel ball valve provides ease of operation with quarter-turn (90°) open to close. The valve is equipped with mounting pad for actuation purposes. The carbon filled PTFE seat ring, multiple V-ring graphite and braided graphite stem packing set and stainless steel ball/stem exhibits high chemical resistance properties. Please refer to NIBCO technical data sheets, valve selection guides, chemical resistance guide and catalog for engineering and installation information. Choose NIBCO ball valves for the most specified, versatile and economical valve option in commercial and industrial applications. NIBCO ball valves are backed by the exclusive NIBCO INC. 5-year 125% limited warranty.
Features
- Valve pressure rating 720 psi 50 bar non-shock cold working pressure
- Maximum temperature rating 400°F
- Split body, full port design
- Blowout-proof stem
- Stainless steel ball and stem
- Multiple V-ring packing
- Mounting pad
- Vented ball
- Locking handle or manual gear operator
- Class 300 flanged end connections
- Conforms to MSS SP-72
- API-607 Fourth Edition Fire Safe
- API-608 Anti-Static
