Please note this item is assembled to order and additional lead-times may apply.

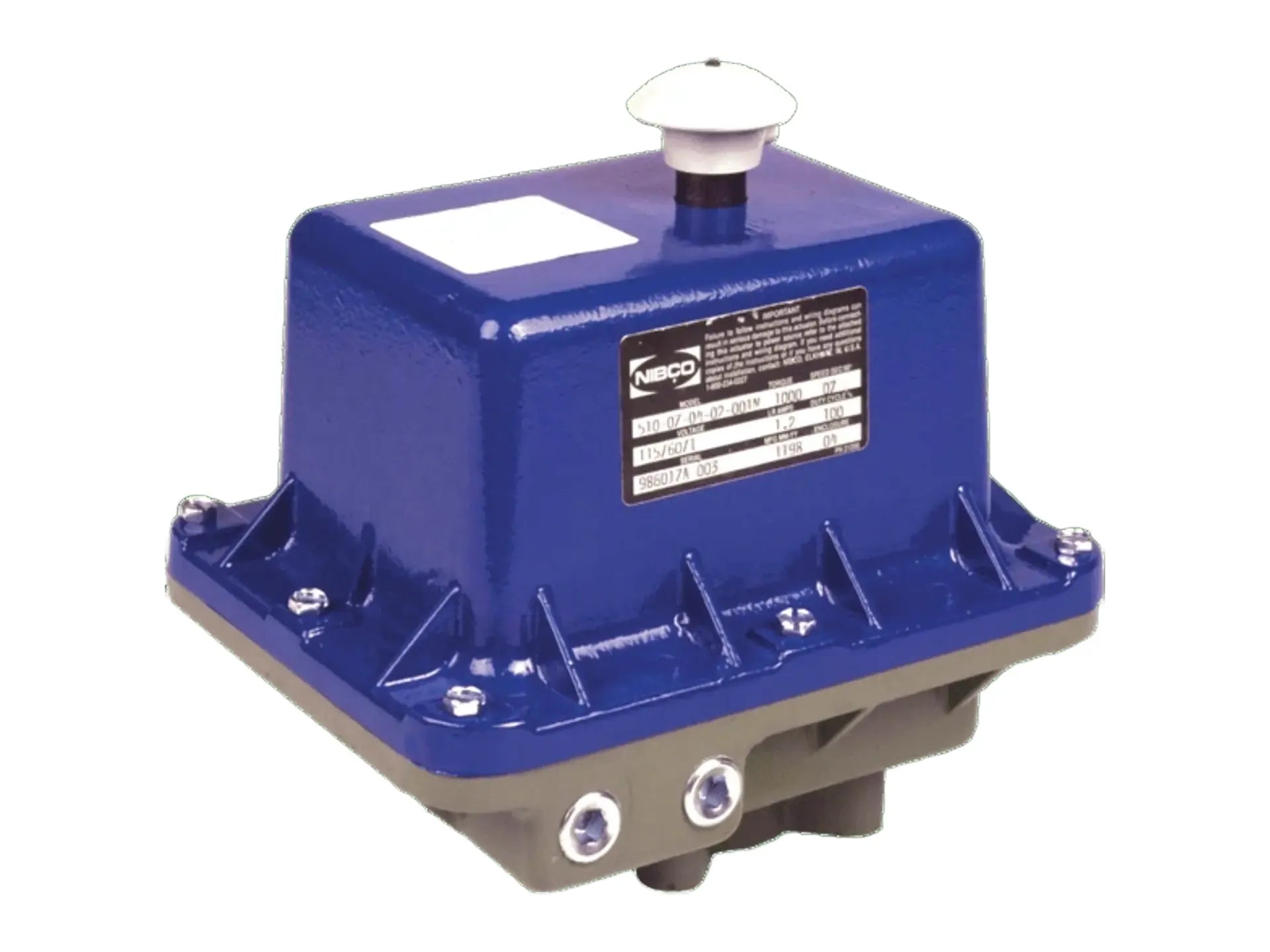

This NIBCO line of NE500 electric actuators is designed for quarter-turn applications, including ball valves, butterfly valves and plug valves, dampers, vents and similar uses. The actuators are constructed for the entire mid-range of torques and operating speeds. A heater and thermostat are installed in all Series 500 units. Operating temperatures of the electric actuators range from -40°F to +140°F. Motor availability includes AC and DC voltages and are extended-duty cycle rated. For automated or computer-controlled flow control systems, NIBCO electric actuators offer exceptional convenience and flexibility. Ideal for applications where the valve is not readily accessible, the actuators provide a labor-saving alternative to manual flow control regulation. Please refer to NIBCO technical data sheets, valve selection guides and catalog for engineering and installation information. Engineered with a modular approach, NIBCO electric actuation systems offer the flexibility to actuate new valves or to retrofit existing valves with unprecedented ease. Electric actuation systems feature an ISO standard mounting design, assuring long-term industry acceptance. Choose NIBCO flow control products for the most specified, versatile and economical option in commercial and industrial applications. NIBCO actuation products are backed by the NIBCO limited warranty.
Features
- Thermostat and heater installed
- Case hardened steel spur gear train is permanently lubricated
- Case hardened steel drive shaft
- Operating temperatures -40°F with standard heater activated, to +140°F
- Single phase capacitor run motor with thermal overload protection
- Declutchable manual override with position indicator
- Dual machined conduit entrances
- Captive slotted hex bolts on enclosure
- Operational in any mounting orientation
- Two single-pole double-throw end of travel micro switches with adjustable cams
- Weight 17 to 18 lbs.
- Voltage 24 VDC and 220 VAC
- Torque 700-1600 in/lb
- Enclosure certified to NEMA 4 and 7
- Female DIN/ISO F07 output drive and F07/F10 bolt pattern
