Please note this item is made to order and additional lead-times may apply.

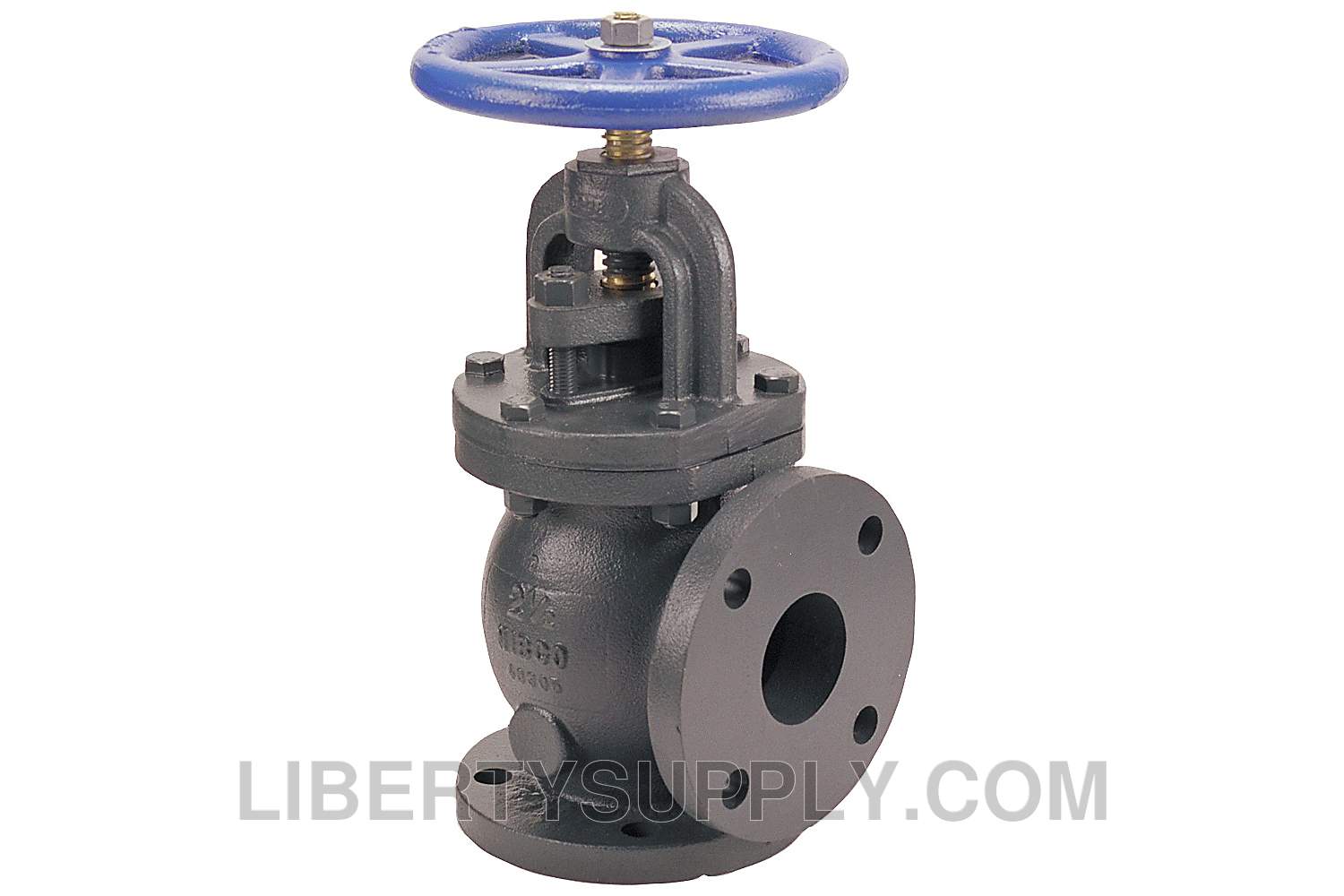

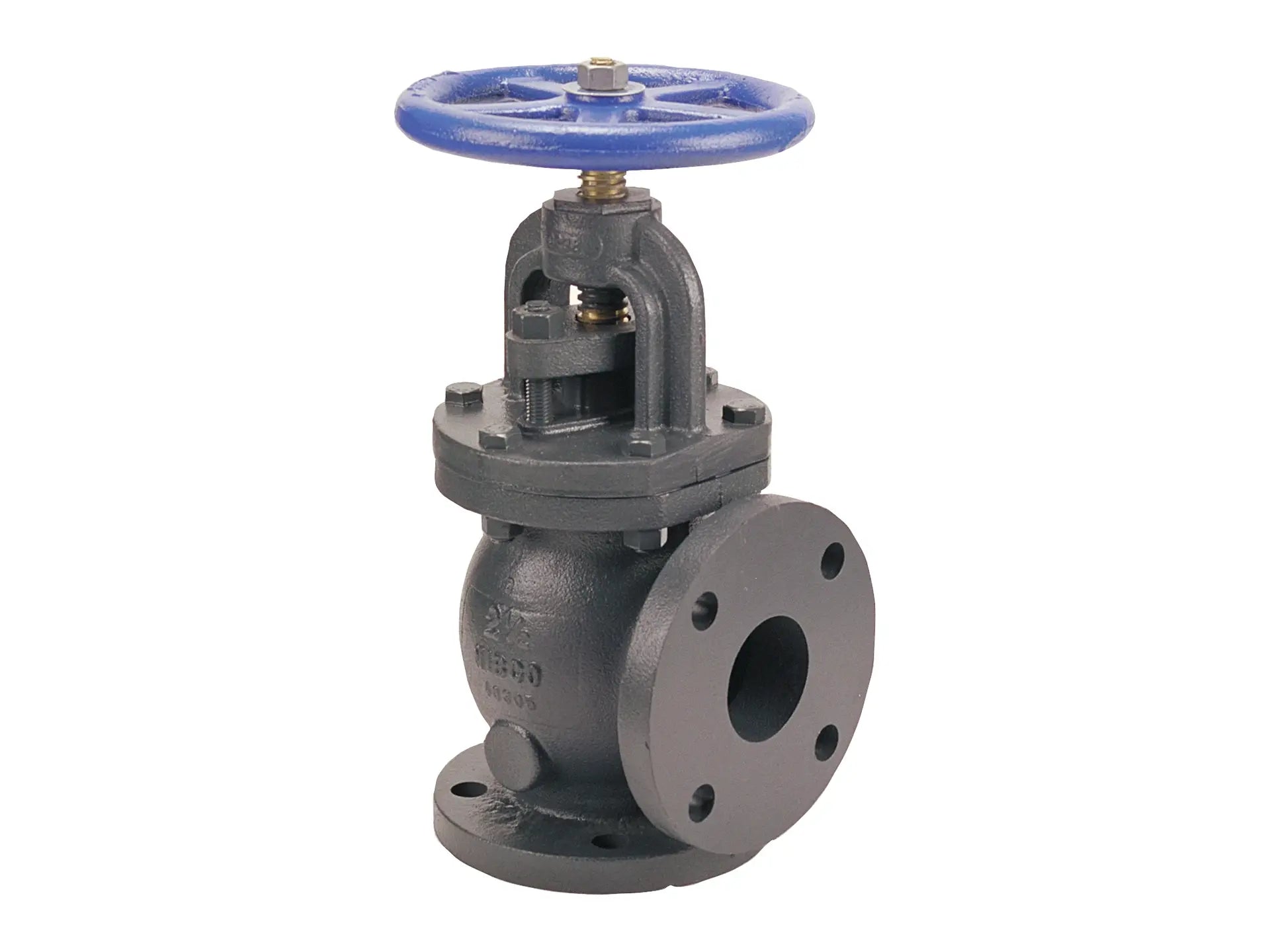

Cast iron angle valve has flanged end connections for ease of installation. This valve features renewable seat and disc. Because of its seat and disc arrangement the valve is ideal for throttling or regulating flow. The angle valve design eliminates a low area in the system where particles can settle and corrode or solidify. The bolted bonnet makes the valve convenient to maintain. This NIBCO Class 125 cast iron flanged angle valve is recommended for service in commercial and industrial applications, including hot and cold water, HVAC, steam, compressed air, gas and other general utility services. Choose NIBCO valves for the most specified, versatile and economical valve option in commercial, mechanical and industrial applications. NIBCO valves are backed by the NIBCO 5-year 125% limited warranty.
Features
- 125 psi/8.6 bar saturated steam to 353°F/178°C
- 200 psi/13.8 bar non-shock cold working pressure
- Bolted bonnet
- Bronze mounted trim
- Renewable seat and disc
- Class 125 flanged end connections
- Use in U.S. drinking water applications is prohibited after January 3, 2014
- Conforms to MSS SP-85
