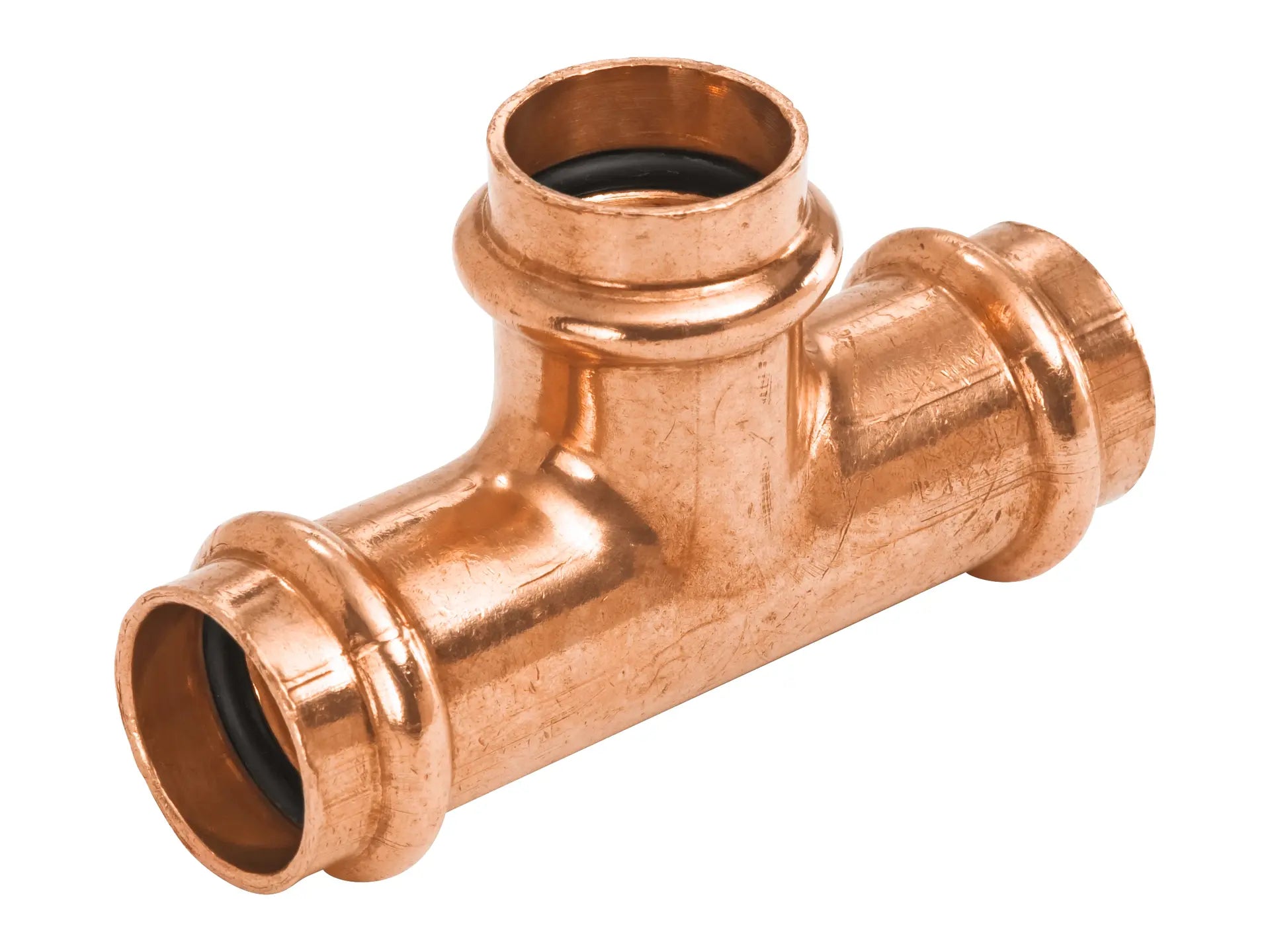

This NIBCO Press System wrot copper tee features an inboard bead and EPDM O-ring. Simply applying pressure from a pressing tool tightens the O-ring onto the tube, ensuring a clean, watertight seal in seconds with no flame, solder, or flux. The tee has press connections and allows for a connection to be made in a continuous pipeline and branch out to a different direction. NIBCO Press System fittings are the fastest, easiest way to join copper tubing systems in residential and commercial potable, hot, chilled, and process water applications for plumbing and HVAC systems. The press fittings can also be installed underground. This NIBCO Press System is user-friendly, quick, and easy to install. A unique "N" witness mark is clearly visible when properly crimped. Please refer to NIBCO technical data sheets and catalogs for information on engineering and installation. NIBCO Press System copper fittings are backed by a 50-year limited warranty.
Features
- Operating pressure 200 psiCWP
- Temperature range -20°F to 250°F
- Lead-free
- Dezincification resistant
- ASTM B75 Alloy C12200 Copper
- Complies with ASME B16/51 Performance
- Third-party certified to UPC
- Third-party certified to the performance requirements of CSA MSE 13 and PS-117
