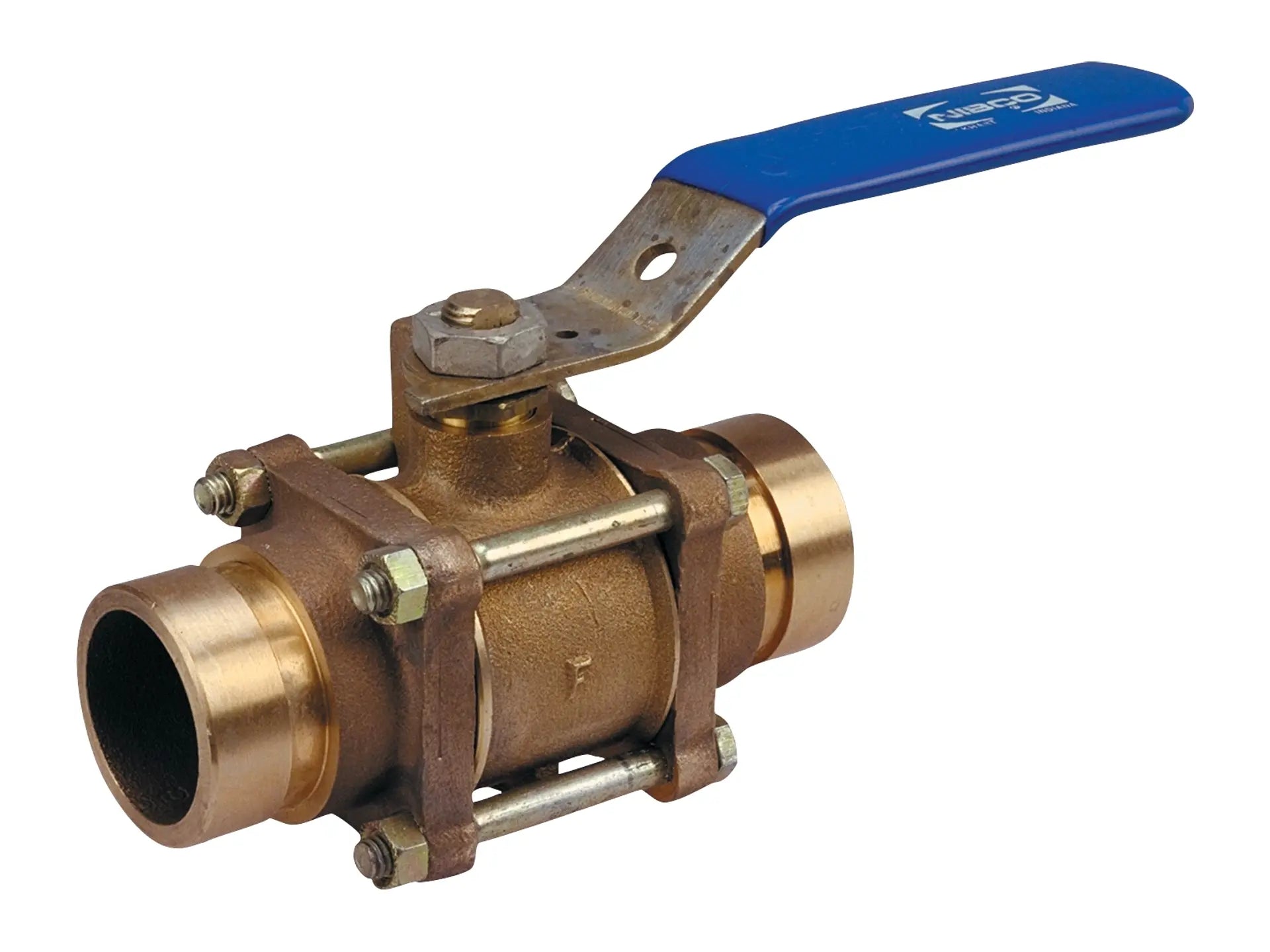

NIBCO G-590-Y 1-1/2" Grooved Bronze Ball Valve NJ8600C

SKU: LSIQKQ3G56 Part Number: NJ8600C Model: G-590-Y

Price:
Sale price$344.95 Regular price$465.10

Save 26% Call 844-448-0880 for large volume pricing

Stock:
Typically Stocked - Call or Chat to confirm
 More payment options

Description

Please note this item is made to order and additional lead-times may apply.

This NIBCO bronze ball valve provides bubble-tight shutoff at 600 psi. The three-piece valve is ideal for hot/cold water, numerous gas applications, compressed air, vacuum service, condenser and chilled water. It may be used for isolation and throttling (half open to full open only). The three-piece valve is repairable in-line. This NIBCO bronze ball valve provides ease of operation with quarter-turn (90°) open to close. The PTFE seat ring and brass hard chrome plated ball exhibits high chemical resistance properties and is recommended for many high pressure applications. The three-piece valve features IPS grooved end connections for easy installation. Options include NIB-SEAL insulated handle that eliminates condensate. Please refer to NIBCO technical data sheet, valve selection guide and catalog for engineering and installation information. Choose NIBCO ball valves for the most specified, versatile and economical valve option in commercial, mechanical and industrial applications. NIBCO ball valves are backed by the NIBCO INC. 5-year 125% limited warranty.

Features

  • Valve pressure rating 600 psi 41.4 bar non-shock cold working pressure
  • Maximum temperature rating 400°F
  • Conventional port
  • Chrome plated brass ball, silicon bronze stem
  • Blowout-proof stem
  • Standard lever handle, optional NIB-SEAL®
  • Dezincification resistant
  • IPS grooved end connections
  • Use in U.S. drinking water applications is prohibited after January 3, 2014
  • Conforms to MSS SP-110

Specifications

Manufacturer NIBCO
Part Number NJ8600C
Model G-590-Y
Series G-590-Y
Type of Valve Ball
Nominal Pipe Size 1-1/2"
End Connection Type G - Grooved
Material Bronze
Ball Body Type Three-Piece
Ball Operator CS Standard Lever Handle
Ball Port Style Conventional Port
Ball Material Brass with Hard Chrome Plate
Ball Stem Material BRZ - Bronze
Trim Package Bronze Trim
Stem Material Silicon Bronze
Seat Seal Material PTFE
Turns Operations Quarter-Turn
Pressure Rating (CWP) 600 psi/41.4 Bar CWP
Potable Water Code Not LL Comp not intend potable
UPC Code 039923683113
Length 9.38"
Width 3.94"
Height 2.37"
Country of Origin US
CA Proposition 65 Warning Statement WARNING: This product can expose you to chemicals including Lead, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov.
Notes and Disclaimer NIB-SEAL® is a registered trademark of NIBCO INC.

About NIBCO

NIBCO is a recognized manufacturer and brand leader of valves, fittings, and flow-control products.
