3.11 g |
Acid capacity [oz] |
0.11 oz |
Activated alum/Molec sieve [%] |
20% / 80% |
Activated alumina [%] |
20% |
Approval |
UL |
Body material |
Steel |
Bracket |
No |
Connection material |
Steel |
Core |
Solid core |
Core Size code |
16 cu.in. |
Core type |
Solid core |
Drying Cap[Drops of Water]24°C |
R134a: 443, R290: --, R32: 373, R404A: 461, R407C: 430, R410A: 401, R507: 483 |
Drying Cap[Drops of Water]52°C |
R134a: 405, R290: --, R32: 343, R404A: 437, R407C: 396, R410A: 356, R507: 434 |
Filter application |
Standard Moisture & Acid Capacity |
Flow Capacity KW |
R134a: 6.3, R290: --, R32: 9.6, R404A: 4.4, R407C: 6.4, R410A: 6.5, R507: 4.3 |
Flow Capacity TR |
R134a: 1.8, R290: --, R32: 2.7, R404A: 1.3, R407C: 1.8, R410A: 1.9, R507: 1.2 |
Flow direction indicator |
Label printed 1-way arrow |
Fluid Group |
2 |
In scope of WEEE and contain batteries |
No |
Inlet 1 connection size [in] |
1/4" |
Inlet connection size [mm] |
6 mm |
Inlet connection type |
Flare |
LiqCap Cond (ARI 710-2009)[SI] |
Delta p=0.07bar, tliq= 30°C, tvap=-15°C |
LiqCapCond (ARI 710-2009)[IMP] |
DELTA P=1PSI, tliq= 86°F, tvap=5°F |
Lubricants compatibility |
Oilfree applications |
Max. Working Pressure [bar] |
46 bar |
Max. Working Pressure [psig] |
667 psig |
Molecular sieve [%]
|
80% |
Net volume [foz US] |
7.63 Fluid Ounce US |
Net volume [l] |
0.226 L |
Oil free refrigerants |
R1234ze(E), R134a, R513A, R515A |
Outlet 1 connection size [in] |
1/4" |
Outlet connection size [mm] |
6 mm |
Outlet connection type |
Flare |
REACH Candidate List substances |
No |
Refrigerants |
R1233zd(E), R1234yf, R1234ze(E), R125, R134a, R22/R407C, R23, R32, R404A, R407A, R407F, R407H, R410A, R422B, R422D, R438A, R444B, R448A, R449A, R449B, R450A, R452A, R452B, R454A, R454B, R454C, R455A, R463A, R507A, R513A, R515B, R516A |
Serviceable |
No |
Shell volume [foz US] |
11.97 Fluid Ounce US |
Shell volume [l] |
0.35 L |
Solid core surface [cm2] |
183 cm² |
Solid core surface [in2] |
28.34 in² |
Solid core volume [cm3] |
128 cm³ |
Solid core volume [in3] |
7.84 in³ |
Temperature range [°C] [Max] |
70°C |
Temperature range [°C] [Min] |
-40°C |
Temperature range [°F] [Max] |
160°F |
Temperature range [°F] [Min] |
-40°F |
Type |
DCL |

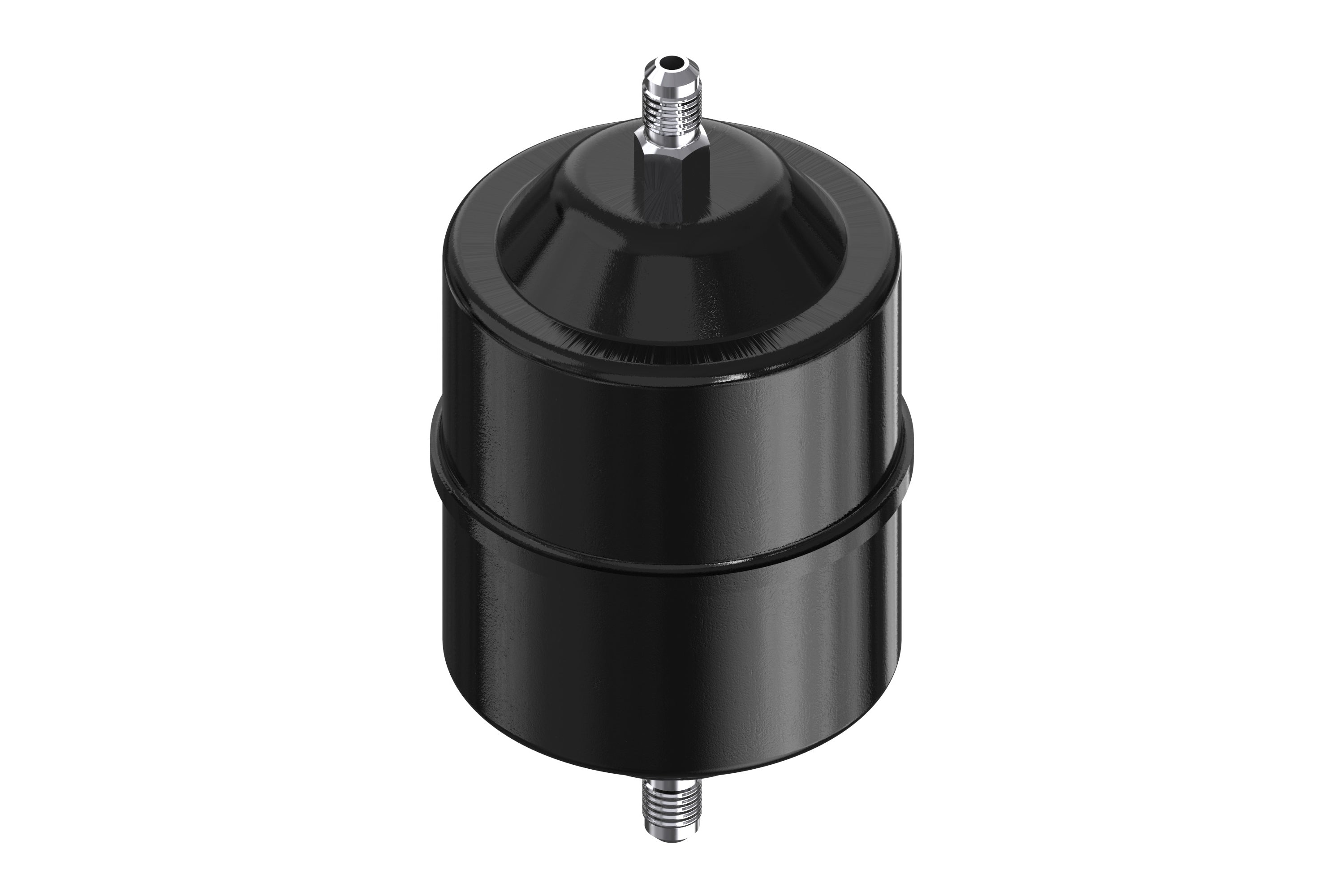

Type designation |
DCL 162 |
UL approval file name |
SA6398 |
UL approved refrigerants |
R125, R134a, R22, R23, R404A, R407A, R407C, R407F, R410A, R422B, R422D, R438A, R448A, R449A, R449B, R450A, R452A, R507A, R513A |
