Description

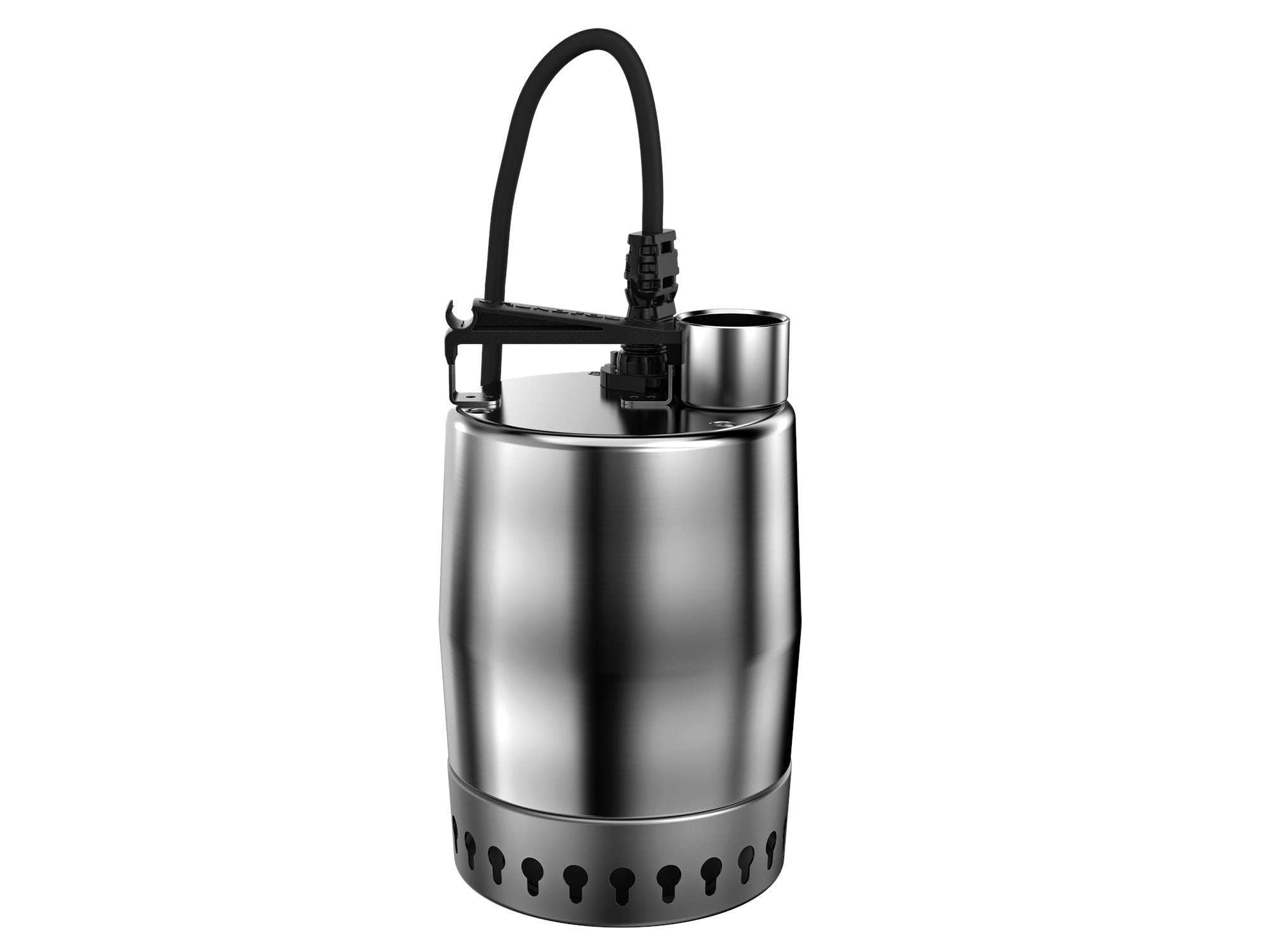

This submersible wastewater pump is designed for pumping non-aggressive water and grey wastewater, including drainage and domestic effluents with particles up to 10 mm. It can be used as a portable unit or installed stationary inside and outside buildings, suitable for both commercial and domestic wastewater applications.
Specifications
| Manufacturer | Grundfos |
|---|---|
| Part Number | 013DC001 |
| Rated flow | 32.3 US gpm |
| Maximum flow | 61.6 US gpm |
| Rated head | 21.42 ft |
| Maximum head | 31.17 ft |
| Type of impeller | SEMI OPEN |
| Free passage | 0.39 in |
| Approvals | CCSAUS,PROP65 |
| Pump housing | Stainless steel, EN 1.4301, AISI 304 |
| Impeller | Stainless steel, EN 1.4301, AISI 304 |
| Range of ambient temperature | 32 .. 122 °F |
| Type of connection | NPT(F) |
| Size of connection | 1 1/4 inch |
| Maximum installation depth | 9.84 ft |
| Inst dry/wet | DRY/SUBMERGED |
| Liquid temperature range | 32 .. 113 °F |
| Selected liquid temperature | 68 °F |
| Density | 62.29 lb/ft³ |
| Power input P1 | 558 W |
| Main frequency | 60 Hz |
| Rated voltage | 1 x 115 V |
| Rated current | 7.5 A |
| Starting current | 23.1 A |
| Rated speed | 3316 rpm |
| Capacitor size - run | 20 µF/250 V |
| Enclosure class (IEC 34-5) | IP68 |
| Insulation class (IEC 85) | F |
| Built-in motor protection | CONTACT |
| Thermal protec | internal |
| Length of power cable | 9.84 ft |
| Type of cable plug | US |
| Net weight | 15 lb |
| Gross weight | 16.1 lb |
| Shipping volume | 0.44 ft³ |
| Sales region | Namreg |
