Description

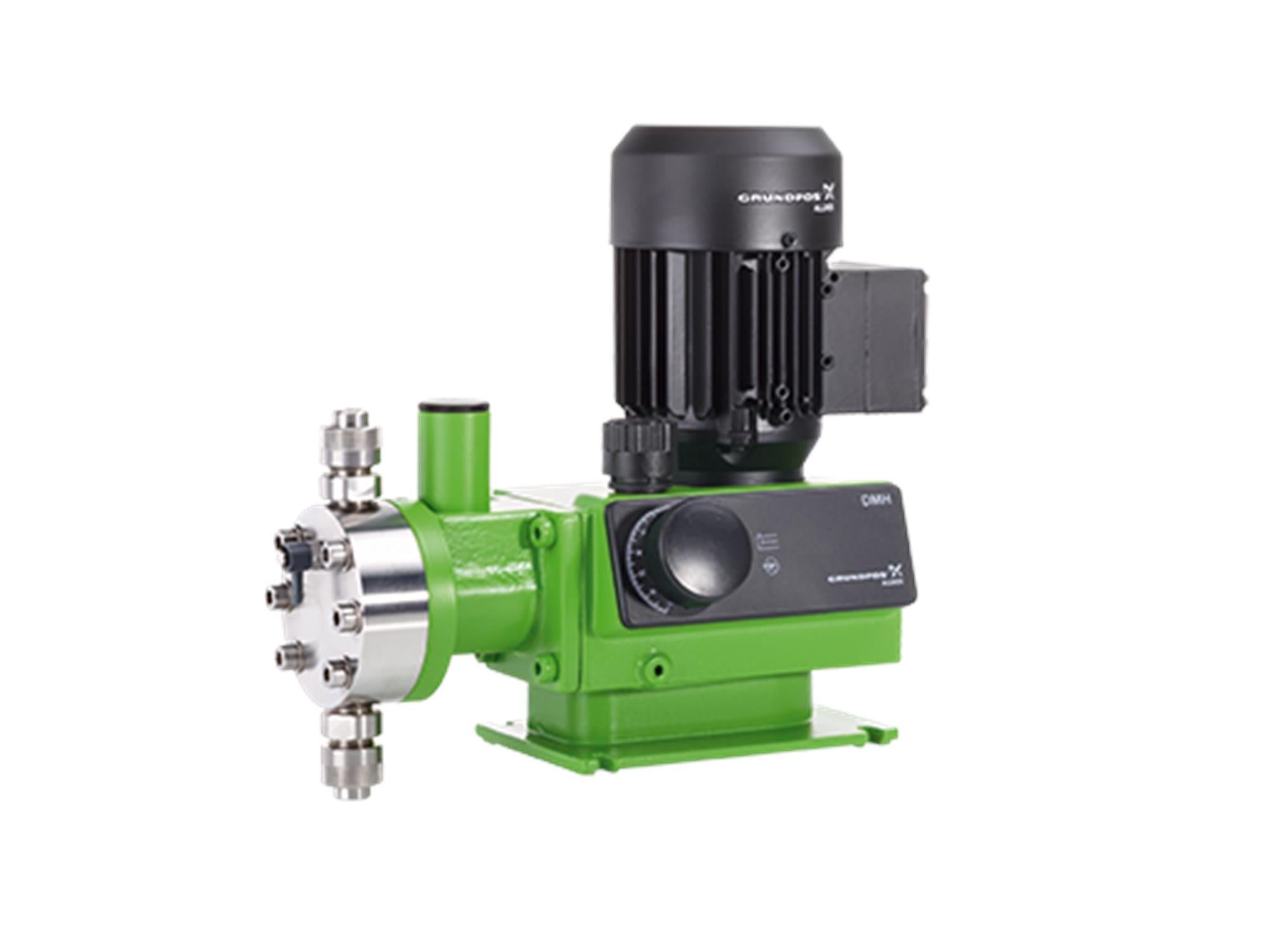

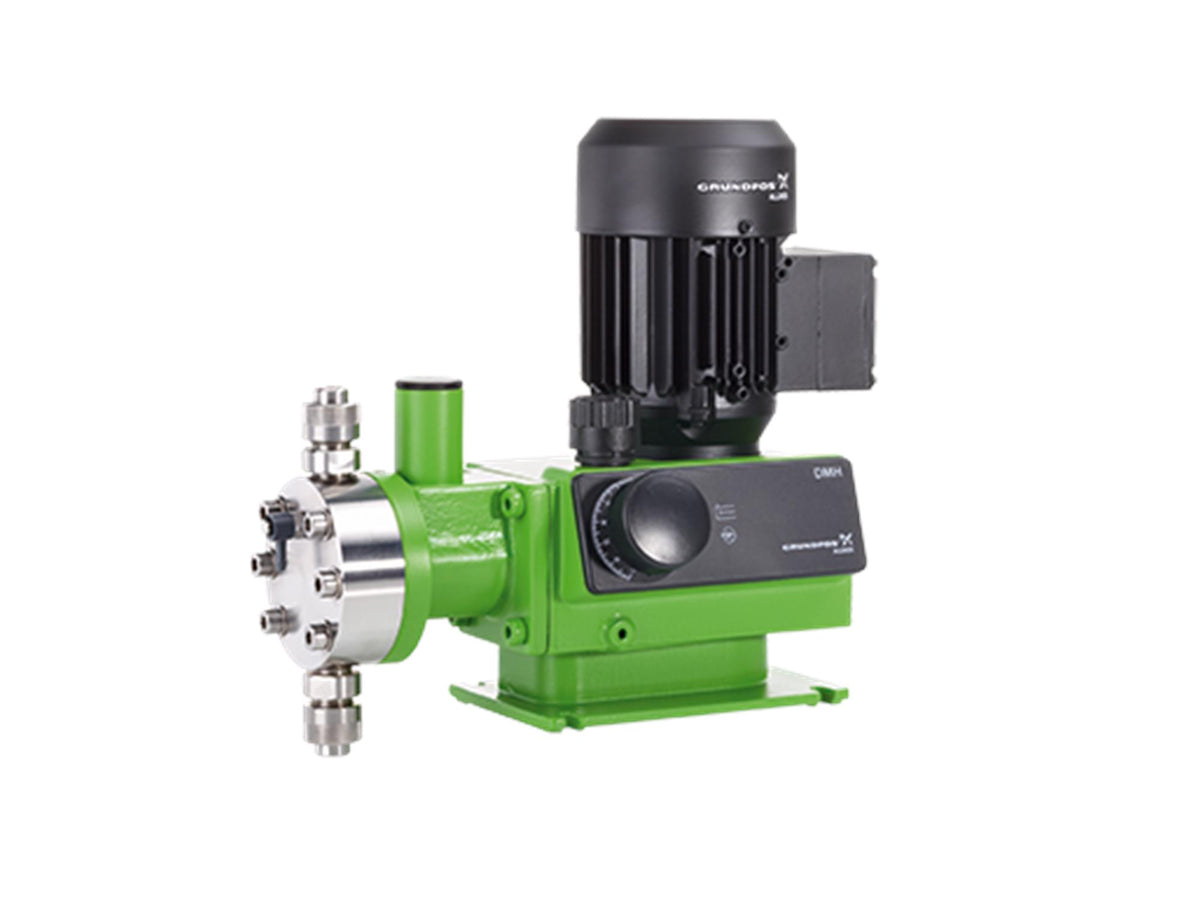

This hydraulically driven diaphragm dosing pump with an external motor is used in industrial cooling, process liquids transfer, and industrial process water treatment applications.
Specifications
| Manufacturer | Grundfos |
|---|---|
| Part Number | 95724399 |
| Nominal flow rate at 60 Hz | 0.4597 US gal/hour |
| Number of dosing heads | 1 |
| Approvals | CE |
| Non return valve type, inlet pump 1 | Spring-loaded |
| Max viscosity | 5 mPas |
| Pump housing | Aluminium |
| Dosing head, pump 1 | V4A |
| Valve ball inlet | Ceramic |
| Valve gasket inlet | PTFE |
| Maximum operating pressure | 2900.75 psi |
| Type of inlet connection | Cutting ring |
| Type of outlet connection | Cutting ring |
| Size of inlet connection | 4/6 |
| Size of outlet connection | 4/6 |
| Max. Suction lift during operation | 0 ft |
| Pumped liquid | Water |
| Selected liquid temperature | 68 °F |
| Density | 62.29 lb/ft³ |
| Power input P1 | 0,180 kW kW |
| Main frequency | 60 Hz |
| Rated voltage | 1 x 115 V, 60 Hz V |
| Enclosure class (IEC 34-5) | IP 65/F |
| Power plug | USA, Canada |
| Mains cable | 2.00 m m |
| Control variant | AR |
| Stroke control | manual |
| Control panel | Facing adjustment knob |
| Level control | Yes |
| Analog input | 0/4-20 mA |
| Pulse control | YES |
| Ext. Stop input | YES |
| Analog output | 0/4-20 mA |
| Other in/output | Alarm and stroke relay |
| Output relays | 2 |
| Frequency converter | Not prepared for VFD |
| Flow rate adjustment | manual |
| Diaphragm Leakage Detection | NO |
| Grundfos Alldos PN | 280-1.3-10045 |
