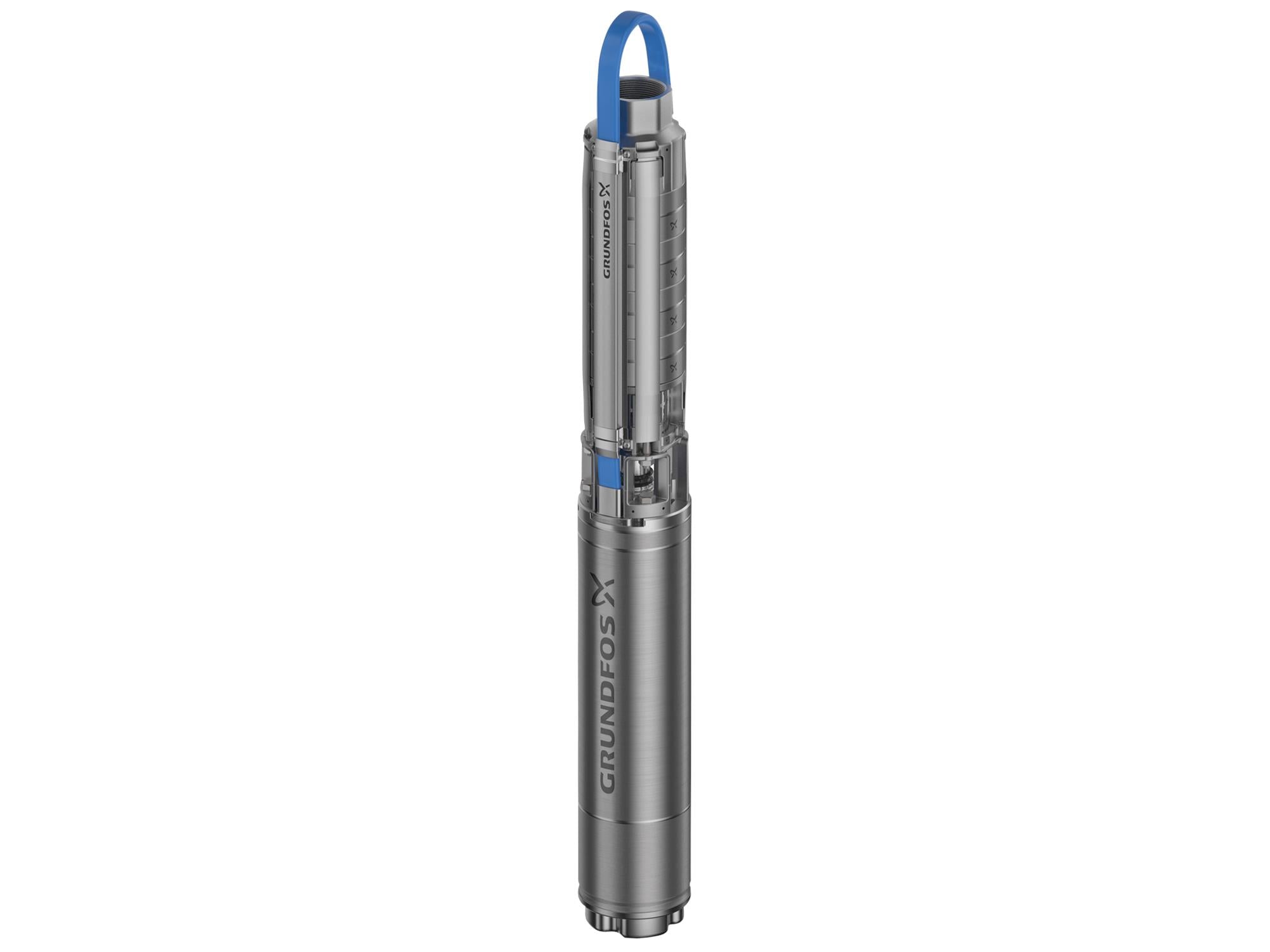

Grundfos 12B63611, Submersible Pump 85S150-11 Stainless Steel

Roll over image to zoom in Click on image to zoom

Grundfos 12B63611, Submersible Pump 85S150-11 Stainless Steel

Name: Grundfos 12B63611, Submersible Pump 85S150-11 Stainless Steel
Brand: Grundfos
SKU: LSIQRJ1SD5
Price: 14412.95 USD
Availability: OutOfStock

SKU: LSIQRJ1SD5 Part Number: 12B63611

Price:

$14,412.95

Save -24% Call 844-448-0880 for large volume pricing

Stock:

Obsolete

Quantity:

This submersible pump is constructed from stainless steel, including EN 1.4301 (AISI 304), EN 1.4401 (AISI 316), and EN 1.4539 (AISI 904L) materials. It is suitable for applications such as groundwater extraction, irrigation, mining, fountains, and off-shore operations.

Manufacturer	Grundfos
Part Number	12B63611
Pump speed on which pump data are based	3450 rpm
Rated flow	88.1 US gpm
Rated head	420 ft
Stages	11
Number of reduced-diameter impellers	NONE
Shaft seal for motor	SIC/SICNBR
Approvals	CULDWUS,CCSAUS
Approvals for drinking water	PROP65
Curve tolerance	ISO9906:2012 3B
Motor version	T40
Return valve	YES
Pump	Stainless steel, EN 1.4301, AISI 304
Impeller	Stainless steel, EN 1.4301, AISI 304
Motor	Stainless steel, DIN W.-Nr. 1.4301, AISI 304
Maximum ambient pressure	870.23 psi
Maximum operating pressure	870.23 psi
Maximum outlet pressure	263.97 psi
Type of connection	NPT(F)
Size of connection	3 inch
Motor diameter	6 inch
Minimum borehole diameter	5.71 in
Pumped liquid	Water
Liquid temperature range	5 .. 104 °F
Selected liquid temperature	68 °F
Density	62.29 lb/ft³
Motor type	MS6000
Motor flange design	Grundfos
Rated power - P2	15 HP
Power (P2) required by pump	15 HP
KVA code	H
Main frequency	60 Hz
Rated voltage	3 x 440-460-480 V
Service factor	1.15
Rated current	25.0-24.4-24.0 A
Starting current	420-460-490 %
Cos phi - power factor	0.84-0.83-0.80
Rated speed	3450-3470-3480 rpm
Axial load max	6170 lb
Start. method	direct-on-line
Enclosure class (IEC 34-5)	IP68
Insulation class (IEC 85)	F
Built-in motor protection	NONE
Thermal protec	external
Built-in temperature transmitter	yes
Cable number	N/A
Windings	Enamelled
Minimum efficiency index, MEI ≥	-.--
DOE Pump Energy Index CL	0.85
Net weight	153 lb
Gross weight	219 lb
Shipping volume	8.19 ft³
