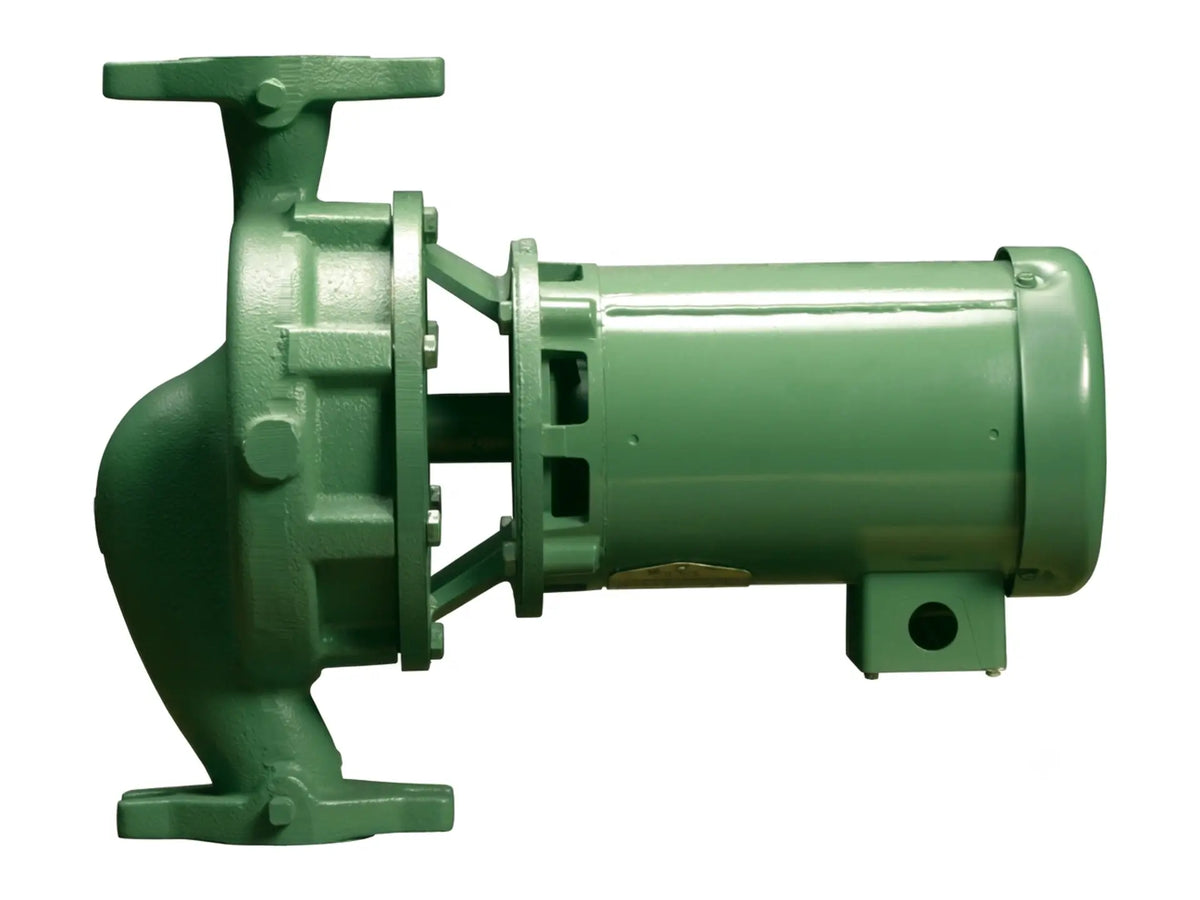

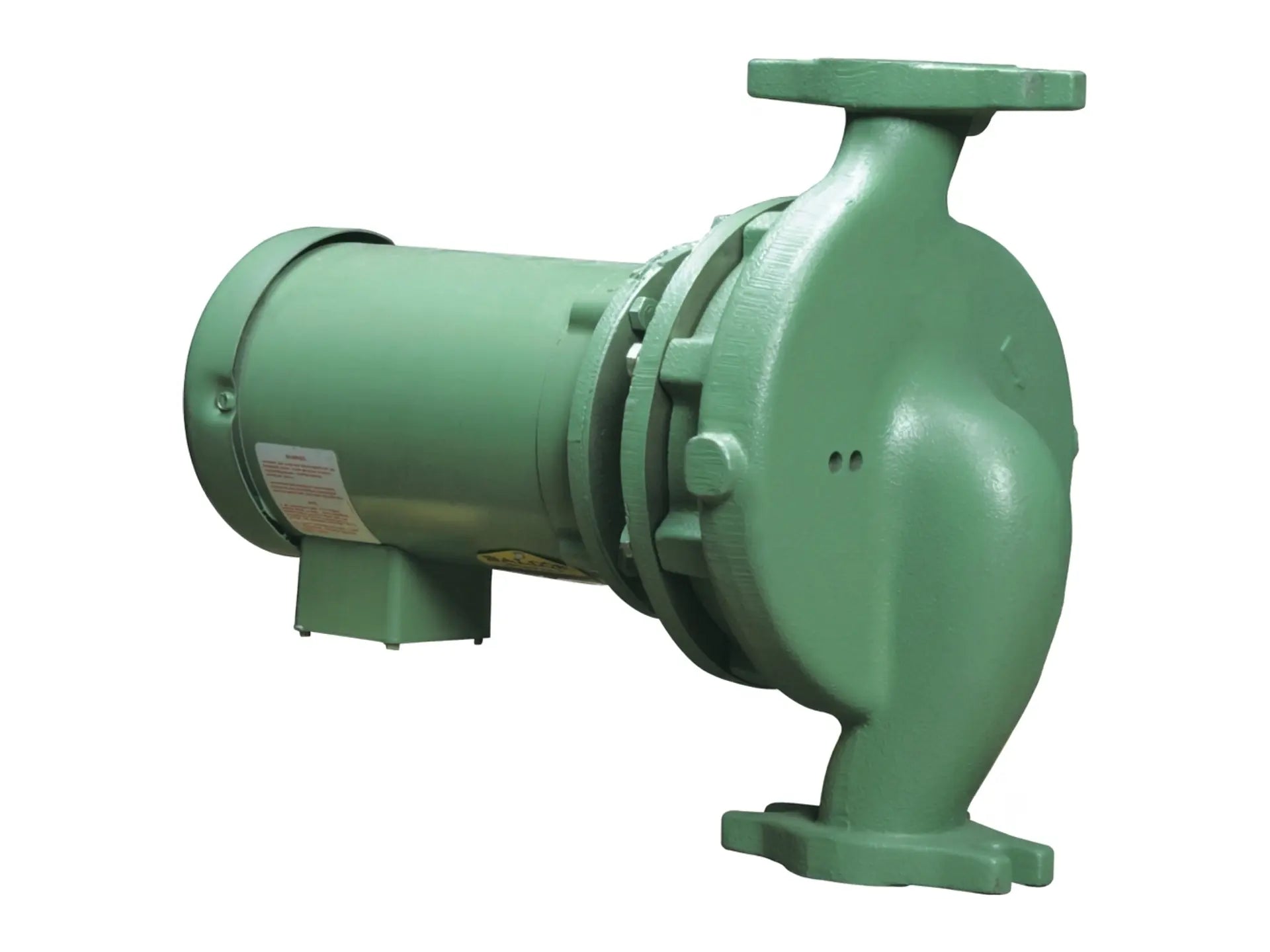

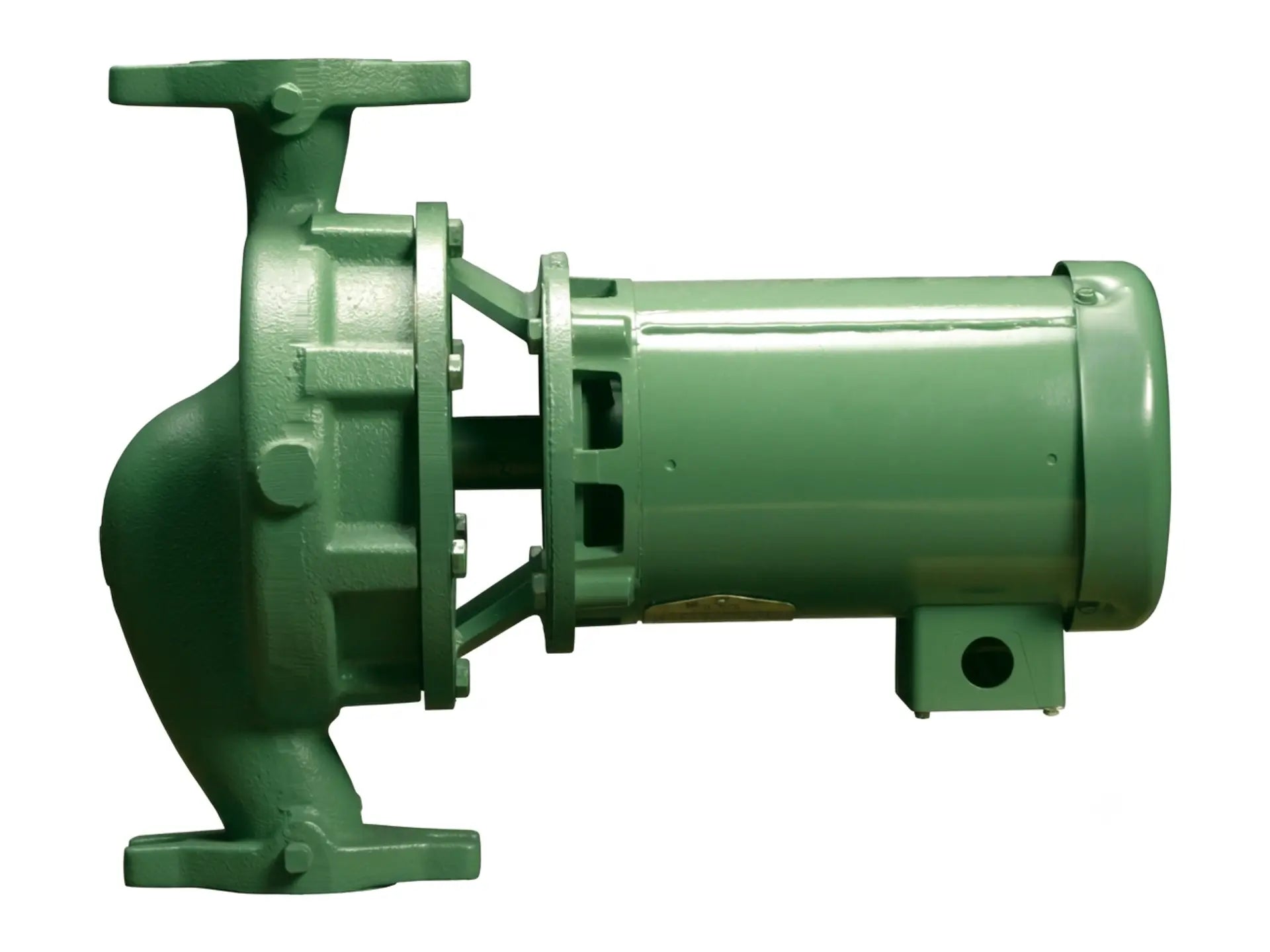

This close-coupled in-line pump has an in-line configuration with aligned 1.5-inch suction and discharge ports. The casing, impeller, face plate, and shaft use stainless steel construction, while the bracket uses cast iron. This self-supporting assembly permits vertical or horizontal installation and includes pressure tappings for differential readings. The hydraulic assembly has a 6.35-inch nominal impeller diameter. The internal seal uses a ceramic seat, carbon rotor, and EPT rubber, allowing operation at temperatures up to 250°F. The casing structure handles a maximum operating pressure of 175 PSI.
The 7.5 HP motor operates at 3450 RPM and has a TEFC enclosure with a 230/460V, 3PH power supply. Maintenance-free operation is supported by permanently sealed, grease-lubricated motor ball bearings. Utilizing a rear pull-out design, the assembly permits complete removal of the motor and rotating components for servicing without disturbing the connected piping layout.
