Grundfos 96522869, CRI 10-2 A-CA-A-E-HQQE Vertical Multistage Pump

Roll over image to zoom in Click on image to zoom

Grundfos 96522869, CRI 10-2 A-CA-A-E-HQQE Vertical Multistage Pump

Name: Grundfos 96522869, CRI 10-2 A-CA-A-E-HQQE Vertical Multistage Pump
Brand: Grundfos
SKU: LSIQWUGQI6
Price: 3289.95 USD
Availability: OutOfStock

SKU: LSIQWUGQI6 Part Number: 96522869

Price:

$3,289.95 $4,910.00

Save 33% Call 844-448-0880 for large volume pricing

Stock:

Obsolete

Quantity:

This vertical multistage centrifugal pump has suction and discharge ports on the same level. It is constructed with stainless steel materials in contact with the liquid, suitable for applications such as water treatment fertigation, chemigation, dosing, controls and digital groundwater management, and drip irrigation systems.

Manufacturer	Grundfos
Part Number	96522869
Rated pump speed	3450 rpm
Rated flow	53.3 US gpm
Rated head	70.87 ft
Maximum head	95.15 ft
Actual impeller diameter	3.66 in
Stages	2
Impellers	2
Number of reduced-diameter impellers	0
Low NPSH	N
Pump orientation	Vertical
Shaft seal arrangement	Single
Code for shaft seal	HQQE
Approvals	CURUS
Curve tolerance	ISO9906:2012 3B
Pump version	A
Cooling	TEFC
Base	Stainless steel, EN 1.4408, AISI 316
Impeller	Stainless steel, EN 1.4301, AISI 304
Material code	A
Code for rubber	E
Bearing	SIC
Maximum ambient temperature	104 °F
Maximum operating pressure	232.06 psi
Max pressure at stated temperature	232 psi / 250 °F, 232 psi / -4 °F
Type of connection	FlexiClamp
Size of inlet connection	DN 50
Size of outlet connection	DN 50
Pressure rating for connection	PN 25
Flange size for motor	56C
Connect code	CA
Pumped liquid	Water
Liquid temperature range	-4 .. 248 °F
Selected liquid temperature	68 °F
Density	62.29 lb/ft³
Motor standard	NEMA
Motor type	BALDOR
Rated power - P2	1.5 HP
Power (P2) required by pump	1.5 HP
Main frequency	60 Hz
Rated voltage	1 x 115/208-230 V
Service factor	1.30
Rated current	17/9,50-8,60 A
Full load SF current	20,4/11,3-10,2 A
Rated speed	3450 rpm
IE efficiency	71%
Motor efficiency at full load	71 %
Number of poles	2
Insulation class (IEC 85)	B
Built-in motor protection	NONE
Frequency converter	None
DOE Pump Energy Index CL	0.87
Net weight	99.2 lb
Gross weight	117 lb
Shipping volume	6.11 ft³

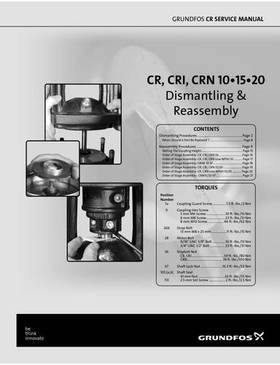

CR, CRI, CRN 10, 15 & 20 (Dismantling & Reassembly) (Service manual)

CR Reading the Pump Nameplate

CR, CRI, CRN - Vertical multistage centrifugal pumps (Data booklet)

CR, CRI, CRN, CRT, CRE, CRIE, CRNE, CRTE (Custom-built pumps) (Data booklet)

GRUNDFOS CR/CRE, Vertical Multistage Variable Speed System (Leaflet)

CR, CRI, CRN, CRT (I & O instructions)

Grundfos has a wide range of products, pump solutions, and services for all applications. Grundfos' energy-efficient pumps provide comfort and move water, wastewater, and industrial liquids all over the world.
