Name: Grundfos 19671920, BM 95-20R NBR Encapsulated Pump for Water Supply
Brand: Grundfos
SKU: LSIR0SKYOZ
Price: 182170.0 USD
Availability: OutOfStock

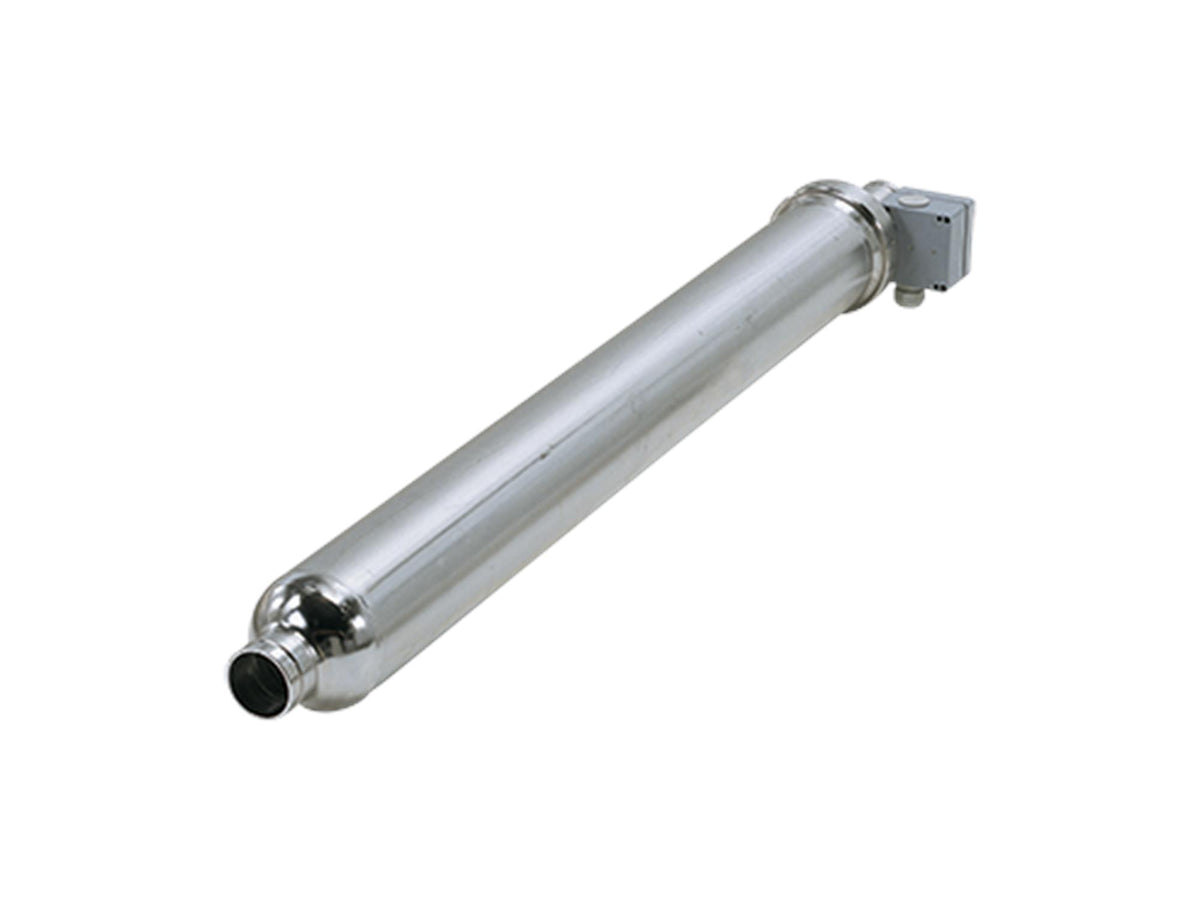

Grundfos 19671920, BM 95-20R NBR Encapsulated Pump for Water Supply

Roll over image to zoom in Click on image to zoom

This encapsulated pump is a modified standard submersible pump designed for various industrial filtration applications and water supply. It has an asynchronous submersible squirrel-cage motor, making it suitable for drinking water treatment, desalination, and industrial water supply and transfer.

Manufacturer	Grundfos
Part Number	19671920
Rated flow	418 US gpm
Rated head	797.3 ft
Stages	20
Curve tolerance	ISO9906:2012 3B
Pump	Stainless steel, DIN W.-Nr. 1.4539, AISI 904L
Impeller	Stainless steel, EN 1.4539, AISI 904L
Motor	Stainless steel, DIN W.-Nr. 1.4539, AISI 904L
Code for rubber	NBR
Sleeve	Stainless steel, SAF 2205, EN 1.4462
Maximum operating pressure	1199.46 psi
Maximum permissible inlet pressure	870.23 psi
Maximum outlet pressure	1189.31 psi
Pipe connection standard	PJE
Pipe connection	139 mm
Pumped liquid	Water
Maximum liquid temperature	104 °F
Selected liquid temperature	68 °F
Density	62.29 lb/ft³
Rated power - P2	123 HP
Main frequency	50 Hz
Rated voltage	3 x 380-400-415 V
Rated current	194-186-186 A
Starting current	520-590-620 %
Cos phi - power factor	0.88-0.86-0.83
Start. method	direct-on-line
Enclosure class (IEC 34-5)	IP66
Built-in temperature transmitter	No
Minimum efficiency index, MEI ≥	-.--
Net weight	1150 lb
Gross weight	1500 lb
Shipping volume	72.7 ft³

Grundfos has a wide range of products, pump solutions, and services for all applications. Grundfos' energy-efficient pumps provide comfort and move water, wastewater, and industrial liquids all over the world.
