Description

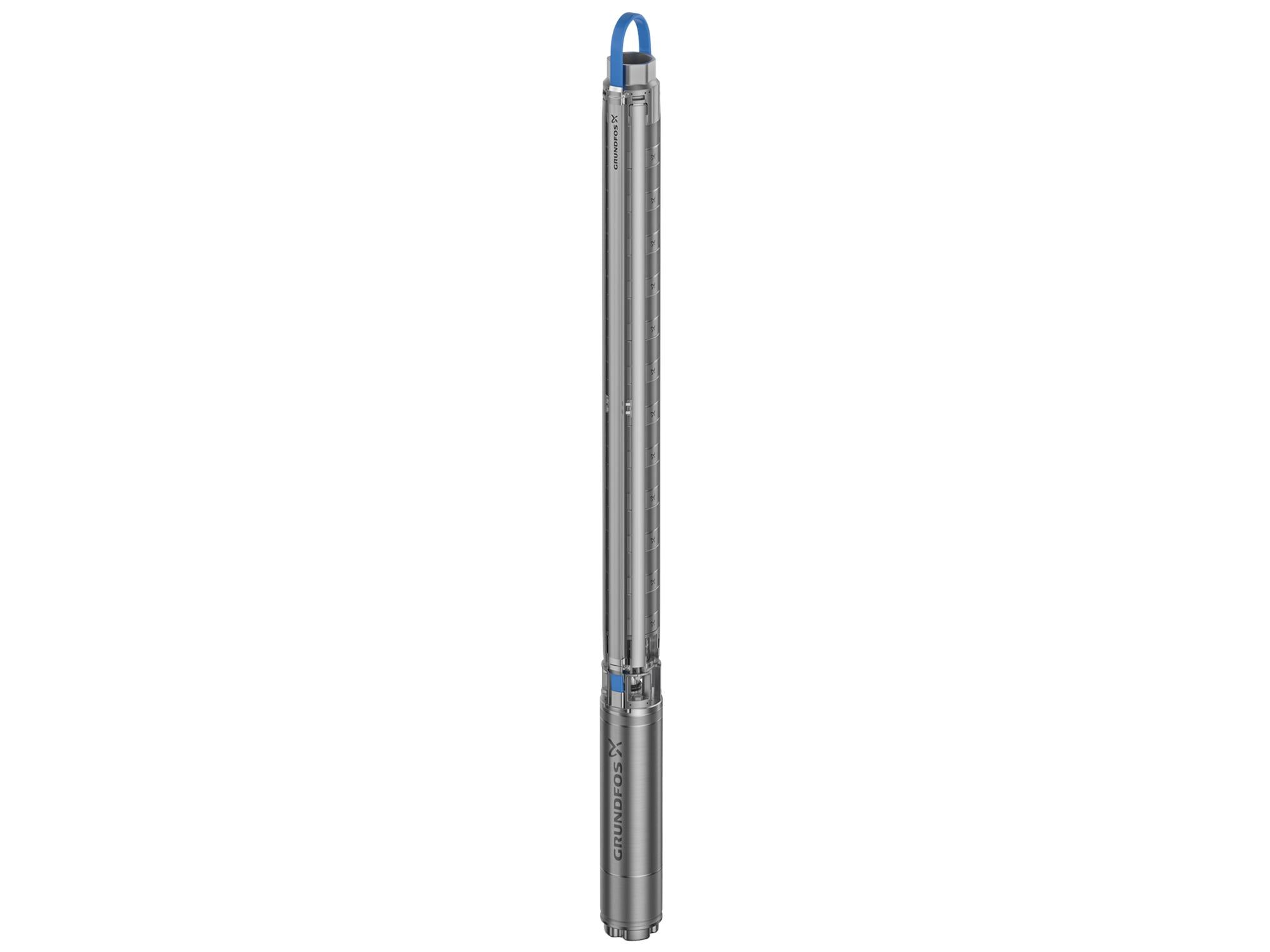

This submersible groundwater pump is part of a range designed for frequency-regulated operation in groundwater applications. It has a 6-inch size and operates at 3600 rpm, requiring a frequency drive for optimal performance. Constructed entirely from stainless steel, it offers high energy efficiency with its permanent magnet motor. Suitable for various agricultural and irrigation uses, including water treatment fertigation, chemigation, dosing, and digital groundwater management.
Specifications
Manufacturer | Grundfos |
---|---|
Part Number | 92673204 |
Pump speed on which pump data are based | 3600 rpm |
Rated flow | 159 US gpm |
Rated head | 833.4 ft |
Stages | 20 |
Number of reduced-diameter impellers | NONE |
Shaft seal for motor | SiC/SiC NBR |
Approvals | CULDWUS,CCSAUS |
Approvals for drinking water | PROP65 |
Curve tolerance | ISO9906:2012 3B |
Motor version | T60 |
Return valve | YES |
Pump | Stainless steel, EN 1.4301, AISI 304 |
Impeller | Stainless steel, EN 1.4301, AISI 304 |
Motor | Stainless steel, EN 1.4301, AISI 304 |
Maximum operating pressure | 870.23 psi |
Maximum outlet pressure | 504.73 psi |
Type of connection | NPT(F) |
Size of connection | 3 inch |
Motor diameter | 6 inch |
Pumped liquid | Water |
Liquid temperature range | 5 .. 140 °F |
Selected liquid temperature | 68 °F |
Density | 62.29 lb/ft³ |
Motor type | PM |
Motor flange design | Grundfos |
Rated power - P2 | 40 HP |
Power (P2) required by pump | 40.2 HP |
Main frequency | 60 Hz |
Rated voltage | 3 x 410-480 V |
Motor frequency | 120 Hz |
Service factor | 1.15 |
Rated current | 52.6 A |
Rated speed | 1650-3600 rpm |
Motor efficiency at full load | 93.1 % |
Number of poles | 4 |
Start. method | Direct-on-line (DOL) |
Enclosure class (IEC 34-5) | IP68 |
Insulation class (IEC 85) | F |
Built-in motor protection | NONE |
Thermal protec | external |
Built-in temperature transmitter | No |
Number of cables | 1 |
Windings | Enamelled |
Rpm related to frequency | 3600 rpm at 120 Hz |
Frequency converter | VFD IPM type required |
DOE Pump Energy Index CL | 0.91 |
Net weight | 241 lb |
Gross weight | 355 lb |
Shipping volume | 13.2 ft³ |
Sales region | Namreg |
Country of origin | US |
Custom tariff no. | 8413.70.21 |
Recommended CUE (IP20) | 99619021 |
Recommended Sine wave filter (IP20) | 92617589 |

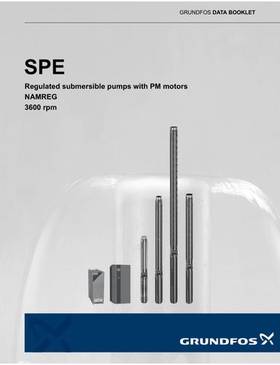

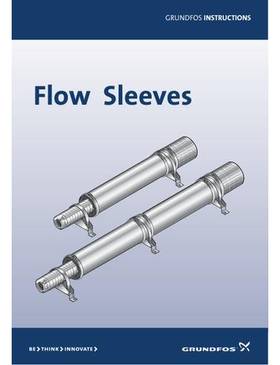

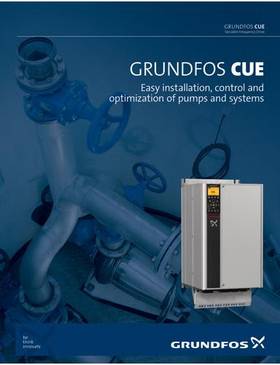

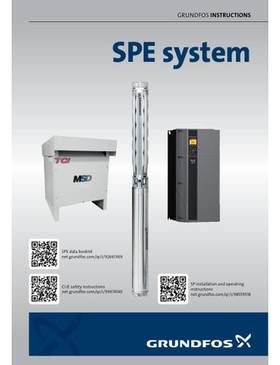

Documents
