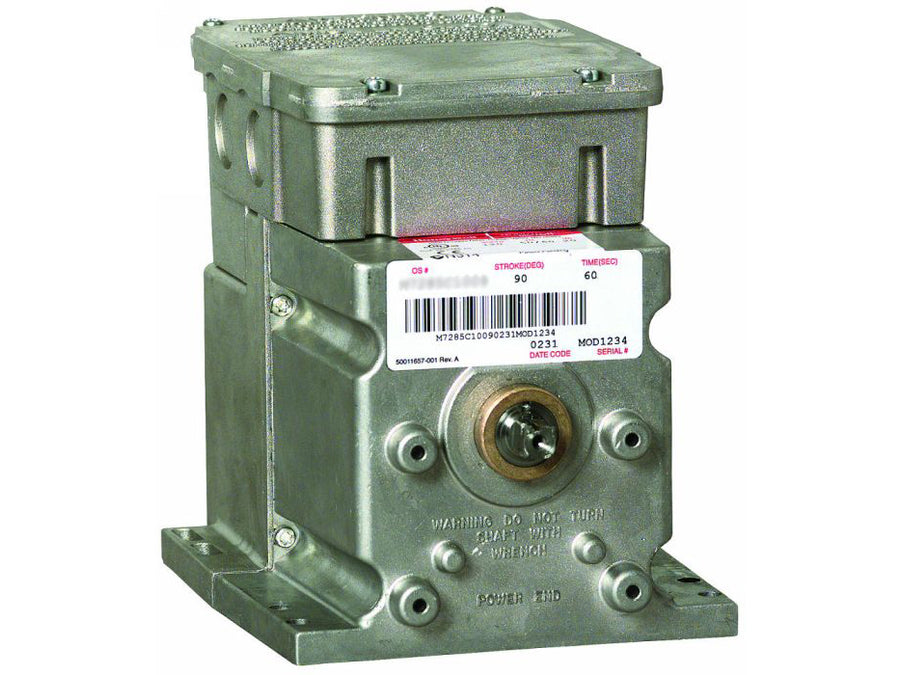

Honeywell Modutrol Actuator with Modulating Control M7285A1003

Modutrol motor, spring return, 60 lb-in, 120 Vac, modulating (4-20 mA), adjustable 90-160°, 30-60 s.

Series 71, 72, and 76 Modutrol IV™ Motors are spring return and non-spring return motors used to control dampers and valves. The motors accept a current or voltage signal from an electronic controller to position a damper or valve.

Features & Benefits:

• Replaces M734H/J,; M744ST/Y; and M745L/S/T/Y Motors
• M7164, M7261, M7284, and M7294 are non-spring return motors; M7282, M7285, M7286 and M7685 are spring return motors
• Integral spring return returns motor to normal position when power is interrupted
• Integral junction box provides NEMA 3 weather protection
• Motor and circuitry operate from 24V AC; models available with factory installed transformer, or a field added internal transformer
• Quick connect terminals are standard—screw terminal adaptor is available
• Adaptor bracket for matching shaft height of older motors is available
• Most motors have field adjustable stroke (90° to 160°)
• Die-cast aluminum housing
• Integral auxiliary switches are available factory mounted, or can be field added

Certifications:

• UL Listed: File No. E4436; Guide No. XAPX for USA and Canada
