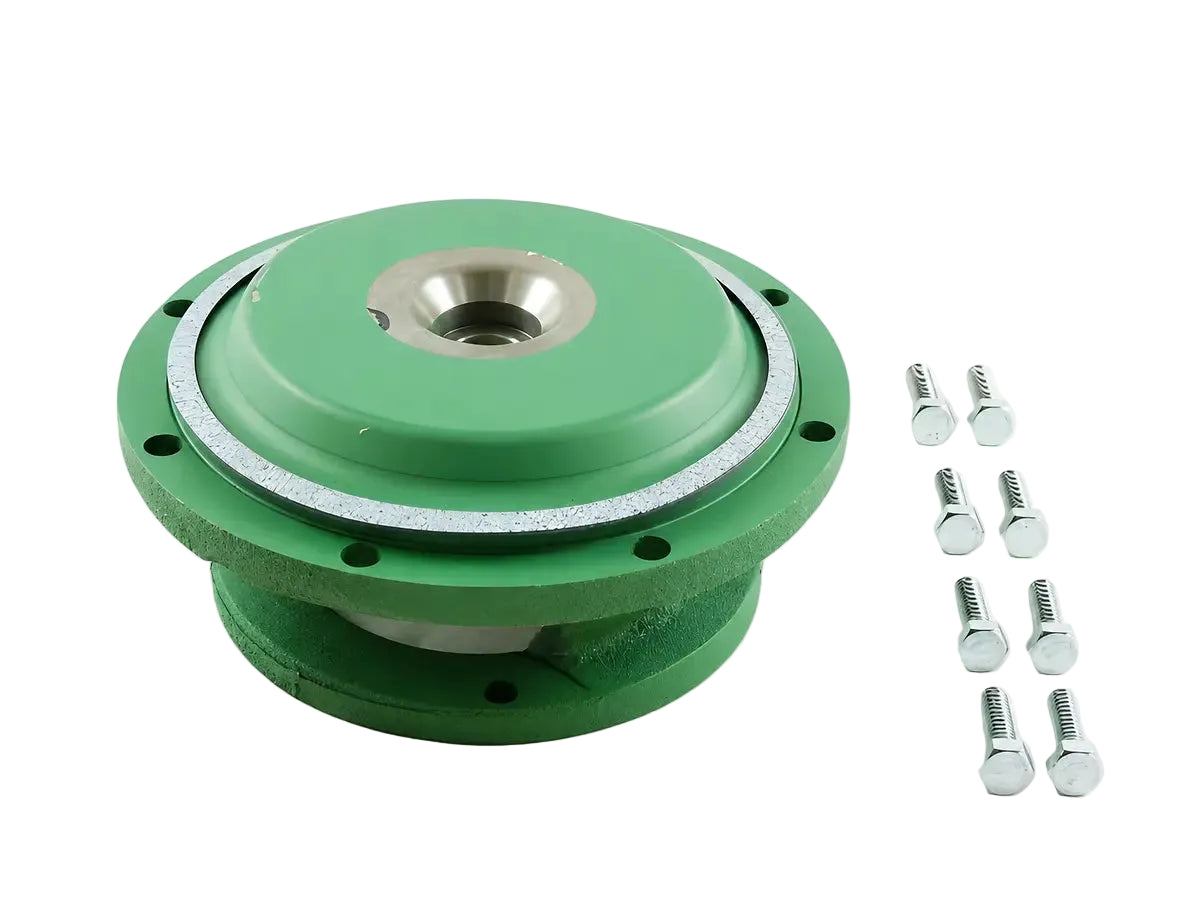

This close-coupled in-line pump has aligned 1.5" suction and discharge ports. The hydraulic assembly includes a 4.75" diameter impeller, constructed from stainless steel along with the casing and shaft. A cast iron bracket paired with a stainless steel face plate supports the assembly, while the seal uses a ceramic seat, carbon rotor, and EPT rubber. Built to Hydraulic Institute standards, the casing handles temperatures up to 250°F and is rated for 175 PSI. The unit can be installed in horizontal or vertical orientations and remains self-supported by system piping.
This unit includes a 5 HP, 3450 RPM ODP motor, configured for 230/460V, 3PH power. Maintenance-free operation is supported by permanently sealed, grease-lubricated motor ball bearings. Utilizing a rear pull-out design, the assembly permits complete removal of the motor and rotating components for servicing without disturbing the connected piping layout.
