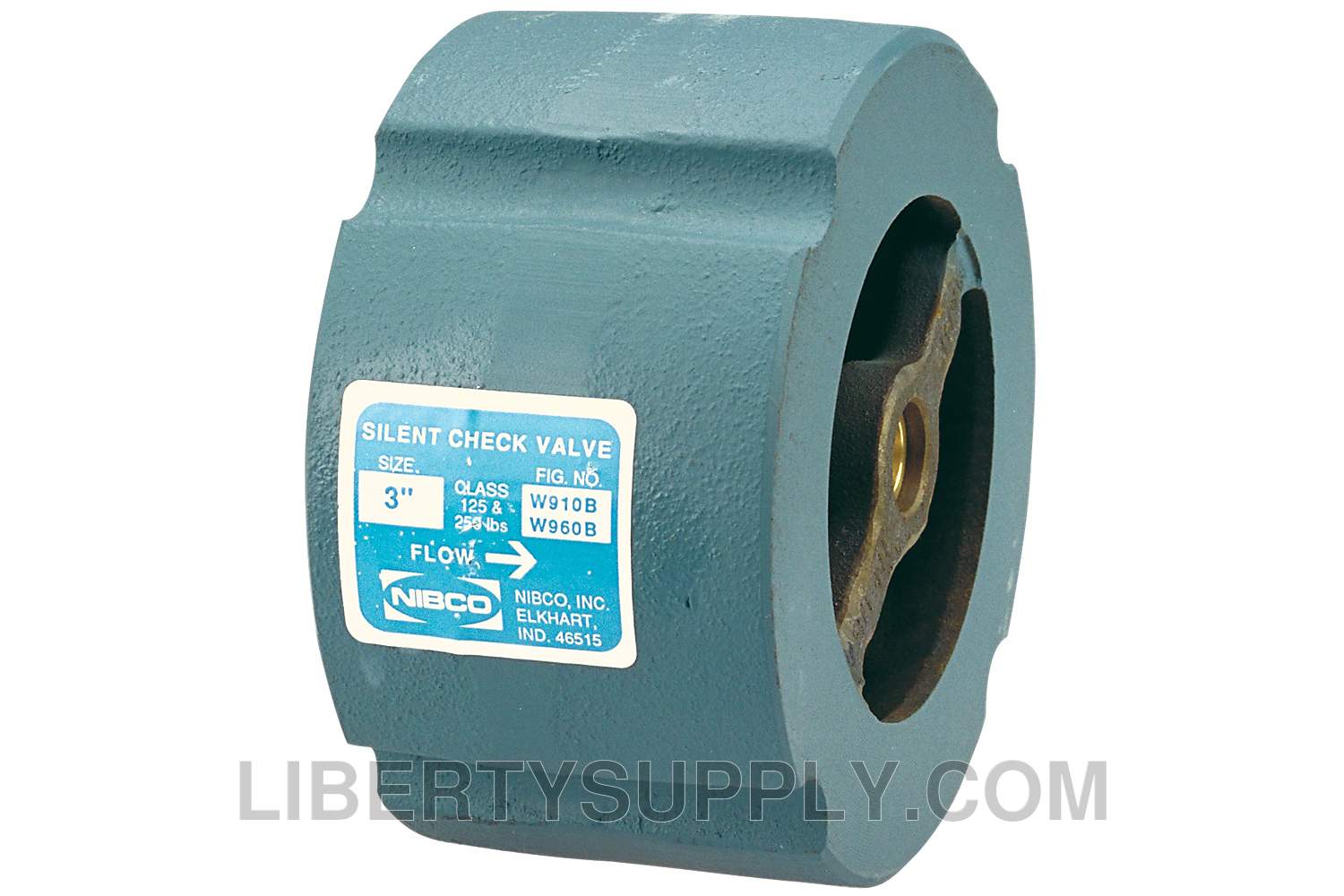

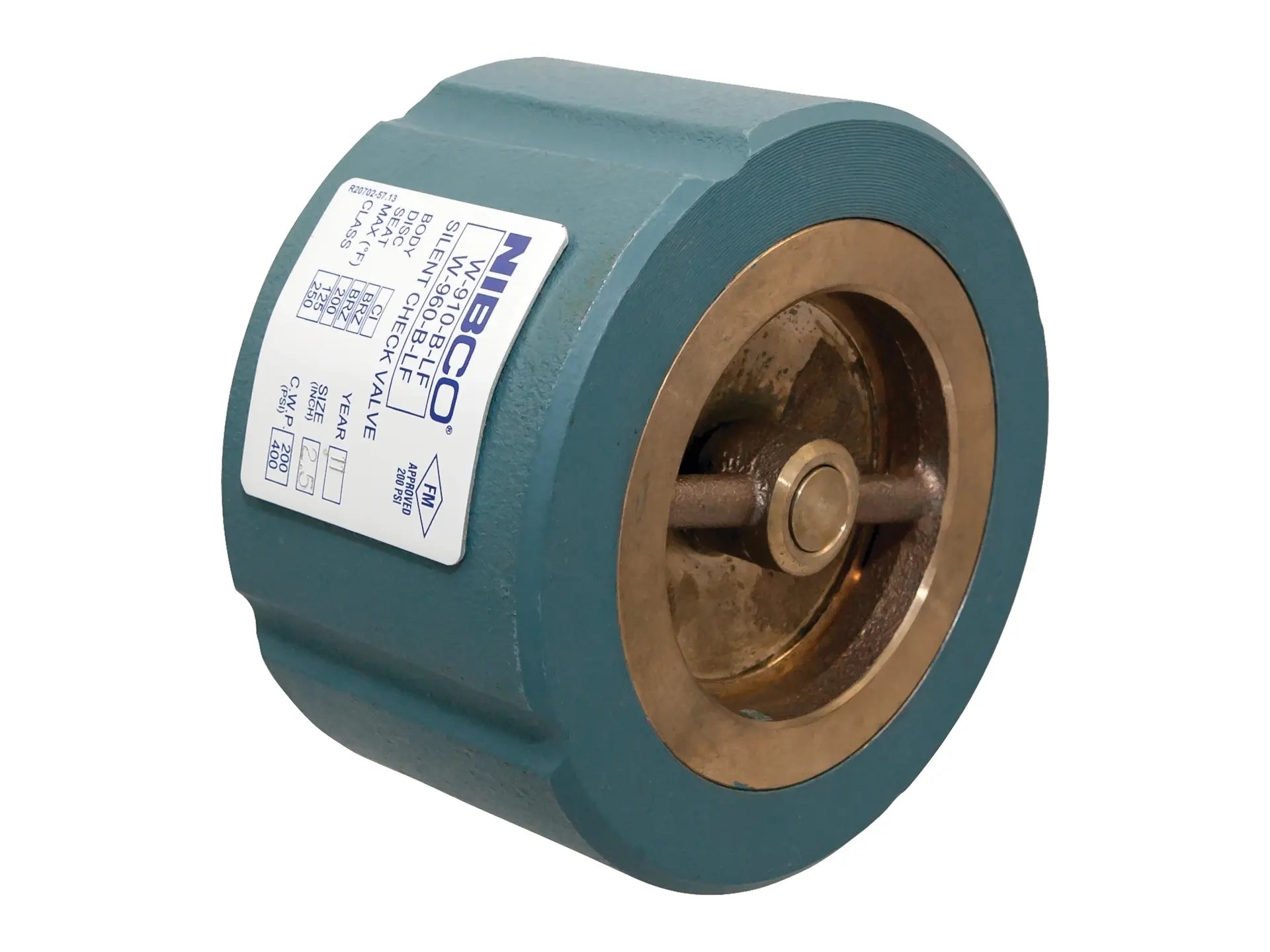

NIBCO W-910-B-LF 3" Wafer Inline LF Iron Check Valve NLN10XF

SKU: LSIRMIXQGP Part Number: NLN10XF Model: W-910-B-LF

Price:
Sale price$753.95 Regular price$1,311.00

Save 42% Call 844-448-0880 for large volume pricing

Stock:
Call or Chat for availability
 More payment options

Description

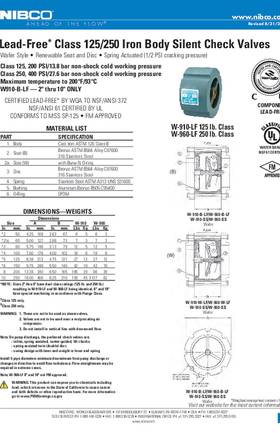

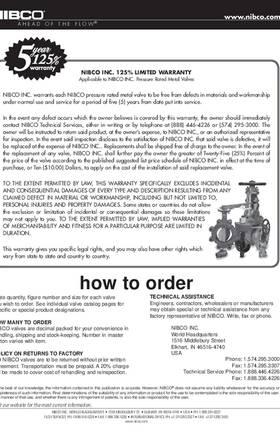

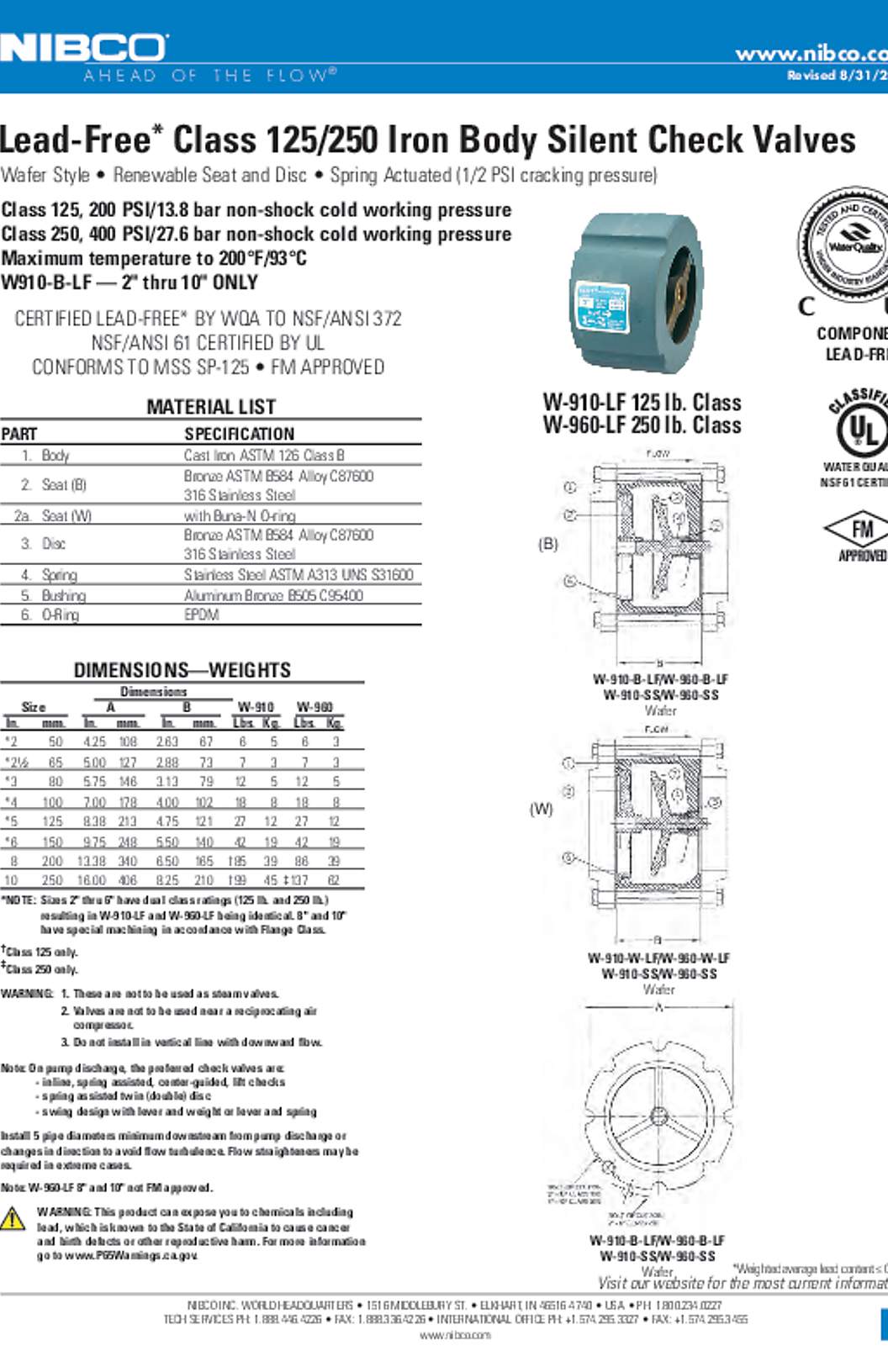

This NIBCO lead-free cast iron sliding disc check valve is wafer style to fit between standard flanges. Wafer checks may be installed in horizontal positions (or vertical with flow moving up). Please refer to NIBCO technical data sheets, chemical resistance guides and catalogs for engineering and installation information. Choose NIBCO check valves for the most specified, versatile and economical valve option in commercial, mechanical and industrial applications. NIBCO valves are backed by the NIBCO 5-year 125% limited warranty.

Features

  • Valve pressure rating 200 psi/13.8 bar non-shock cold working pressure
  • Maximum temperature 200°F/93°C
  • Renewable bronze seat and disc
  • Spring actuated (1/2 psi cracking pressure)
  • Class 125 wafer end connections
  • Lead-free
  • Conforms to MSS SP-125
  • FM approved
  • NSF/ANSI 61 and NSF/ANSI 372

Specifications

Manufacturer NIBCO
Part Number NLN10XF
Model W-910-B-LF
Type of Valve Check
Series W-910-B-LF
Type of Check Valve Inline
Nominal Pipe Size 3"
End Connection Type W -- Wafer
Material Cast Iron
Seat Seal Material Bronze
Turns Operations Non-Manual
UPC Code 039923326935
Length 5.75"
Width 5.75"
Height 3.13"
Country of Origin US
Potable Water Code LL Compliant NSF/ANSI 372
CA Proposition 65 Warning Statement WARNING: This product can expose you to chemicals including Lead, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov.

About NIBCO

NIBCO is a recognized manufacturer and brand leader of valves, fittings, and flow-control products.
