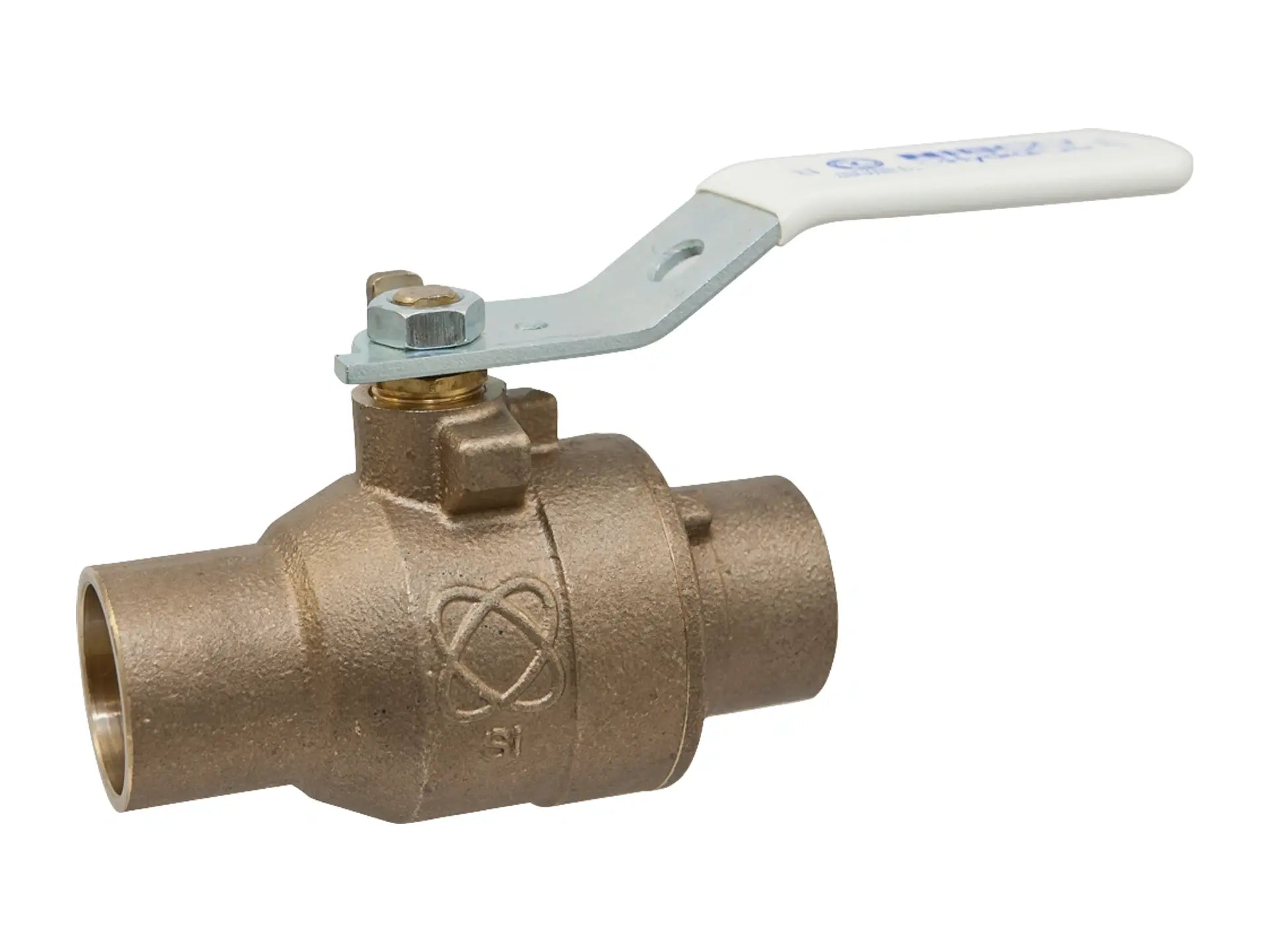

This NIBCO ball valve is made of lead-free Silicon Performance Bronze alloy and has achieved the stringent NSF/ANSI/CAN 61 section 8 (Commercial Hot) and NSF/ANSI/CAN 372 listings. The two-piece valve provides bubble-tight shutoff at 600 PSI and is dezincification resistant. The ball valve includes reinforced PTFE seat rings with silicon bronze stem and ball, and is ideal for use in applications that deliver water for human consumption including residential and commercial construction. This NIBCO bronze ball valve provides ease of operation with quarter-turn (90°) open to close. The two-piece valve features solder ends for easy installation.
Valve pressure rating 600 psi 41.4 bar non-shock cold working pressure
Max temperature rating 300°F
Silicon Performance Bronze® body, ball and stem
Standard lever handle, optional NIB-SEAL®, Locking Lever, Memory Stop, Extended Lever, Round and Wing
NIBCO® HydraPure® Lead-free
Solder end connections
Conforms to MSS SP-110
Old Material Number
Type of Valve
Nominal Pipe Size
End Connection Type
Female Solder Cup
Potable Water Code
LL Compliant NSF/ANSI 372
Ball Port Style
Ball Stem Material
CS Extended Lever Handle
Seat Seal Material
Country of Origin
CA Proposition 65 Warning Statement
WARNING: This product can expose you to chemicals including Lead, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov.
Notes and Disclaimer
Performance Bronze® is a registered trademark of NIBCO INC. NIBSEAL® is a registered trademark of NIBCO INC.
NIBCO is a recognized manufacturer and brand leader of valves, fittings, and flow-control products.
