Description

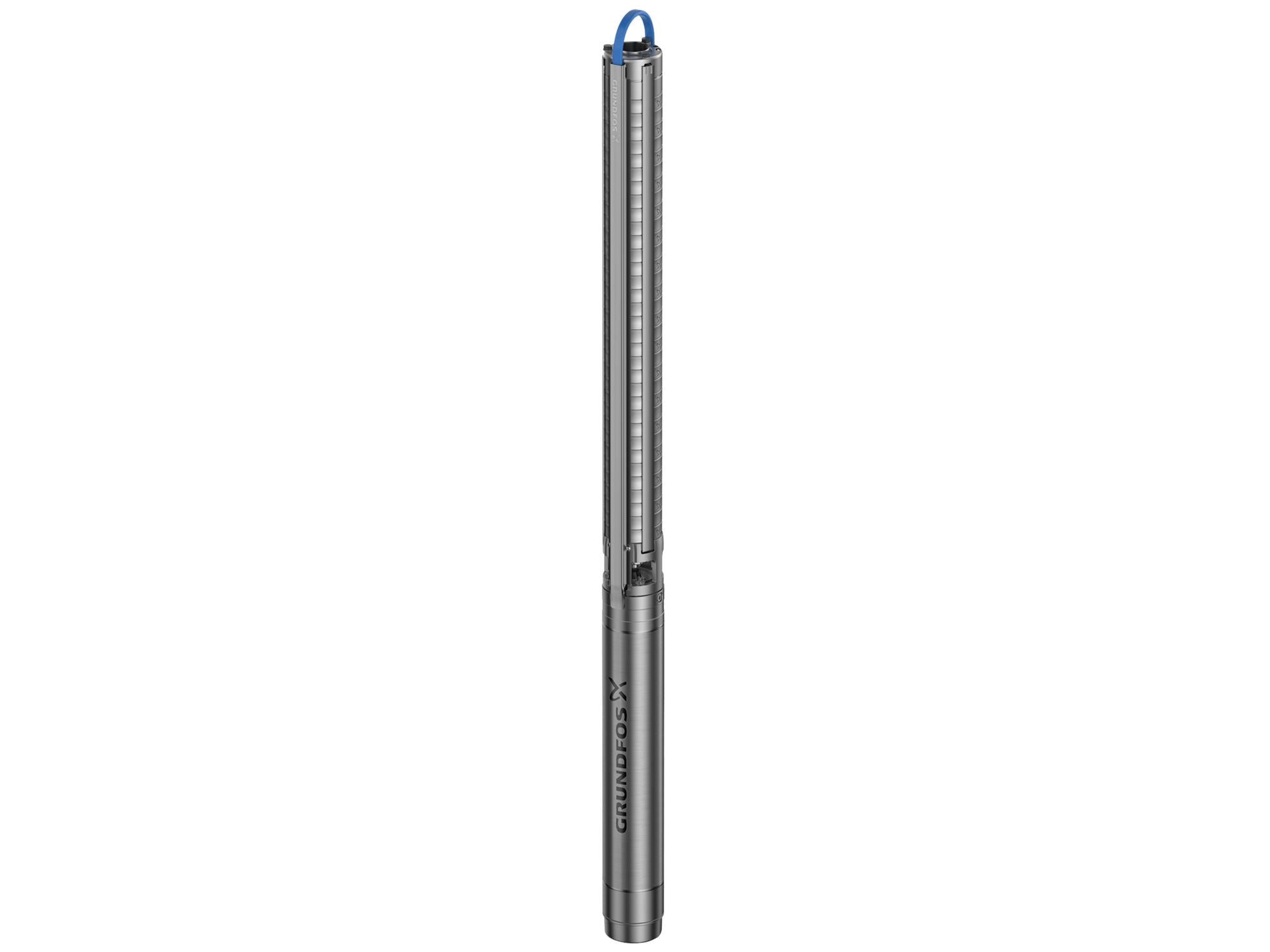

This submersible pump is constructed from stainless steel, including EN 1.4301 (AISI 304), EN 1.4401 (AISI 316), and EN 1.4539 (AISI 904L) materials. It is suitable for applications such as groundwater extraction, irrigation, mining, fountains, and off-shore operations.
Specifications
Manufacturer | Grundfos |
---|---|
Part Number | 51536155 |
Pump speed on which pump data are based | 3450 rpm |
Rated flow | 26.4 US gpm |
Rated head | 324.8 ft |
Stages | 15 |
Number of reduced-diameter impellers | NONE |
Approvals | CULDWUS,CCSAUS |
Approvals for motor | CCSAUS,C_UL_US_NSF372 |
Approvals for drinking water | PROP65 |
Curve tolerance | ISO9906:2012 3B |
Pump Number | 05010015 |
Motor version | T40 |
Return valve | YES |
Specification for shaft end | SPLINE |
Pump | Stainless steel, EN 1.4301, AISI 304 |
Impeller | Stainless steel, EN 1.4301, AISI 304 |
Motor | Stainless steel, EN 1.4301, AISI 304 |
Shaft seal | HM/Ceramics |
Maximum ambient pressure | 870.23 psi |
Maximum operating pressure | 870.23 psi |
Maximum outlet pressure | 204.5 psi |
Type of connection | NPT(F) |
Size of connection | 1 1/2 inch |
Motor diameter | 4 inch |
Minimum borehole diameter | 4.13 in |
Pumped liquid | Water |
Liquid temperature range | 5 .. 104 °F |
Selected liquid temperature | 68 °F |
Density | 62.29 lb/ft³ |
Motor type | MS4000 |
Motor flange design | Grundfos |
Rated power - P2 | 3 HP |
Power (P2) required by pump | 3 HP |
KVA code | J |
Main frequency | 60 Hz |
Rated voltage | 3 x 440-460 V |
Service factor | 1.15 |
Rated current | 5.3-5.5 A |
Starting current | 500-510 % |
Cos phi - power factor | 0.76-0.74 |
Rated speed | 3470-3480 rpm |
Maximum axial load | 992 lb |
Start. method | Direct-on-line (DOL) |
Enclosure class (IEC 34-5) | IP68 |
Insulation class (IEC 85) | F |
Built-in motor protection | NONE |
Thermal protection | External |
Built-in temperature transmitter | No |
Length of cable | 8.2 ft |
Power cable type | ROUND SINGLE |
Cable number | 99412580 |
Windings | Enameled |
Minimum efficiency index, MEI ≥ | 0.50 |
DOE Pump Energy Index CL | 0.93 |
Net weight | 53.1 lb |
Gross weight | 59.1 lb |
Shipping volume | 0.99 ft³ |
Country of origin | MX |
Custom tariff no. | 8413.70.2004 |
