Grundfos 96081412, CRI 1S-8 A-FGJ-A-E-HQQE Vertical Multistage Pump

Roll over image to zoom in Click on image to zoom

Grundfos 96081412, CRI 1S-8 A-FGJ-A-E-HQQE Vertical Multistage Pump

Name: Grundfos 96081412, CRI 1S-8 A-FGJ-A-E-HQQE Vertical Multistage Pump
Brand: Grundfos
SKU: LSIRZ9H7AO
Price: 1974.95 USD
Availability: OutOfStock

SKU: LSIRZ9H7AO Part Number: 96081412

Price:

$1,974.95 $2,947.00

Save 33% Call 844-448-0880 for large volume pricing

Stock:

Obsolete

Quantity:

This vertical multistage centrifugal pump has suction and discharge ports on the same level, with materials in contact with the liquid made of stainless steel (EN 1.4301). It is suitable for applications such as water treatment fertigation, chemigation, dosing, controls and digital groundwater management, as well as drip, micro spray, and soaker hose irrigation.

Manufacturer	Grundfos
Part Number	96081412
Rated pump speed	3443 rpm
Rated flow	4.84 US gpm
Rated head	147.3 ft
Maximum head	220.5 ft
Stages	8
Impellers	8
Number of reduced-diameter impellers	0
Low NPSH	N
Pump orientation	Vertical
Shaft seal arrangement	Single
Code for shaft seal	HQQE
Approvals	CURUS
Approvals for drinking water	NSF61
Curve tolerance	ISO9906:2012 3B
Pump version	A
Cooling	TEFC
Base	Stainless steel, EN 1.4408, AISI 316
Impeller	Stainless steel, EN 1.4301, AISI 304
Material code	A
Code for rubber	E
Bearing	SIC
Maximum ambient temperature	104 °F
Maximum operating pressure	362.59 psi
Max pressure at stated temperature	363 psi / 250 °F, 363 psi / -4 °F
Type of connection	DIN / ANSI / JIS
Size of inlet connection	DN 25/32
Size of outlet connection	DN 25/32
Pressure rating for connection	PN 25
Flange rating inlet	300 lb
Flange size for motor	56C
Connect code	FGJ
Pumped liquid	Water
Liquid temperature range	-4 .. 248 °F
Selected liquid temperature	68 °F
Density	62.29 lb/ft³
Motor standard	NEMA
Motor type	BALDOR
Rated power - P2	0.5 HP
Power (P2) required by pump	0.5 HP
Main frequency	60 Hz
Rated voltage	1 x 115/230 V
Service factor	1.60
Rated current	7.4/3.7 A
Full load SF current	9.8/4.9 A
Rated speed	3450 rpm
IE efficiency	62%
Motor efficiency at full load	62 %
Number of poles	2
Enclosure class (IEC 34-5)	IP54
Insulation class (IEC 85)	B
Frequency converter	None
Net weight	61.6 lb
Gross weight	72.6 lb
Shipping volume	6.11 ft³

CR, CRI, CRN 1, 1S, 3 & 5 (Dismantling & Reassembly) (Service Manual)

CR Reading the Pump Nameplate

CR, CRI, CRN - Vertical multistage centrifugal pumps (Data booklet)

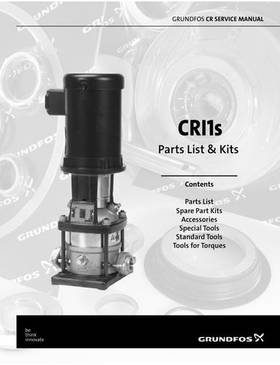

CRI1s (Service Manual - Parts List & Kits)
