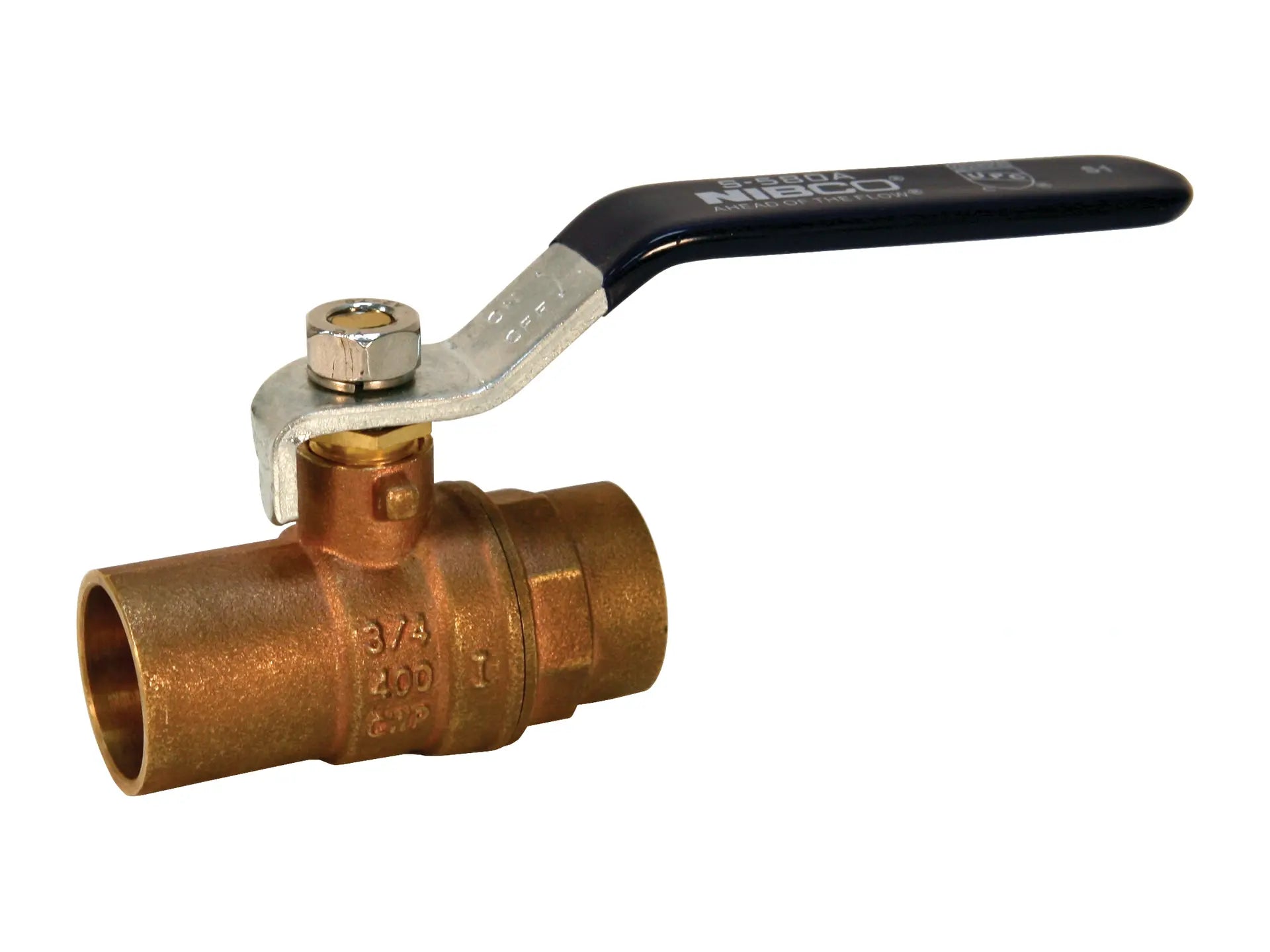

NIBCO S-580-A 3/4" FSC Brass Ball Valve NJ96008

SKU: LSIS593DOW Part Number: NJ96008 Model: S-580-A

Price:
Sale price$31.95 Regular price$42.49

Save 25% Call 844-448-0880 for large volume pricing

Stock:
Typically Stocked - Call or Chat to confirm
 More payment options

Description

This NIBCO brass ball valve with threaded end connections provides bubble-tight shutoff at 400 psi. The valve's PTFE seat ring and hard chrome-plated brass ball exhibit high chemical resistance properties. The valve is ideal for hot/cold water and gas applications. This NIBCO brass ball valve provides ease of operation with quarter-turn (90°) open to close. The two-piece valve features solder end connections for easy installation. Please refer to NIBCO technical data sheet, valve selection guide and catalog for engineering and installation information. Choose NIBCO ball valves for the most specified, versatile and economical valve option in commercial and residential applications. NIBCO specialty valves are backed by a NIBCO INC. 2-year limited warranty.

Features

  • Valve pressure rating 400 psi/28 bar non-shock cold working pressure
  • Standard port
  • Chrome-plated brass ball and brass stem
  • Blowout-proof stem
  • Standard lever handle
  • Solder end connections
  • Use in U.S. drinking water applications is prohibited after January 3, 2014

Specifications

Manufacturer NIBCO
Part Number NJ96008
Model S-580-A
Series S-580-A
Type of Valve Ball
Nominal Pipe Size 3/4"
End Connection Type S -- Female Solder Cup
Material Brass
Ball Body Type Two-Piece
Ball Operator CS Standard Lever Handle
Ball Port Style Conventional Port
Ball Stem Material BRS - Brass Ball and Stem
Seat Seal Material PTFE
Turns Operations Quarter-Turn
Pressure Rating (CWP) 400 psi/27.6 Bar CWP
Potable Water Code Not LL Comp not intend potable
UPC Code 039923295668
Length 5.2"
Width 2.5"
Height 1.6"
Country of Origin CN
CA Proposition 65 Warning Statement WARNING: This product can expose you to chemicals including Lead, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov.

About NIBCO

NIBCO is a recognized manufacturer and brand leader of valves, fittings, and flow-control products.
