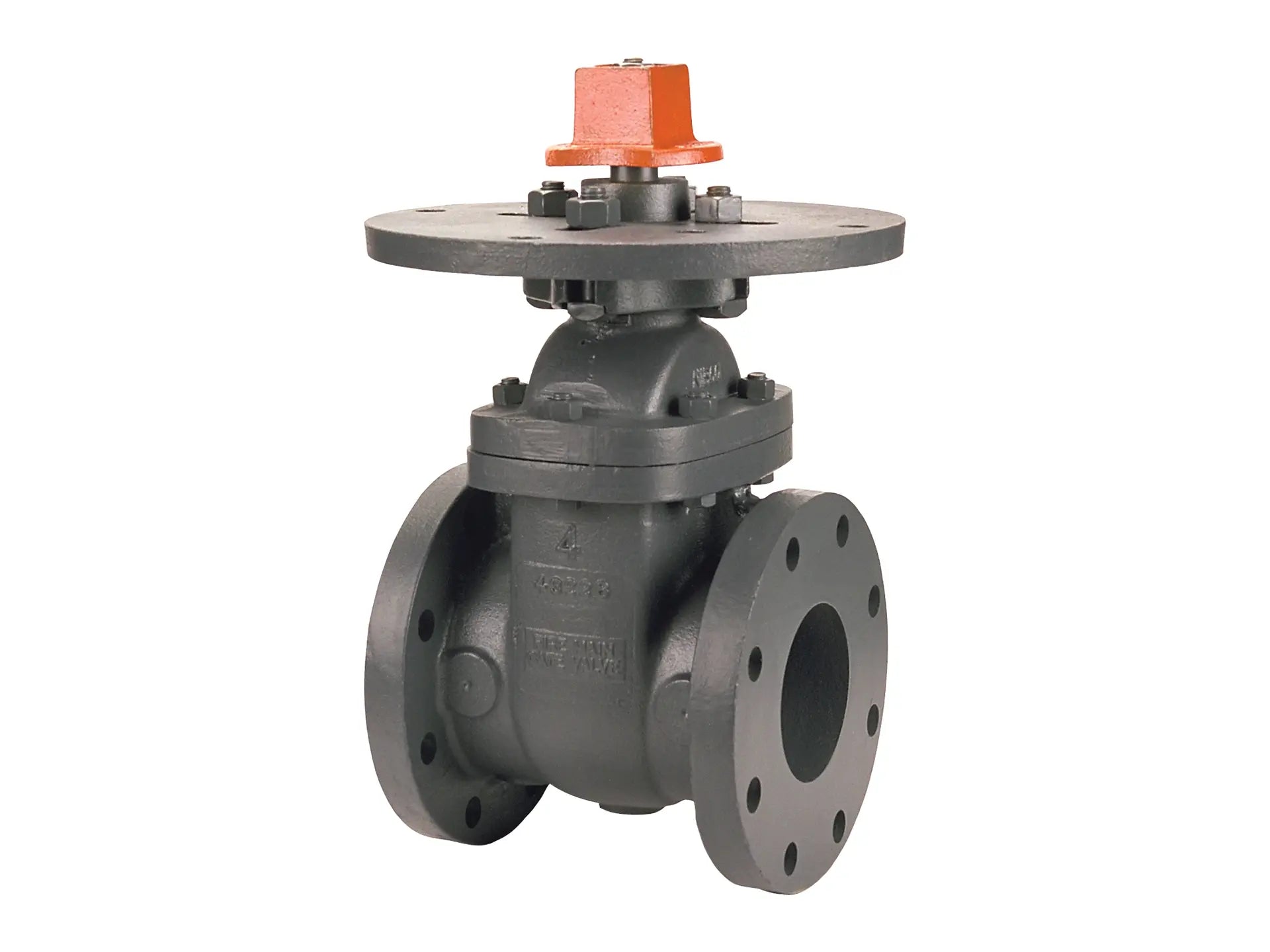

NIBCO F-609 4" Flgd Cast Iron Gate Valve NH5000H

SKU: LSIS74HGEJ Part Number: NH5000H Model: F-609

Price:
Sale price$1,148.95 Regular price$2,297.00

Save 50% Call 844-448-0880 for large volume pricing

Stock:
Typically Stocked - Call or Chat to confirm
 More payment options

Description

This NIBCO cast iron 175 water working pressure (WWP) gate valve provides full flow with minimal pressure drop. The flanged cast iron gate valve is recommended as a system control valve to be used in conjunction with vertical or wall indicator posts. This NIBCO cast iron gate valve features a Class 125 flanged, flat face end connection for easy installation and accessibility. These valves are Underwriters Listed and FM Approved for fire protection systems as system control valves. Please refer to NIBCO technical data sheets, chemical resistance guides and catalogs for engineering and installation information. Choose NIBCO gate valves for the most specified, versatile and economical valve option in commercial, mechanical, fire protection and industrial applications. NIBCO pressure rated valves are backed by the NIBCO 5-year 125% limited warranty.

Features

  • 175 psi/12.1 bar non-shock water working pressure (WWP)
  • Bolted bonnet
  • Solid wedge
  • Iron body, bronze mounted trim (IBBM)
  • Class 125 flanged or mechanical joint end connection
  • Use in U.S. drinking water applications is prohibited after January 3, 2014
  • Listed by UL/ULC (UL262) Canadian ULC/ORD-C262
  • FM Approved

Specifications

Manufacturer NIBCO
Part Number NH5000H
Model F-609
Type of Valve Gate
Nominal Pipe Size 4"
End Connection Type F -- Flanged
Seat Seal Material Bronze
Gate Stem Design Non-Rising Stem
Turns Operations Multi-Turn
Multi-Turn Operator Square Operating Nut
Multi-Turn Bonnet Design Bolted Bonnet
Pressure Rating (WWP) 175 psi/12.1 Bar WWP
Material Cast Iron
Potable Water Code Not LL Comp not intend potable
UPC Code 039923695888
Length 18.63"
Width 12.01"
Height 12.01"
Country of Origin US
CA Proposition 65 Warning Statement WARNING: This product can expose you to chemicals including Lead, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov.

About NIBCO

NIBCO is a recognized manufacturer and brand leader of valves, fittings, and flow-control products.
