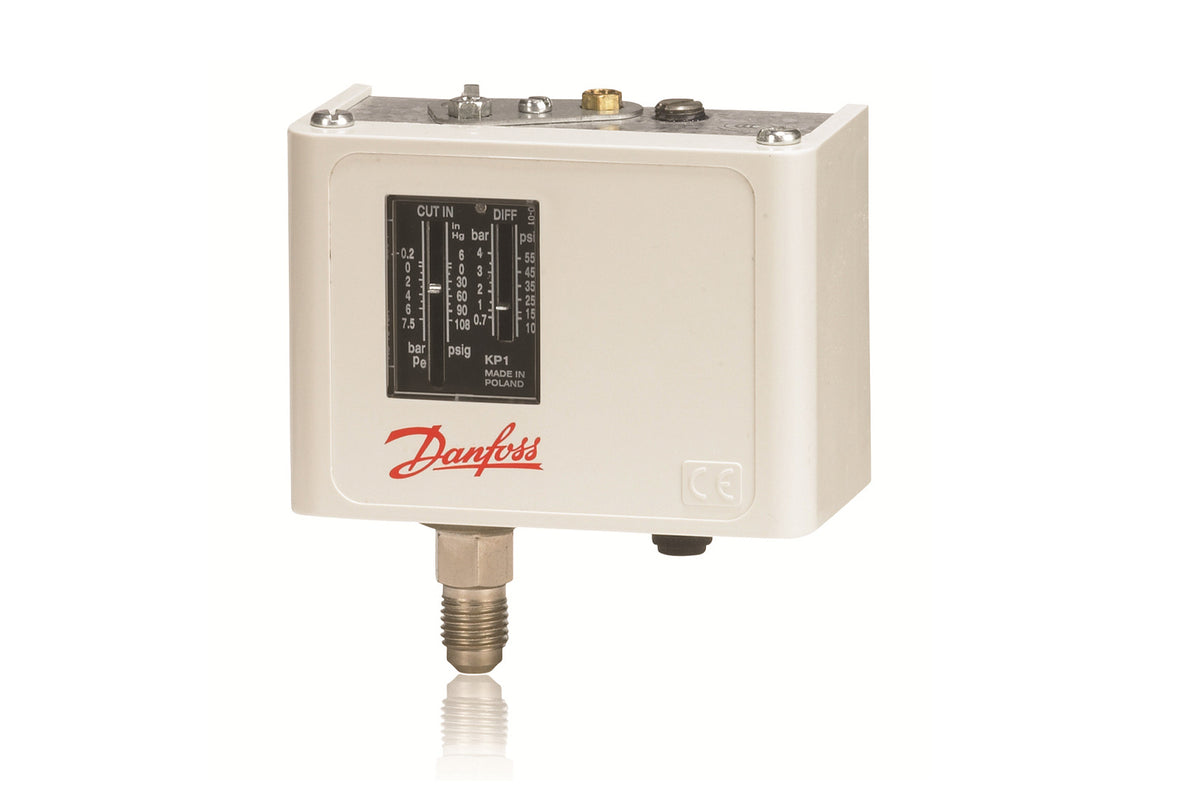

80°C/176°F for max 120 min |
Ambient temperature range [°C] [max] |
65°C |
Ambient temperature range [°C] [min] |
-25°C |
Ambient temperature range [°F] [Max] |
149°F |
Ambient temperature range [°F] [Min] |
-13°F |
Application note |
Not applicable for liquid line |
Approval |
BV, CCC, CE, DNV, EAC, GL, LLC CDC EURO-TYSK, LR, LVD, PED, PZH, RINA, RMRS, RoHS China, UKCA, c UL us UL353, CS C22.2, c UL us UL873, CS C22.2 |
Contact function |
SPDT |
Contact rating |
120Vac,16FLA,96LRA,3APilotDuty, 16 A resistive, single phase, 240 V AC, 8 FLA, 48 LRA, 240V dc,12W pilot duty(0.05 A), 8 A resistive, single phase |
Differential [bar] [Max] |
4 bar |
Differential [bar] [Min] |
0.7 bar |
Differential [psi] [Max] |
58 psi |
Differential [psi] [Min] |
10 psi |
Electrical conn. Male/Female |
Female |
Electrical connection |
Swivel cable connector |
Electrical connection size |
NPSM 1/2 - 14 |
EN 60947 electrical properties |
Insulation: 400V, Pollution degree: 3, Rated impulse voltage: 4 kV, Short circuit prot, fuse: 16A |
EN 60947 wiring properties |
Flex, ferrules: 0.5-1.5 mm2, Flex, no ferrules: 0.7-2.5 mm2, Solid/stranded: 0.75-2.5 mm2 |
Enclosure rating IP |
IP30 |
Enclosure rating Nema (~) |
1 |
Lubricants compatibility |
Oilfree applications |
Max. test pressure [bar] Pe |
20 bar |
Max. test pressure [psig]
|
290 psig |
Max. Working Pressure [bar] |
17 bar |
Max. Working Pressure [psig] |
245 psig |
Oil free refrigerants |
R134a, R513A, R515B |
Pressure connection size |
1/4" |
Pressure connection standard |
DIN 8906 |
Pressure connection type |
Flare |
Pressure Male/Female |
Male |
Pressure sensing element |
Bellows |
REACH Candidate List substances |
Lead (CAS no. 7439-92-1) |
Refrigerants |
R113, R124, R134a, R22, R404A, R407A, R407C, R407F, R407H, R422B, R422D, R438A, R448A, R449A, R449B, R450A, R452A, R507A, R513A, R515B |
Regulation range |
6 inHg - 108 psig |
Regulation range [bar] Pe [Max] |
7.5 bar |
Regulation range [bar] Pe [Min] |
-0.2 bar |
Reset function |
Auto |
Serviceable |
No |
UL approved refrigerants |
R113, R124, R134a, R22, R404A, R407A, R407C, R407F, R407H, R422B, R422D, R438A, R448A, R449A, R449B, R450A, R452A, R507A, R513A, R515B |
