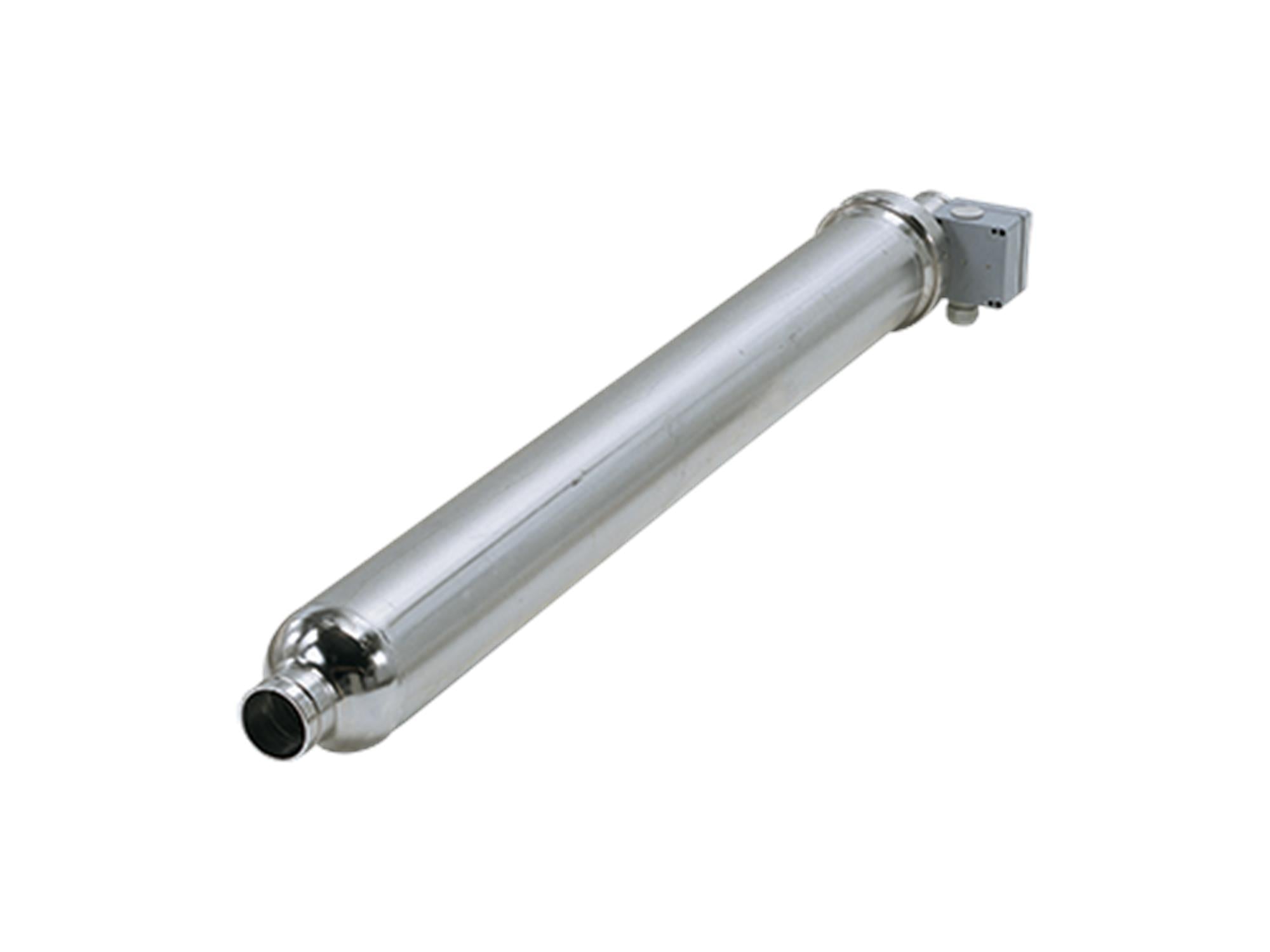

This high pressure booster module is used for boosting and liquid circulation in systems under a high static pressure.
Specifications
Manufacturer
Grundfos
Part Number
96293300
Rated flow
704 US gpm
Rated head
65.62 ft
Stages
1
Curve tolerance
ISO9906:2012 3B
Pump
Stainless steel, DIN W.-Nr. 1.4539, AISI 904L
Impeller
Stainless steel, EN 1.4539, AISI 904L
Motor
Stainless steel, DIN W.-Nr. 1.4539, AISI 904L
Code for rubber
NBR
Sleeve
Stainless steel, SAF 2205, EN 1.4462
Maximum operating pressure
1199.46 psi
Maximum permissible inlet pressure
1189.31 psi
Maximum outlet pressure
1189.31 psi
Pipe connection standard
PJE
Pipe connection
168 mm
Pumped liquid
Water
Maximum liquid temperature
104 °F
Selected liquid temperature
68 °F
Density
62.29 lb/ft³
Rated power - P2
17.5 HP
Main frequency
50 Hz
Rated voltage
3 x 380-415 V
Service factor
1.0
Rated current
30.0-29.0 A
Rated speed
2840-2870-2880 rpm
Start. method
DOL
Enclosure class (IEC 34-5)
IP66
Minimum efficiency index, MEI ≥
-.--
Net weight
190 lb
Gross weight
356 lb
