Please note this item is assembled to order and additional lead-times may apply.

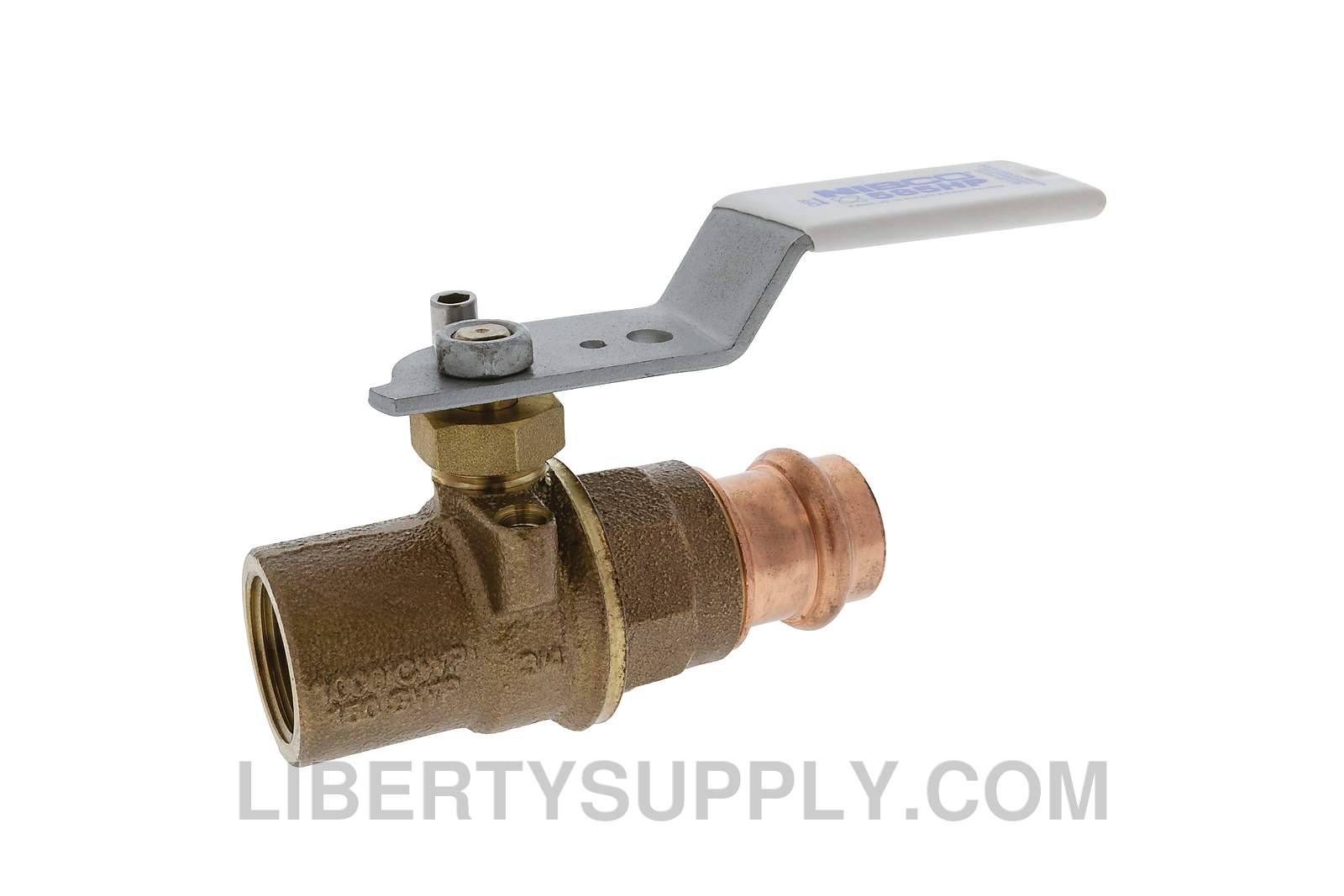

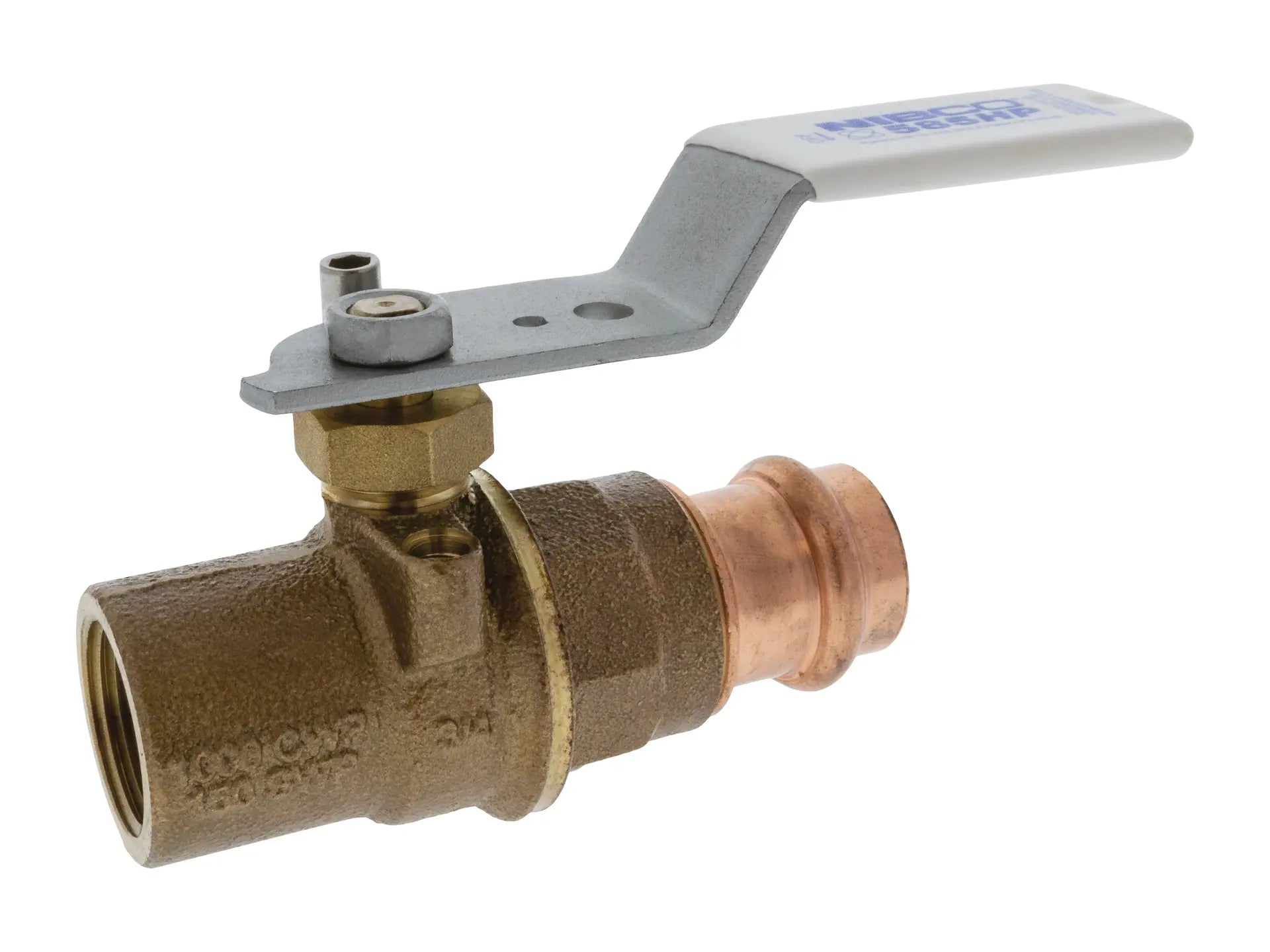

The 585HP is on the cutting edge of manufacturing technology, ease of installation, and highest quality standards. The Classic Ball Valve has been completely rethought and redesigned to enhance the user experience and incorporate advances in assembly technology. NIBCO has created the most advanced commercial ball valve on the market today. The valve is laser-welded to create an incredibly strong joint between the body and body-end piece, eliminating a potential leak path. NIBCO engineers have redesigned the top works of the valve to make it easier to install and service. The stem is triple sealed with double O-rings and PTFE packing. The easily accessible, large pack nut can be tightened without removing the handle or using a special wrench. This also allows for the packing to be replaced and serviced. The handle is reversible without disconnecting the valve.585HP ball valve features Thread x Press ends for easy transition and end connections. Please refer to NIBCO technical data sheet, valve selection guides and catalog for engineering and installation information. When performance matters, choose This NIBCO 585HP ball valves for the most advanced and versatile valve option in commercial, residential, mechanical and industrial applications. NIBCO ball valves are backed by the industry leading NIBCO INC. 10-year 125% limited warranty.
Features
- Valve pressure rating 250 psi/17.2 bar non-shock cold working pressure
- Maximum service temperature 250°F
- Female NPT x Press connections
- Full port
- Laser Welded
- Reversible Handle
- Easily Adjustable Pack Nut
- Silicon Performance Bronze® Body
- Lead Free Brass Ball and Stem
- Triple Sealed Stem
- Blowout-proof Stem
- Reinforced PTFE Seat Rings
- Lead-free
- Press leak-detection feature
- Multiple handle options, including NIB-Seal®
- Dezincification resistant
- Conforms to MSS SP-110
- Conforms to MSS SP-145
- NSF/ANSI-372
- IAPMO/ANSI Z1157
