Description

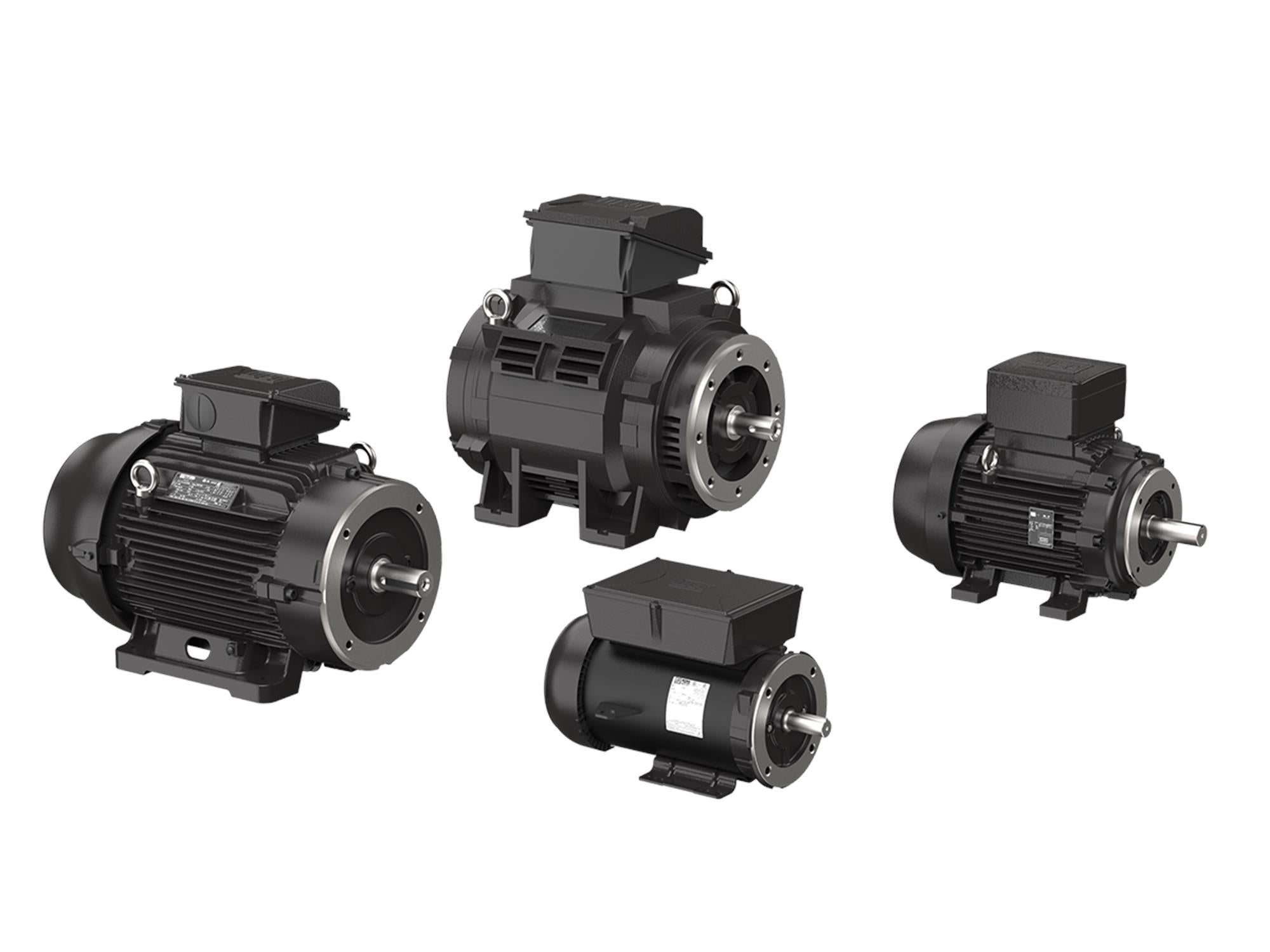

This motor is a WEG 364/5TSC model with a 3x230/460 voltage configuration, designed for standard applications. It operates at 60 horsepower and has a four-pole design, suitable for various industrial uses.
Specifications
| Manufacturer | Grundfos |
|---|---|
| Part Number | 99887835 |
| Shaft diameter | 1.87 in |
| Length of shaft end | 3.75 in |
| Approvals for motor | cURus/cCSAus |
| Exp. approval | NEC Ex |
| Energy approvals for motor | CC, |
| Explosion approval NEC | Y |
| Explosion approval by | UL |
| Explosion approval grade | Class I Division 1 |
| Cooling | IC 411 |
| Cable gland entry | Knock out |
| Range of ambient temperature | -4 .. 104 °F |
| Flange size for motor | 364TSC |
| Motor type | WEG |
| Rated power - P2 | 60 HP |
| Main frequency | 60 Hz |
| Rated voltage | 3 x 208-230/460 V |
| Service factor | 1.15 |
| Rated current | 151-137/68,3 A |
| Maximum current consumption | 151-158/78,5 A |
| Starting current | 700 % |
| Full load SF current | 158/78.5 A |
| Cos phi - power factor | 0.87 |
| Rated speed | 1780 rpm |
| Rated full-load torque | 240 Nm |
| Locked-rotor torque | 250 % |
| Breakdown torque | 250 % |
| Moment of inertia | 20.8 lb ft² |
| IE efficiency | IE3 95% |
| IE Efficiency class | IE3 / NEMA Premium |
| Motor efficiency at full load | 95 % |
| Motor efficiency at 3/4 load | 94.5 % |
| Motor efficiency at 1/2 load | 94.1 % |
| Number of poles | 4 |
| Enclosure class (IEC 34-5) | TEFC |
| Insulation class (IEC 85) | F |
| Built-in motor protection | PTO |
| Tropic protec | No |
| Thermal protec | external |
| R1 | 0.16071 ohm |
| R2 | 0.16071 ohm |
| R3 | 0.16071 ohm |
| Winding 1 | PHASE 1 |
| Winding 2 | PHASE 2 |
| Winding 3 | PHASE 3 |
| Mounting design per IEC 34-7 | Nema assembly F-3 |
| Cos phi 1/2 | 0.72 |
| Cos phi 3/4 | 0.82 |
| Bearing insulation type N-end | N |
| Net weight | 1010 lb |
| Color/Type | RAL 9005 |
| Country of origin | BR |
| Custom tariff no. | 8501.52.8040 |
