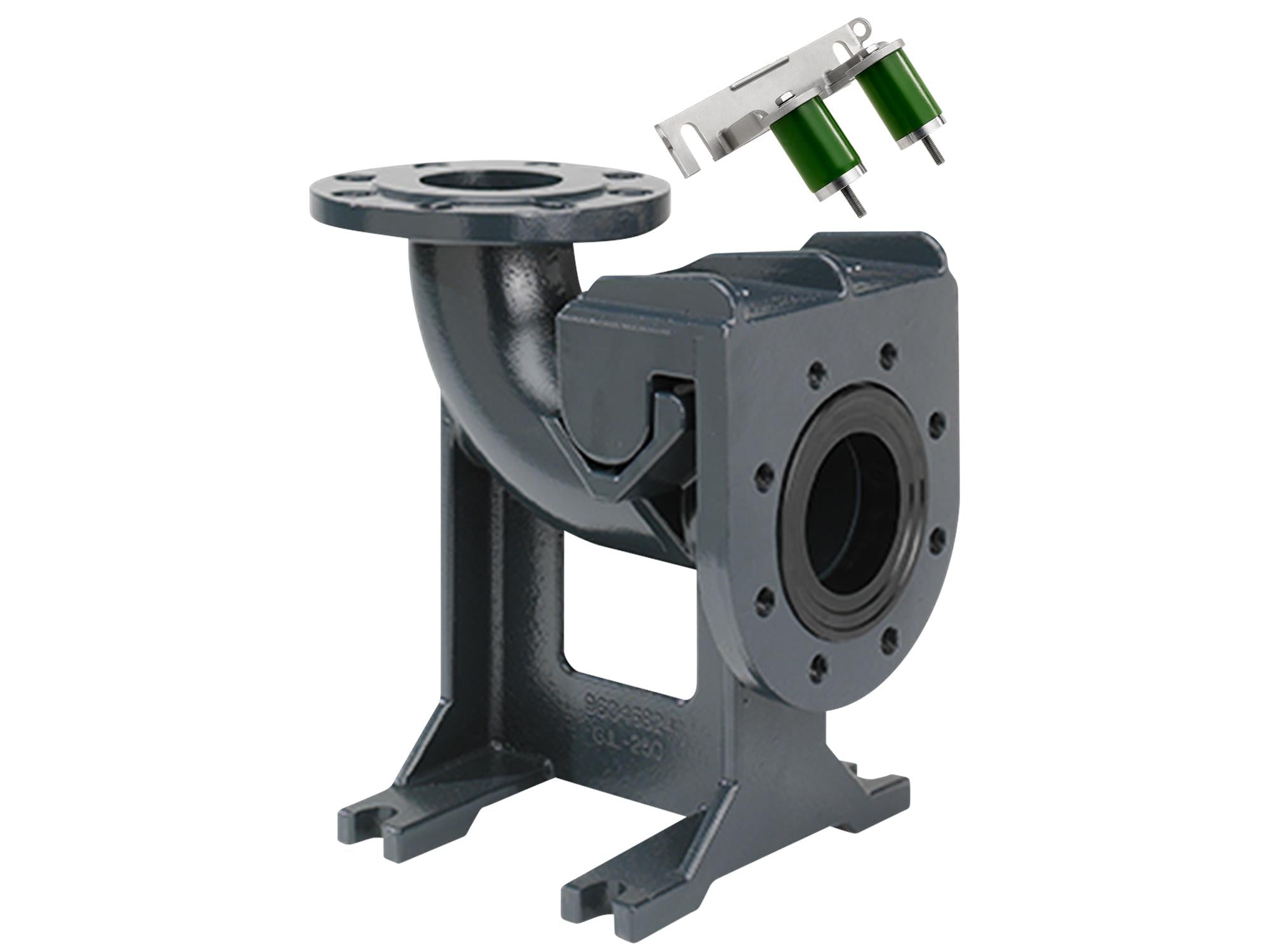

Grundfos 97695489, Auto Coupling Set DN150, 3 Inch CI

SKU: LSIT4THKO5 Part Number: 97695489

Price:
Sale price$1,805.95 Regular price$1,806.00

Save 0% Call 844-448-0880 for large volume pricing

Stock:
Call or Chat for availability
 More payment options

Description

This auto coupling set is designed for use with submersible pumps and supports both dry installation vertical and horizontal configurations. It has a DN150, 3" CI specification, making it suitable for wastewater applications.

Specifications

Manufacturer Grundfos
Part Number 97695489
Material Cast iron, EN-GJL-250, ASTM A48 Class 250B
Surface treatment Powder coated
Gasket Rubber, NBR
Maximum operating pressure 145.04 psi
Type of inlet connection DIN
Type of outlet connection DIN
Size of inlet connection DN 150
Size of outlet connection DN 150
Flange pressure class PN10/16
Flange standard DIN EN 1092-1
Number of anchor bolts 0
Number of base units 1
Number of washers 0
Number of nuts 8
Number of gaskets 1
Number of profile gaskets 1
Number of guide claws 1
Number of screws 8
Number of guide rail holders 1
Net weight 187 lb
Gross weight 187 lb
Shipping volume 5.93 ft³
Fits the following products S
Danish VVS No. 391299028
Country of origin DK
Custom tariff no. 8413.70.2004

About Grundfos

Grundfos has a wide range of products, pump solutions, and services for all applications. Grundfos' energy-efficient pumps provide comfort and move water, wastewater, and industrial liquids all over the world.
