Description

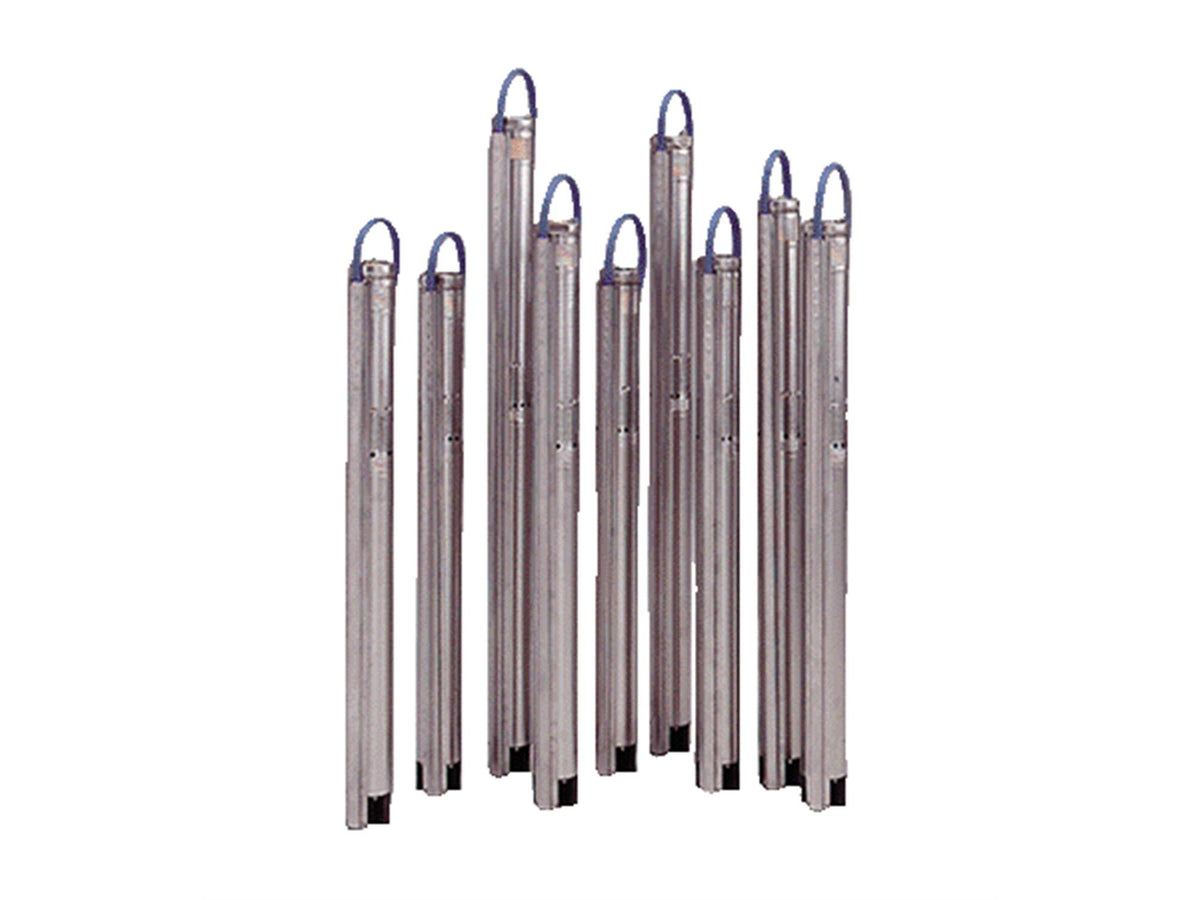

This submersible pump is compact and designed for remedial pumping and liquid sampling from areas with contaminated groundwater.
Specifications
| Manufacturer | Grundfos |
|---|---|
| Part Number | 97778425 |
| Pump speed on which pump data is based | 10700 rpm |
| Rated flow | 8.81 US gpm |
| Rated head | 285.4 ft |
| Stages | 6 |
| Approvals | cULus |
| Curve tolerance | ISO9906:2012 3B |
| Pump Number | 96397446 |
| Valve | pump with built-in non-return valve |
| Pump | Stainless steel, EN 1.4401, AISI 316 |
| Impeller | Composite, SOLEF 8808/0902 PVDF-CF10 |
| Motor | Stainless steel, DIN W.-Nr. 1.4401, AISI 316 |
| Maximum operating pressure | 217.56 psi |
| Pump outlet | 1 1/4"NPT |
| Minimum borehole diameter | 2.99 in |
| Pumped liquid | Water |
| Liquid temperature range | 32 .. 95 °F |
| Selected liquid temperature | 68 °F |
| Density | 62.29 lb/ft³ |
| Motor type | MSE3-NE |
| Power input - P1 | 2.05 kW |
| Rated power - P2 | 2.08 HP |
| Main frequency | 60 Hz |
| Rated voltage | 1 x 200-240 V |
| Service factor | 2.07 |
| Rated current | 11 A |
| Power factor | 1.00 |
| Rated speed | 10700 rpm |
| Start. method | direct-on-line |
| Enclosure class (IEC 34-5) | IP68 |
| Insulation class (IEC 85) | F |
| Built-in motor protection | Y |
| Thermal protec | internal |
| CU 300/CU 301 | communication with CU 300/CU 301 possible |
| Net weight | 12.8 lb |
| Gross weight | 14.1 lb |
| Sales region | N-AMREG |
