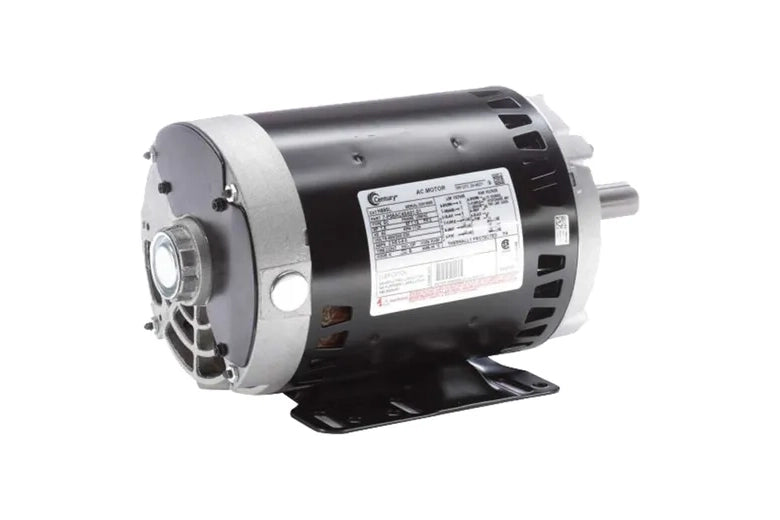

Century H885L 1.5HP, 460/200-230V, 1725RPM Motor

SKU: LSITULIYEZ Part Number: H885L

Price:
Sale price$459.95

Call 844-448-0880 for large volume pricing

Stock:
In stock (8 units), ready to be shipped
 More payment options

Description

Century general purpose motor.

Features

  • UL-recognized component listing and CSA certification ensure the product is safe for use within various applications.
  • Heavy-duty, rolled steel construction ensures motor durability.
  • Permanently lubricated sealed bearings extend the lifetime of the motor.

Specifications

Phase: 3
Output KW: 1.1 kW
Speed: 1725 rpm
Frame: U56HZ
Thermal Protection: Thermally Protected
Ambient Temperature: 40°C
Current: 2.8/5.0-5.6 A
Insulation Class: B
CSA: Y
Number of Speeds: 1
Output HP: 1.5 HP
Voltage: 460/200-230 V
Service Factor: 1.15
Enclosure: Drip Proof
Efficiency: 70%
Frequency: 60 Hz
Duty: Continuous
UL: Recognized
CE: N
Electrical Type: Polyphase, Induction Type, Single or Dual Voltage
Poles: 4
Mounting: Rigid Base
Opp Drive End Bearing: Ball
Shaft Type: Keyed
Frame Length: 7"
Shaft Extension: 2.31"
Starting Method: Across the Line
Rotation: Reversible Counterclockwise
Drive End Bearing: Ball
Frame Material: Rolled Steel
Overall Length: 12.81"
Shaft Diameter: 0.875"

Specifications

Manufacturer Century
Part Number H885L

About Century

Century has been pioneering the use of electric motors in the HVAC, leisure water, and commercial/industrial markets for over 100 years. Century brings cutting-edge, high-quality, and energy-efficient solutions to customers worldwide. Their product line encompasses everything from small fractional horsepower motors to large industrial machines.
