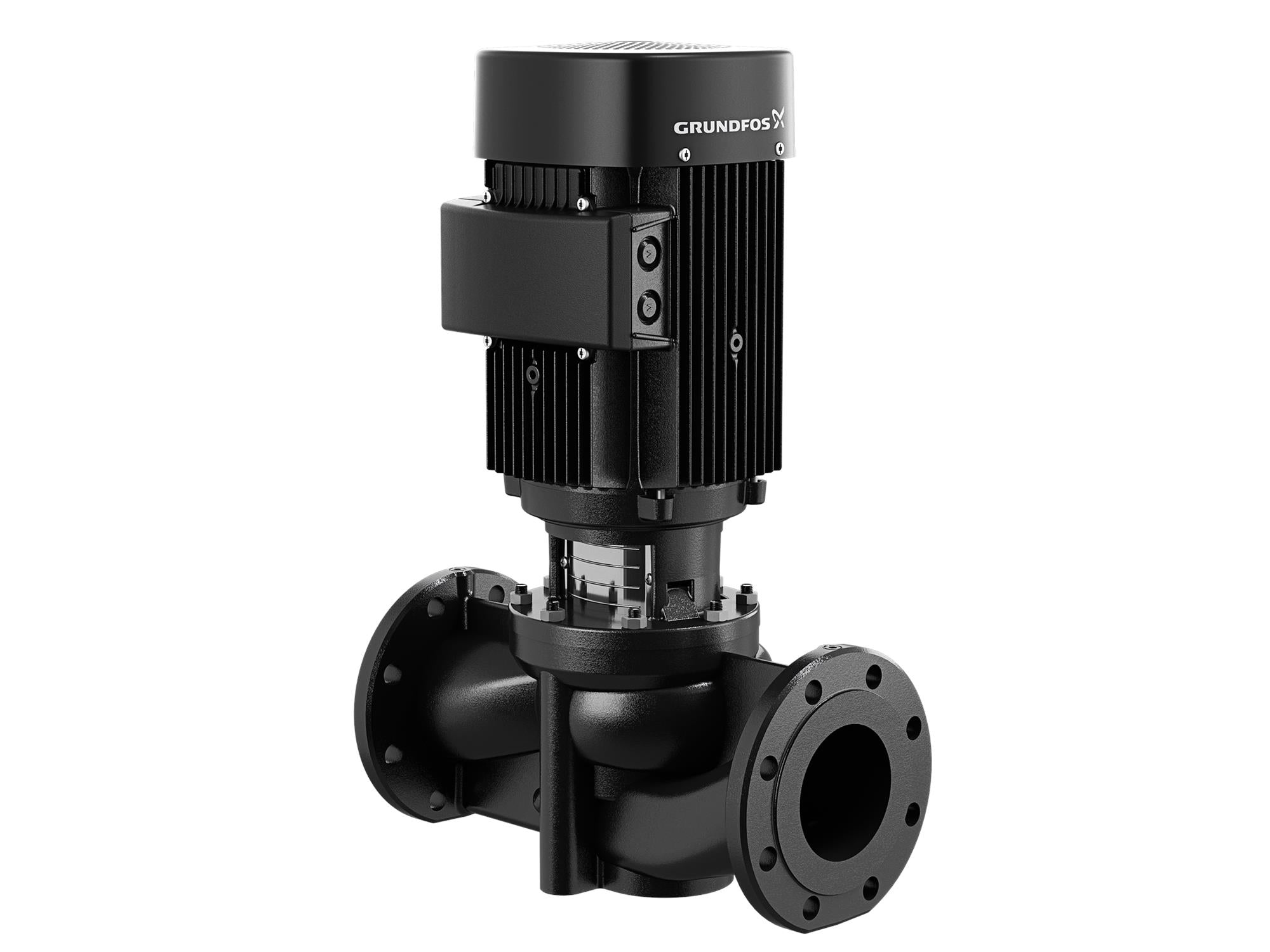

This inline single-stage pump is a TP80-40/4 A-G-A-RUUE model, designed for applications such as heating, cooling, and district energy. It has a mechanical shaft seal and is fitted with fixed-speed motors.
Specifications
Manufacturer
Grundfos
Part Number
49Z90155
Rated flow
119 US gpm
Rated head
8.859 ft
Primary shaft seal
RUUE
Approvals on motor nameplate
UL Recognized Component, CSA
Curve tolerance
ISO9906:2012 3B2
Pump Number
96405269
Pump housing
Cast iron, EN-JL1040, ASTM 25 B
Impeller
Stainless steel, DIN W.-Nr. 1.4301, AISI 304
Range of ambient temperature
-22 .. 131 °F
Maximum operating pressure
145.04 psi
Flange standard
ANSI
Pipe connection
3"
Pressure stage
125 lb.
Pumped liquid
Water
Liquid temperature range
140 .. 140 °F
Selected liquid temperature
68 °F
Density
62.29 lb/ft³
Motor type
BALDOR
Rated power - P2
0.5 HP
KVA code
J
Main frequency
60 Hz
Rated voltage
1 x 115/208-230 V
Service factor
1.25
Rated current
7,4/3,9-3,7 A
Full load SF current
8,2/4,3-4,1 A
Rated speed
1725 rpm
Insulation class (IEC 85)
B
Built-in motor protection
NONE
Gross weight
123 lb
Shipping volume
4.98 ft³
Country of origin
US
Custom tariff no.
8413.70.2025
