Please note this item is made to order and additional lead-times may apply.

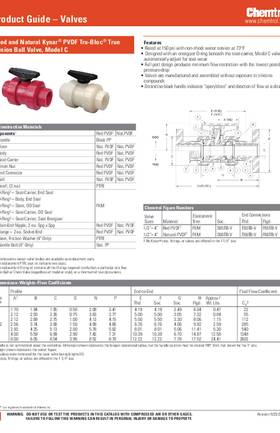

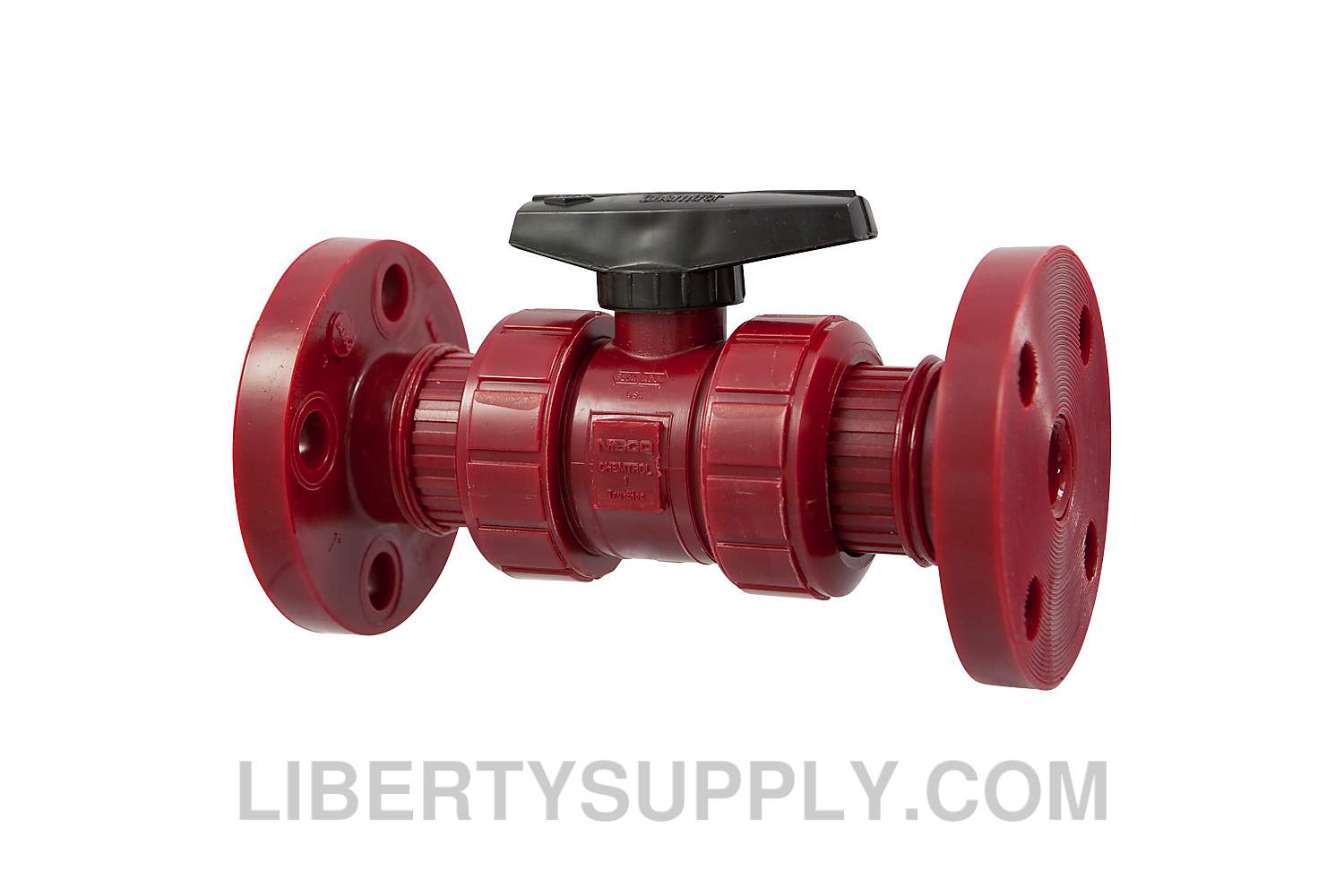

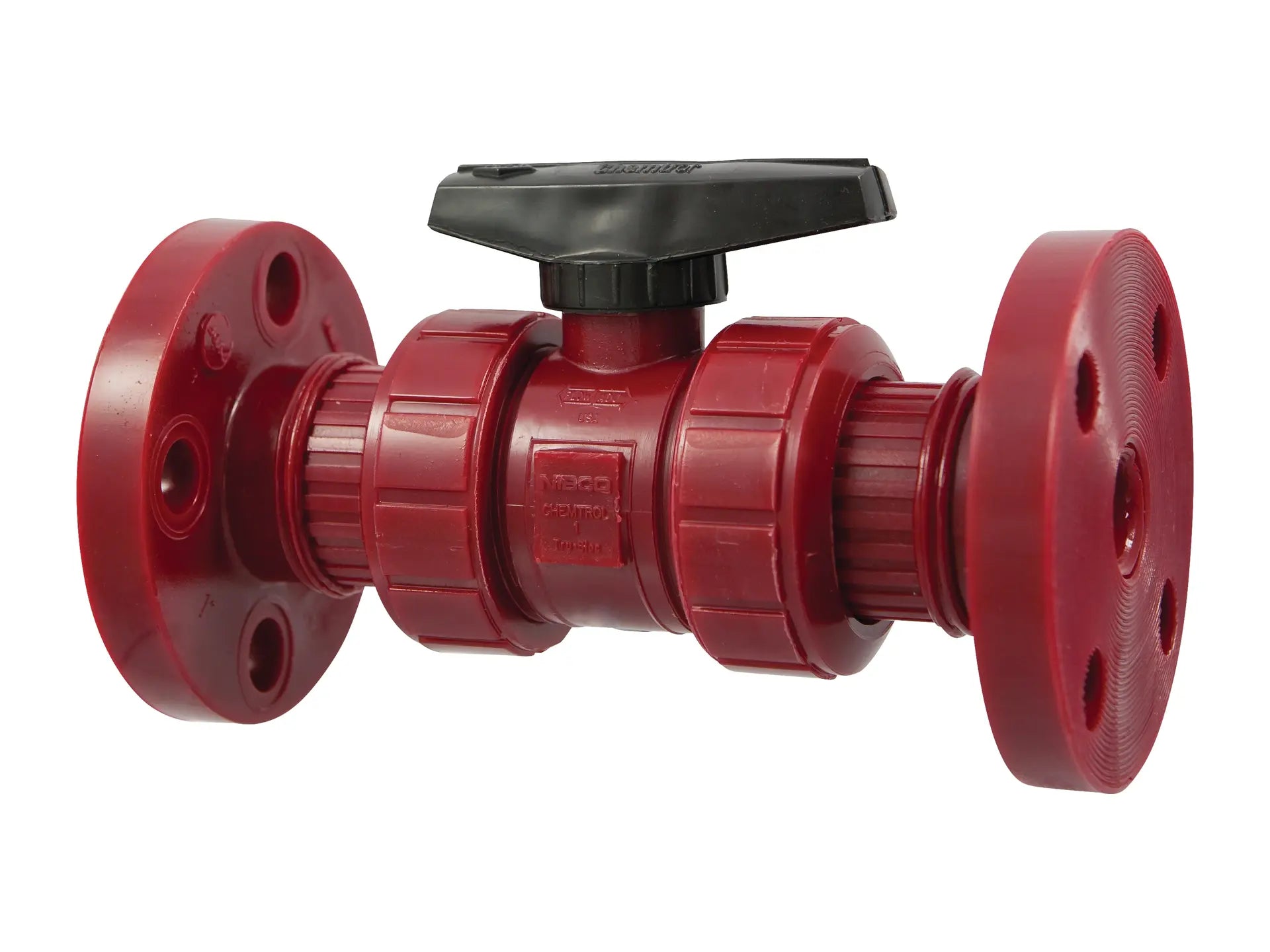

This Chemtrol Tru-Bloc True Union ball valve is engineered with a self-adjusting seat and upstream and downstream blocking capability to stop flow when an alternate union is removed for servicing the piping system. The valve's injection molded red Kynar polyvinylidene fluoride (PVDF) construction with FKM O-ring is ideal for use with hot corrosive liquids, chemical processing, industrial plating, waste treatment systems and outdoor installations. The original Chemtrol True Union design allows the valve and operational components to be conveniently lifted from the piping system for repair or replacement. Tru-Bloc advances the True Union concept with the self-adjusting energizer O-ring. The valve can be easily joined with the flanged end connections. Please refer to Chemtrol technical data sheets, chemical resistance guides and catalogs for engineering and installation information. Chemtrol Kynar red PVDF exhibits superior strength, working temperature and chemical resistance characteristics. Red pigment provides UV protection. Kynar PVDF offers versatile chemical resistance to slats, strong acids, dilute bases and many organic solvents such as aromatics, aliphadics and chlorinated groups. PVDF is also ideally suited for handling wet or dry chlorine bromine and other halogens. Choose Chemtrol valves for the most reliable, versatile and economical valve option in commercial and industrial applications. Chemtrol valves are backed by a 1-year limited warranty. Because Chemtrol is a NIBCO brand the flow-control valves are unsurpassed in quality, performance and longevity.
Features
- Valve pressure rating 150 psi at 73°F water non-shock full-port
- Full port
- Maximum service temperature 280°F
- True Bloc® design
- FKM O-ring
- Flanged end connections compatible with ANSI B16.5 Class 150
- Do not use or test with compressed air or other gases
- ASTM D3222 Type I material
