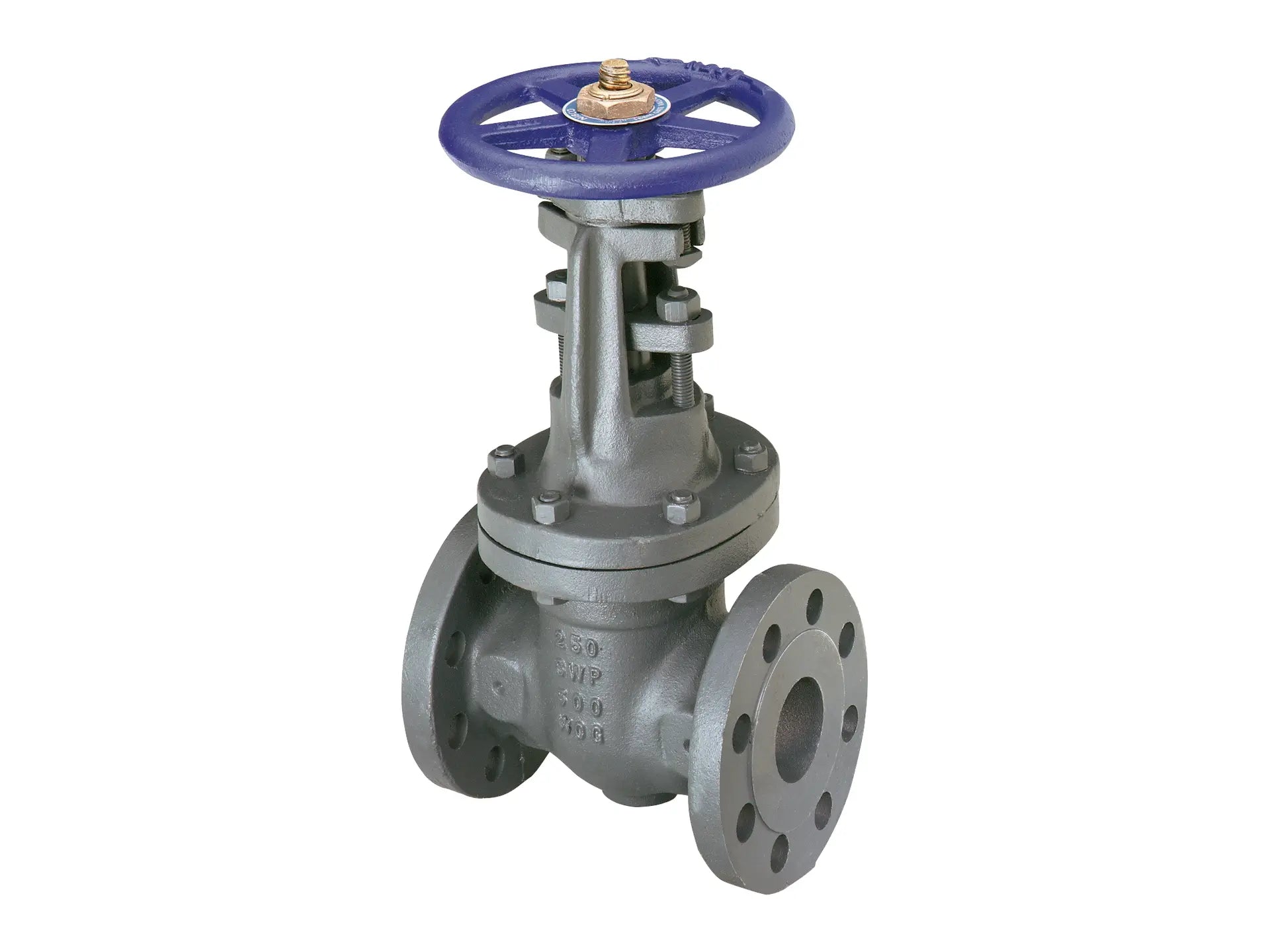

NIBCO F-667-O-Z 6" Flgd Cast Iron Gate Valve NHAW08K

SKU: LSIU2ANNB2 Part Number: NHAW08K Model: F-667-O-Z

Price:
Sale price$7,029.95 Regular price$15,281.00

Save 54% Call 844-448-0880 for large volume pricing

Stock:
Typically Stocked - Call or Chat to confirm
 More payment options

Description

Please note this item is made to order and additional lead-times may apply.

This NIBCO cast iron gate valve provides full flow with minimal pressure drop. The gate valve features a Class 250 flanged, raised face end connection for easy installation and accessibility. Outside screw and yoke (OS&Y) gate valves are recommended when positive shutoff is required and a quick visual indicator of open/closed position is needed. The OS&Y configuration protects the stem threads from contact with the media. This NIBCO flanged cast iron gate valve may be used in commercial and industrial applications, including hot and cold water, HVAC, steam, gas and other general utility services. Please refer to NIBCO technical data sheets, chemical resistance guides and catalogs for engineering and installation information. Choose NIBCO gate valves for the most specified, versatile and economical valve option in commercial, mechanical and industrial applications. NIBCO valves are backed by the NIBCO 5-year 125% limited warranty.

Features

  • 250 psi/17.2 bar saturated steam to 406°F/207°C
  • 500 psi/34.5 bar non-shock cold working pressure
  • Outside screw and yoke
  • Bolted bonnet
  • Solid wedge
  • Iron body bronze mounted (IBBM)
  • Class 250 flanged end connections
  • Use in U.S. drinking water applications is prohibited after January 3, 2014
  • Conforms to MSS SP-70
  • Approved by the New York City BSA 143-69-SA at 350 psi non-shock cold water

Specifications

Manufacturer NIBCO
Part Number NHAW08K
Model F-667-O-Z
Type of Valve Gate
Nominal Pipe Size 6"
End Connection Type F -- Flanged
Seat Seal Material Bronze
Gate Stem Design Outside Screw and Yoke
Turns Operations Multi-Turn
Multi-Turn Operator Standard Handwheel
Multi-Turn Bonnet Design Bolted Bonnet
Pressure Rating (CWP) 500 psi/34.5 Bar CWP
Pressure Rating (SWP) 250 psi/17.2 Bar SWP
Material Cast Iron
Potable Water Code Not LL Comp not intend potable
UPC Code 039923700001
Length 36.39"
Width 21.25"
Height 16.25"
Country of Origin US
CA Proposition 65 Warning Statement WARNING: This product can expose you to chemicals including Lead, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov.

About NIBCO

NIBCO is a recognized manufacturer and brand leader of valves, fittings, and flow-control products.
