Name: NIBCO NJ99836, 1/2 in. Ball Valve Brass, Two-Piece, Full Port, C x C S-FP-600A
Brand: NIBCO
SKU: LSIU3SUIAS
Price: 16.95 USD
Availability: InStock

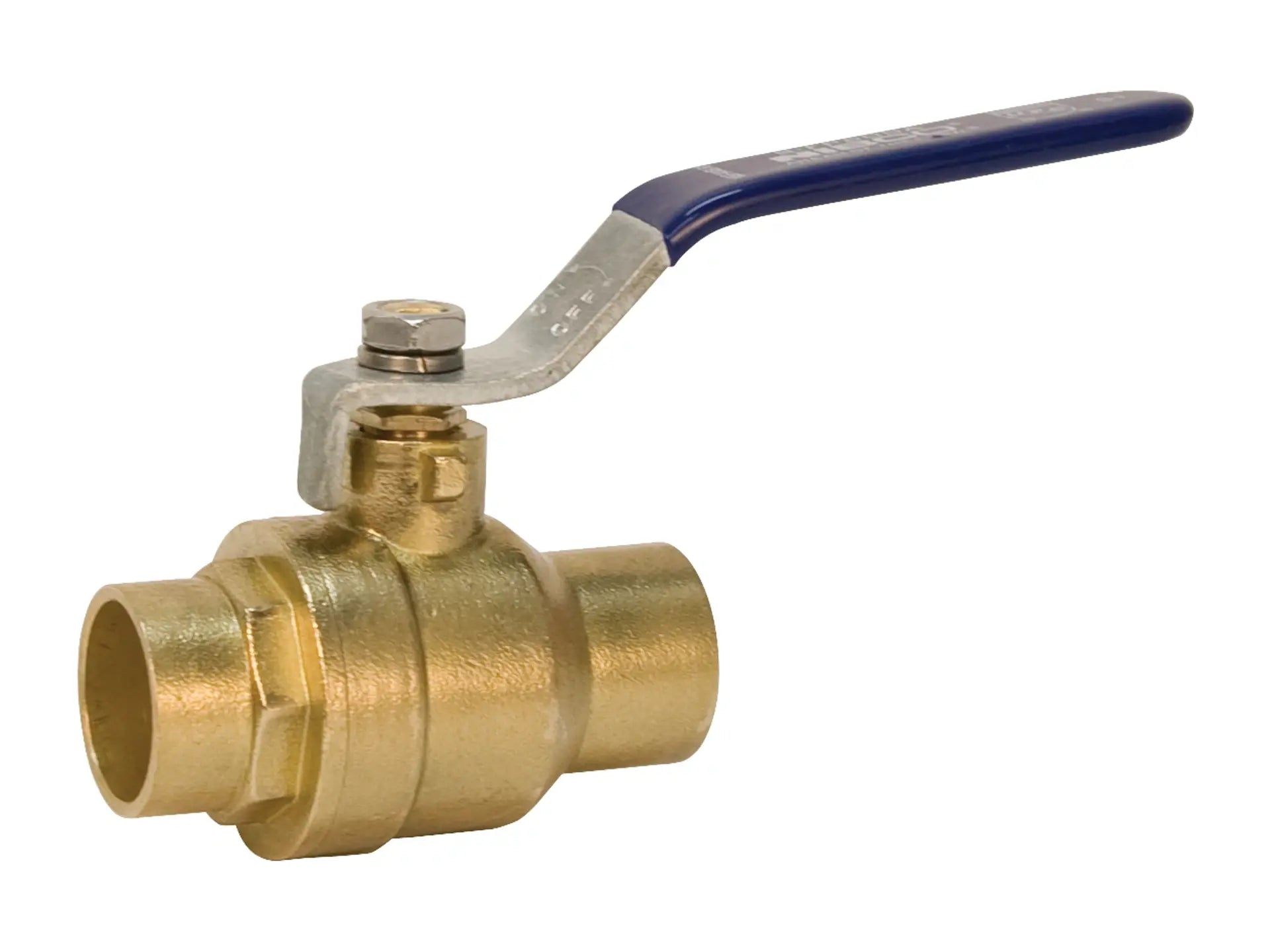

Representative Image

NIBCO NJ99836, 1/2 in. Ball Valve Brass, Two-Piece, Full Port, C x C S-FP-600A

Roll over image to zoom in Click on image to zoom

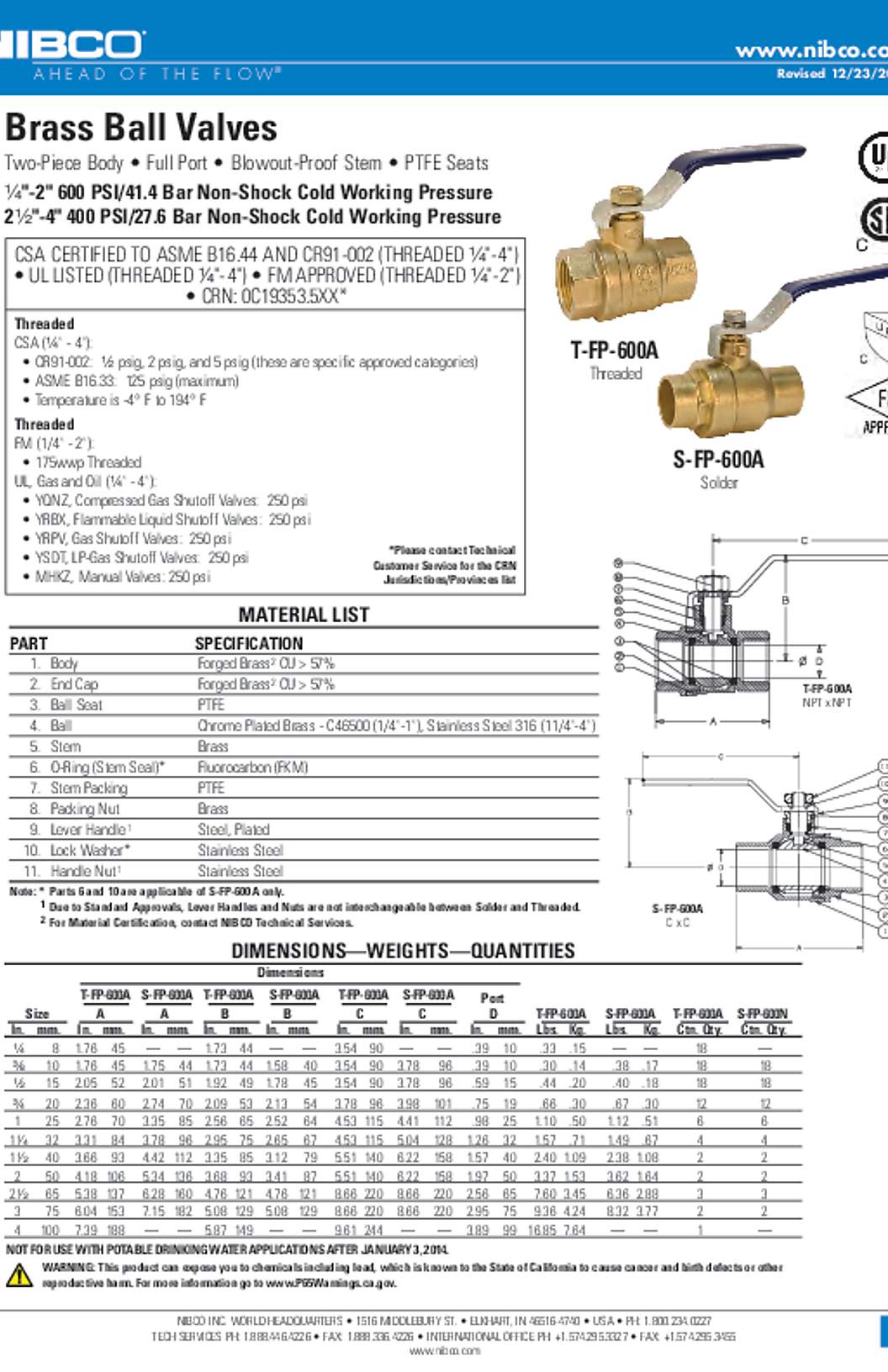

This NIBCO brass ball valve with solder end connections provides bubble-tight shutoff. The valve's PTFE seats and hard chrome-plated brass ball exhibit high chemical resistance properties. The valve is ideal for hot/cold water and gas applications. This NIBCO brass ball valve provides ease of operation with quarter-turn (90°) open to close. The two-piece valve features solder end connections for easy installation. Please refer to NIBCO technical data sheet, valve selection guide and catalog for engineering and installation information. Choose NIBCO ball valves for the most specified, versatile and economical valve option in commercial and residential applications. NIBCO specialty valves are backed by a NIBCO INC. 2-year limited warranty.

Features

Valve pressure rating 600 psi/41.4 bar non-shock cold working pressure (1/4" to 2")
Valve pressure rating 400 psi/27.6 bar non-shock cold working pressure (2-1/2" to 4")
Full port
Chrome-plated brass ball and stem
Blowout-proof stem
Standard lever handle
Female solder cup end connections
Use in U.S. drinking water applications is prohibited after January 3, 2014

Manufacturer	NIBCO
Part Number	NJ99836
Model	S-FP-600A
Series	S-FP600A
Type of Valve	Ball
Nominal Pipe Size	1/2"
End Connection Type	S -- Female Solder Cup
Material	Brass
Ball Body Type	Two-Piece
Ball Operator	CS Wing Handle
Ball Port Style	Full Port
Ball Material	Brass
Ball Stem Material	BRS - Brass Ball and Stem
Stem Material	Brass
Turns Operations	Quarter-Turn
Pressure Rating (CWP)	600 psi/41.4 Bar CWP
Potable Water Code	Not LL Comp not intend potable
UPC Code	039923313447
Length	4.57"
Width	2.44"
Height	1.2"
Country of Origin	CN
CA Proposition 65 Warning Statement	WARNING: This product can expose you to chemicals including Lead, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov.
