Description

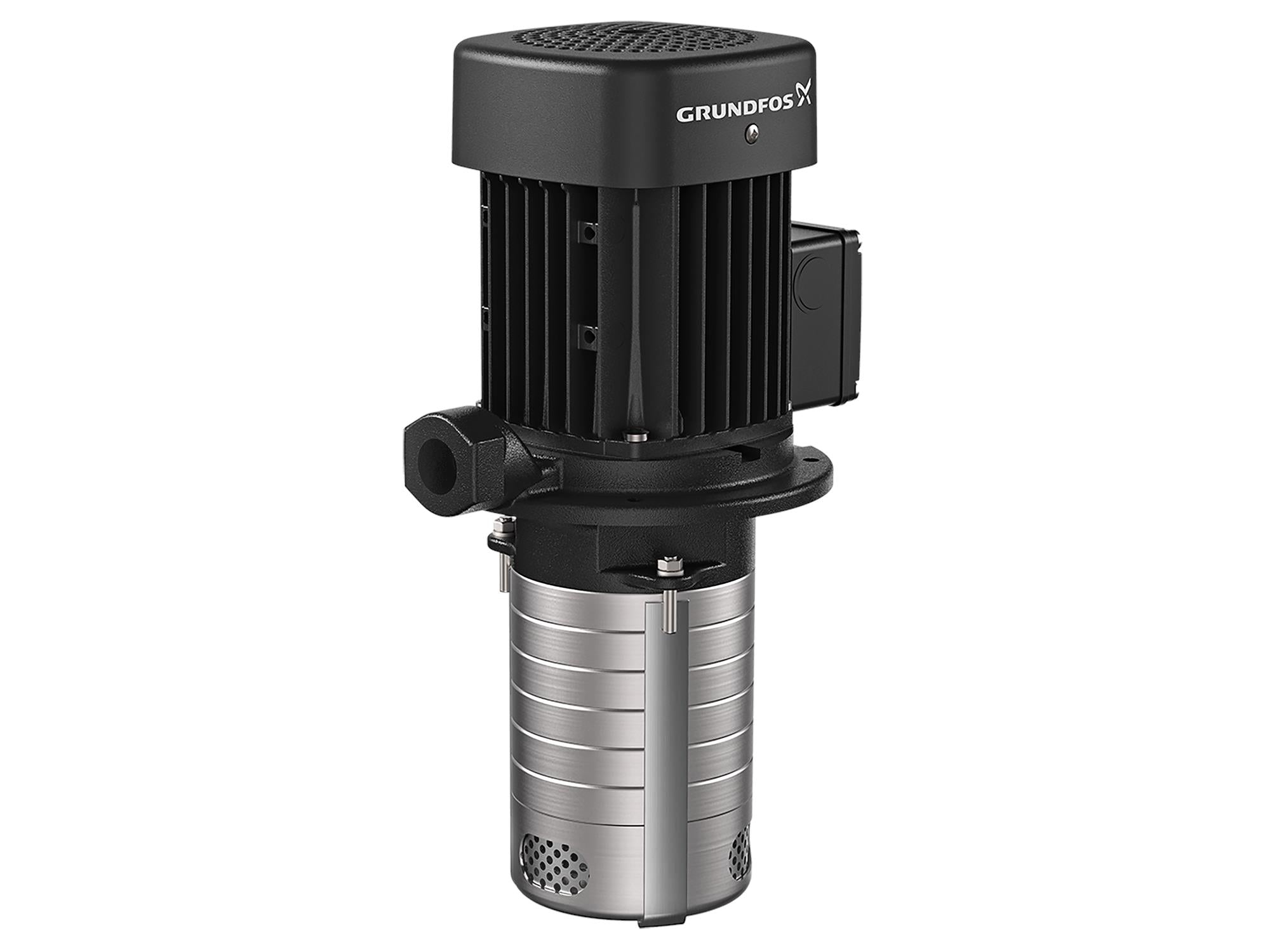

This vertical multistage centrifugal pump is designed for applications like cooling lubricant pumping, condensate transfer, and similar uses. Mounted on tank tops with chamber stacks immersed in liquid, these pumps offer adjustable stages and immersed lengths to meet specific flow, pressure, and depth requirements.
Specifications
| Manufacturer | Grundfos |
|---|---|
| Part Number | 98992605 |
| Rated flow | 13.2 US gpm |
| Rated head | 152.6 ft |
| Chambers | 5 |
| Impellers | 5 |
| Number of reduced-diameter impellers | 0 |
| Code for shaft seal | AQQV |
| Approvals | CE,UKCA |
| Energy approvals for motor | CE,CC, |
| Curve tolerance | ISO9906:2012 3B |
| Pump version | A |
| Pump housing | Cast iron, EN 1561 EN-GJL-200, ASTM A48-25B |
| Impeller | Stainless steel, EN 1.4301, AISI 304 |
| Material code | A |
| Maximum ambient temperature | 140 °F |
| Maximum operating pressure | 145.04 psi |
| Max pressure at stated temperature | 145 psi / 194 °F |
| Type of connection | Rp |
| Size of outlet port | 3/4 inch |
| Immersion depth | 7.13 in |
| Connect code | W |
| Pumped liquid | Emulsion |
| Liquid temperature range | 14 .. 194 °F |
| Selected liquid temperature | 68 °F |
| Density | 62.29 lb/ft³ |
| Motor standard | IEC |
| Frame size | 80A |
| Multi plug | N |
| IE efficiency class | IE3 / NEMA Premium |
| Rated power - P2 | 1.01 HP |
| Main frequency | 60 Hz |
| Suitable for 50/60 Hz (Yes/No) | Y |
| Rated voltage | 3 x 220-255D/380-440Y V |
| Service factor | 1.30 |
| Rated current | 2,95-2,75/1,70-1,60 A |
| Maximum current consumption | 3,85-3,35/2,22-1,94 A |
| Starting current | 600-740 % |
| Rated speed | 3440 rpm |
| Efficiency at full load | 77.0 % |
| Enclosure class (IEC 34-5) | IP54 |
| Insulation class (IEC 85) | F |
| Built-in motor protection | NONE |
| Frequency converter | None |
| Terminal box position | 6 |
| Minimum efficiency index, MEI ≥ | 0.70 |
| Net weight | 37.7 lb |
| Gross weight | 40.1 lb |
| Danish VVS No. | 386951005 |
| Country of origin | HU |
| Custom tariff no. | 8413.70.2040 |
| Environmental approvals | WEEE |
