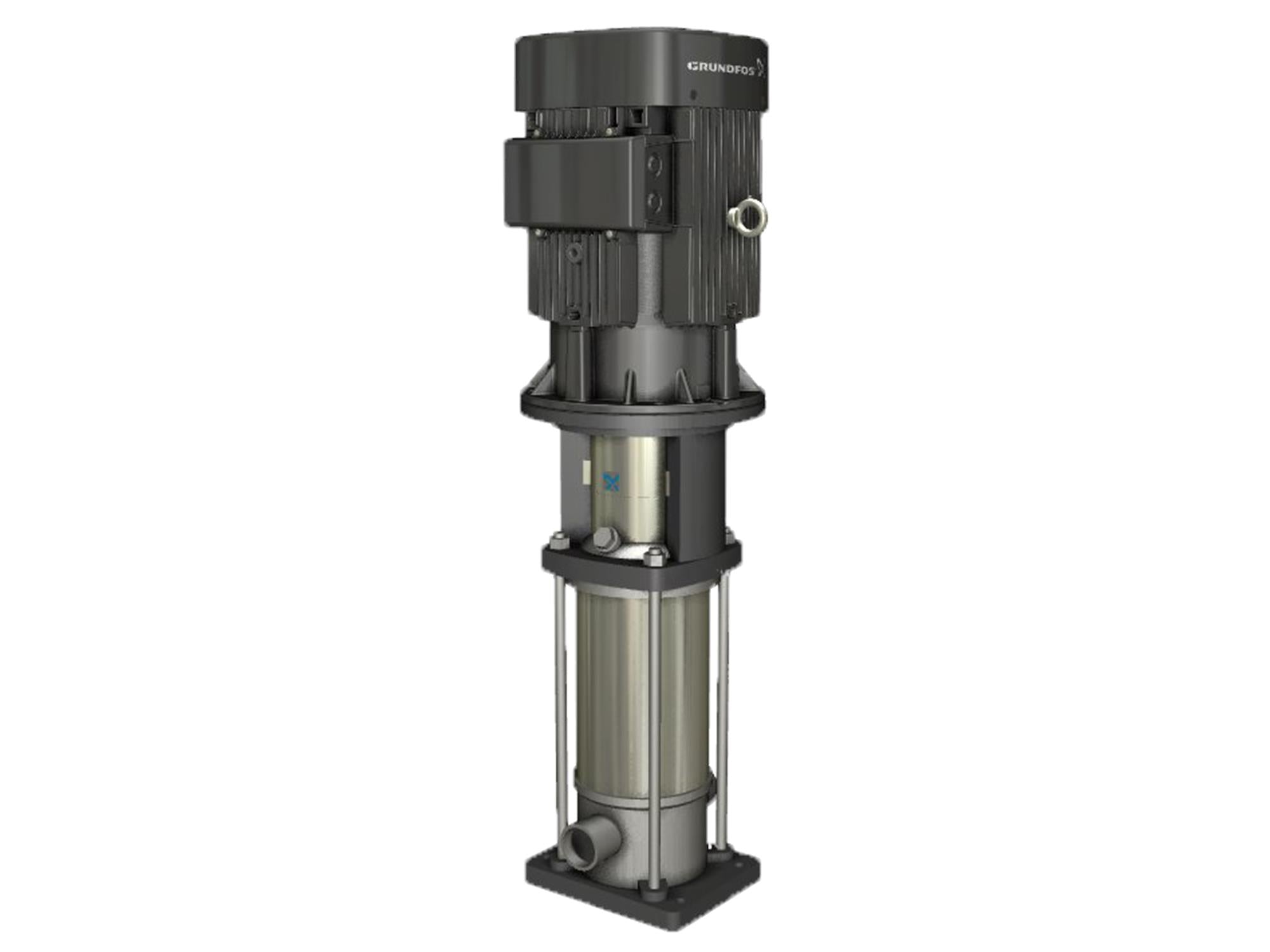

Grundfos 98728496, CRN10-5 A-P-A-E-HQQE Vertical Multistage Pump

SKU: LSIUDJHICT Part Number: 98728496

Price:
Sale price$4,962.95 Regular price$7,407.00

Save 33% Call 844-448-0880 for large volume pricing

Stock:
Call or Chat for availability
 More payment options

Description

This vertical multistage centrifugal pump has suction and discharge ports on the same level.

Specifications

Manufacturer Grundfos
Part Number 98728496
Rated pump speed 3514 rpm
Rated flow 53.3 US gpm
Rated head 191.9 ft
Maximum head 242.1 ft
Actual impeller diameter 3.66 in
Stages 5
Impellers 5
Number of reduced-diameter impellers 0
Low NPSH N
Pump orientation Vertical
Shaft seal arrangement Single
Code for shaft seal HQQE
Approvals CE,EAC,UKCA,CURUS,SEPRO
Approvals for drinking water WRAS,ACS
Curve tolerance ISO9906:2012 3B
Pump version A
Base Stainless steel, EN 1.4408, AISI 316
Impeller Stainless steel, EN 1.4401, AISI 316
Material code A
Code for rubber E
Maximum ambient temperature 140 °F
Maximum operating pressure 362.59 psi
Max pressure at stated temperature 363 psi / 250 °F, 363 psi / -4 °F
Type of connection PJE
Size of inlet connection DN 50
Size of outlet connection DN 50
Pressure rating for connection PN 50
Flange size for motor FT130
Connect code P
Pumped liquid Water
Liquid temperature range -4 .. 248 °F
Selected liquid temperature 68 °F
Density 62.29 lb/ft³
Motor standard IEC
Motor type 100DA
Rated power - P2 4 HP
Power (P2) required by pump 4 HP
Main frequency 60 Hz
Rated voltage 3 x 220-277D/380-480Y V
Service factor 1.00
Rated current 10,8-9,35/6,20-5,40 A
Starting current 860-1100 %
Cos phi - power factor 0.91-0.84
Rated speed 3480-3530 rpm
IE Efficiency class NEMA Premium / IE3 60Hz
Motor efficiency at full load 87.5-88.5 %
Motor efficiency at 3/4 load 88.0-87.8 %
Motor efficiency at 1/2 load 88.9-85.4 %
Number of poles 2
Enclosure class (IEC 34-5) 55 Dust/Jetting
Insulation class (IEC 85) F
Built-in motor protection PTC
Frequency converter None
Pressure sensor N
Minimum efficiency index, MEI ≥ 0.70
DOE Pump Energy Index CL 0.87
Net weight 115 lb
Gross weight 123 lb
Shipping volume 3.67 ft³

About Grundfos

Grundfos has a wide range of products, pump solutions, and services for all applications. Grundfos' energy-efficient pumps provide comfort and move water, wastewater, and industrial liquids all over the world.
