Please note this item is made to order and additional lead-times may apply.

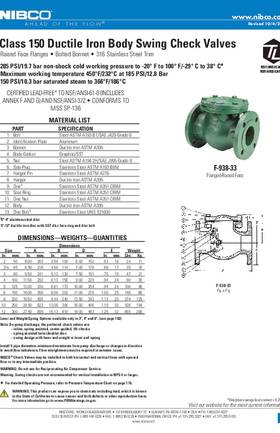

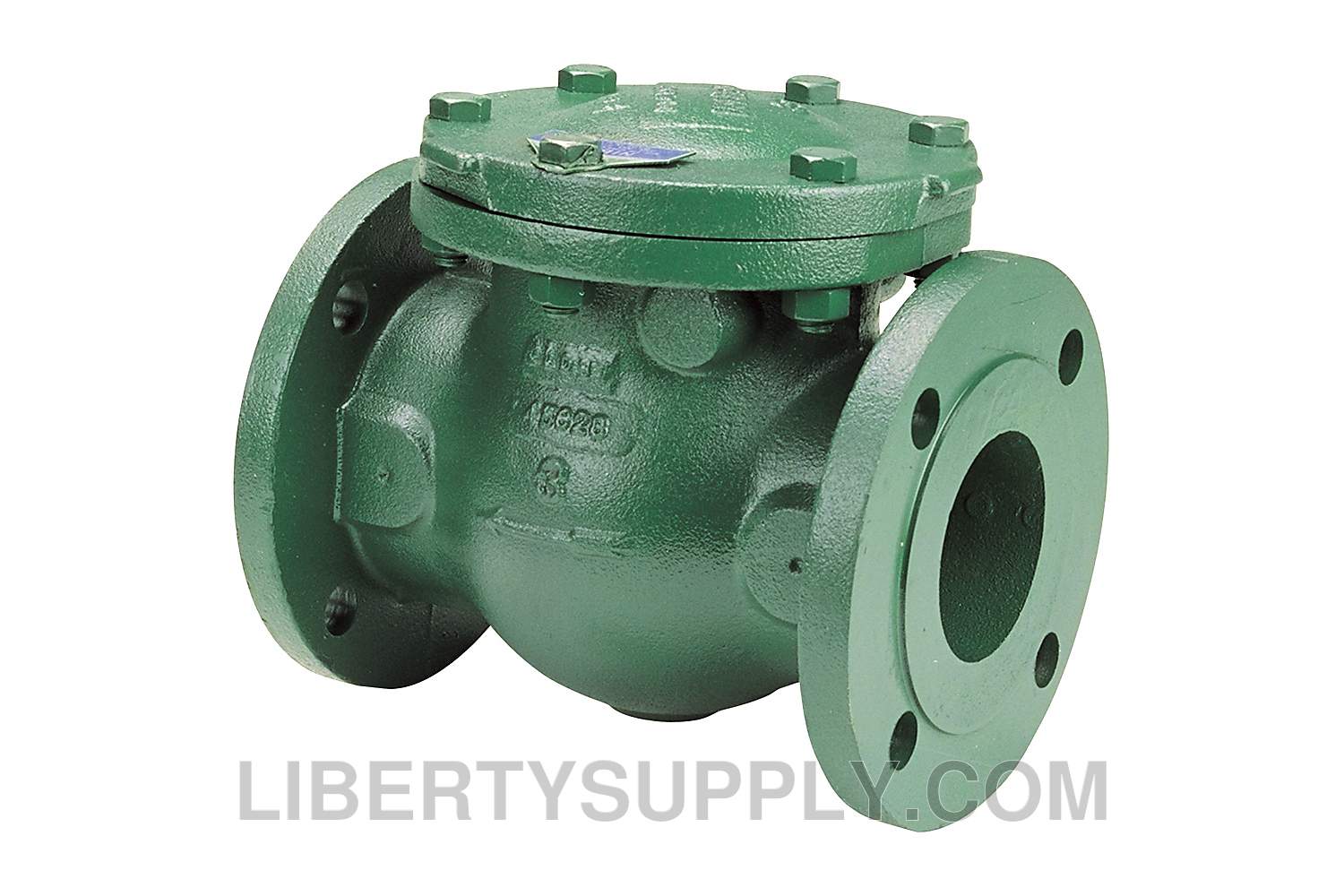

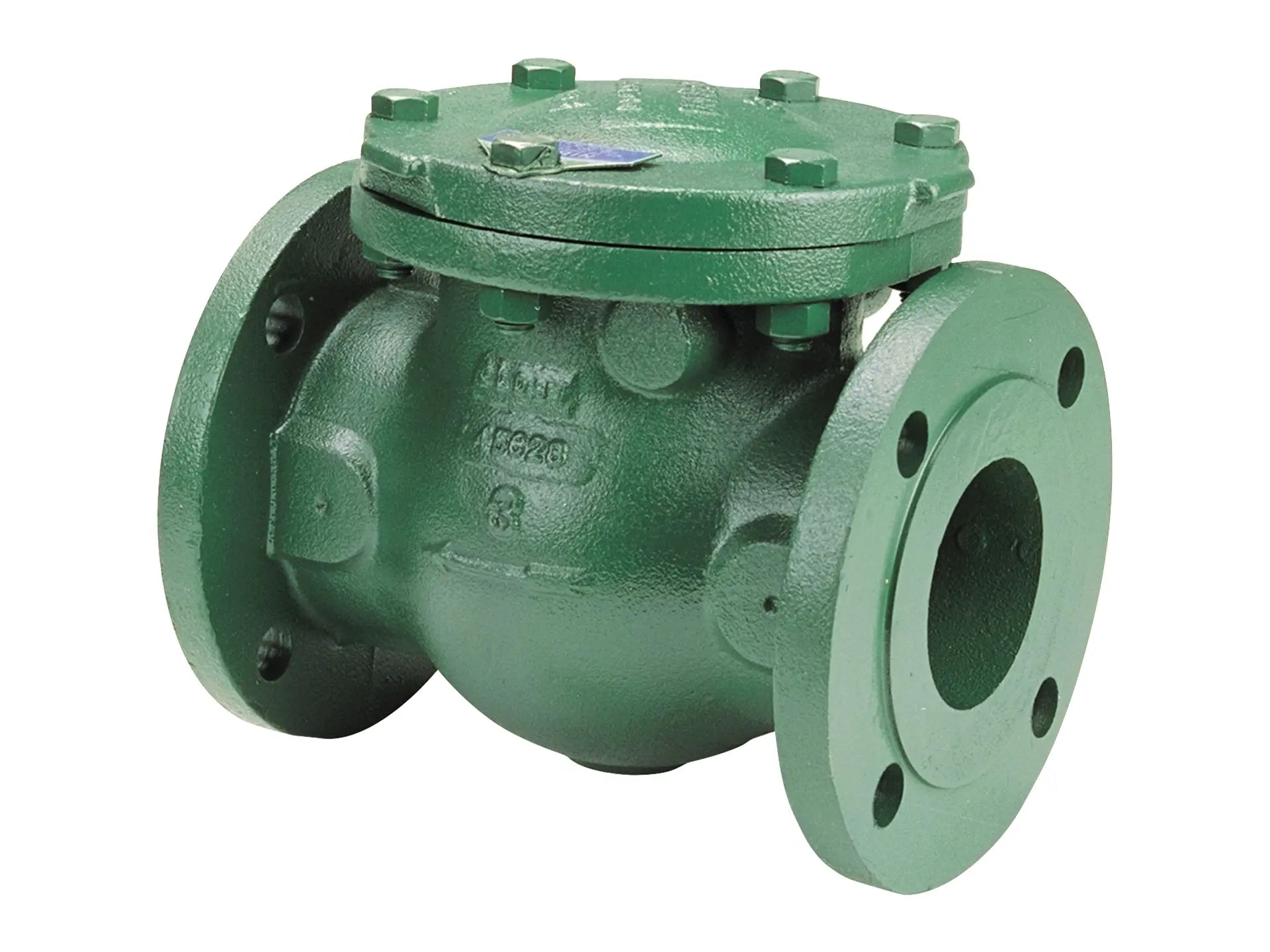

This NIBCO ductile iron horizontal swing check valve is designed with renewable stainless steel seat and disc. The swing check valve prevents backflow by automatically closing when fluid reverses direction. It is equipped with a bolted bonnet for maintenance accessibility. The swing check valve includes a renewable stainless steel seat and disc. The ductile iron Class 150 check valve features raised face flanged end connections for easy installation. The check valve is recommended for commercial and industrial steam, water, oil and gas services. Swing checks may be installed in horizontal positions (or vertical with flow moving up). With its ductility, the valve displays higher physical properties than standard grey cast iron. Please refer to NIBCO technical data sheets, chemical resistance guides and catalogs for engineering and installation information. Choose NIBCO check valves for the most specified, versatile and economical valve option in commercial, mechanical and industrial applications. NIBCO check valves are backed by the NIBCO 5-year 125% limited warranty.
Features
- 250 psi/17.2 bar non-shock cold working pressure
- 150 psi/10.3 bar saturated steam to 366°F/185°C
- Bolted bonnet
- Renewable seat and disc
- Iron body, bronze mounted (IBBM)
- Stainless steel trim
- Class 150 flanged end connections
- Conforms to MSS SP-136
