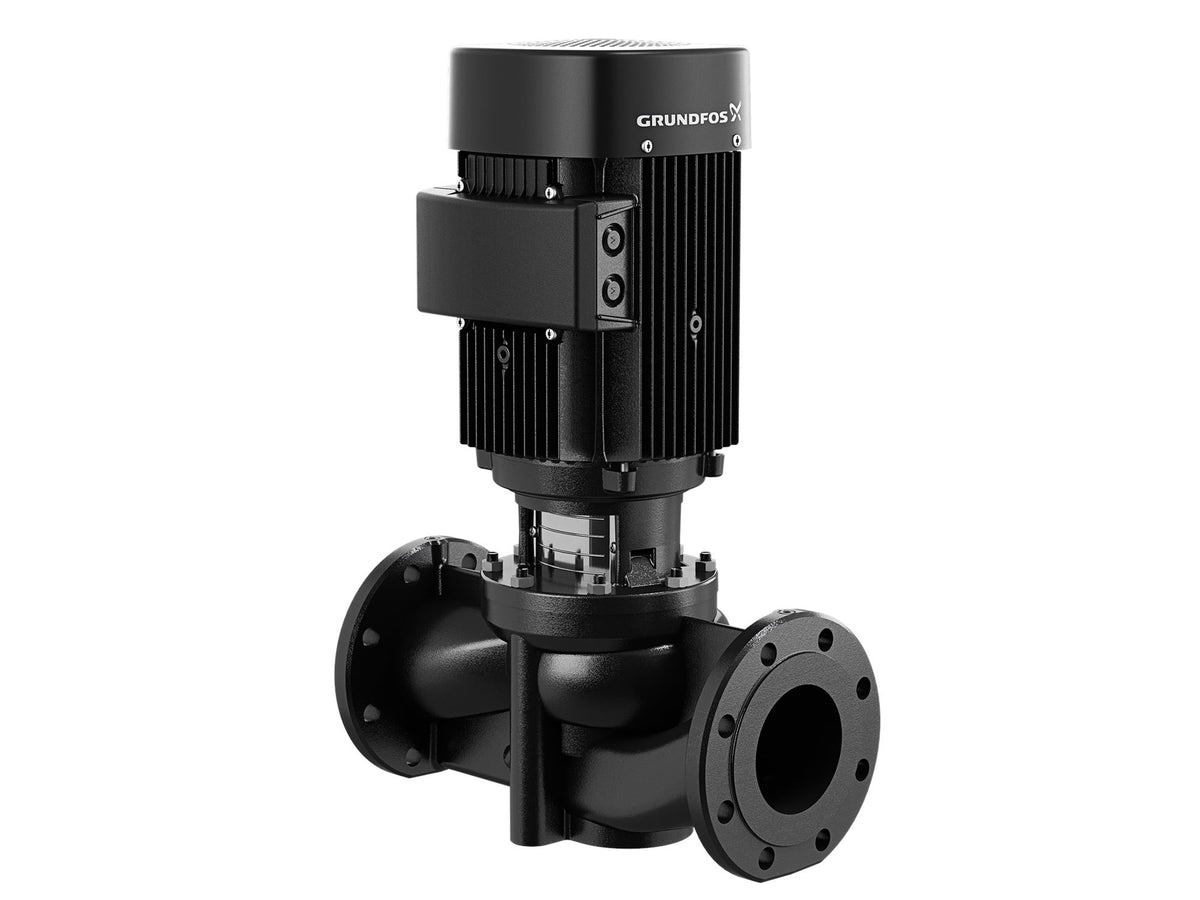

Grundfos 96411845, TP100-40/4B BUBE Pump 3x208-230/460V C125TEF

SKU: LSIUUKZH8P Part Number: 96411845

Price:
Sale price$10,253.95 Regular price$15,304.00

Save 33% Call 844-448-0880 for large volume pricing

Stock:
Call or Chat for availability
 More payment options

Description

This inline single-stage pump is a TP100-40/4B BUBE model with a bronze pump housing and mechanical shaft seal. It is designed for hot water recirculation applications and has fixed-speed motors.

Specifications

Manufacturer Grundfos
Part Number 96411845
Rated flow 181 US gpm
Rated head 9.187 ft
Actual impeller diameter 4.09 in
Primary shaft seal BUBE
Approvals on motor nameplate UL Recognized Component, CSA
Curve tolerance ISO9906:2012 3B2
Pump Number 96405278
Pump housing Bronze, DIN W.-Nr. 2.1093
Impeller Stainless steel, DIN W.-Nr. 1.4301, AISI 304
Maximum ambient temperature 131 °F
Maximum operating pressure 145.04 psi
Flange standard ANSI
Pipe connection 4"
Pressure stage 125 lb.
Pumped liquid Water
Liquid temperature range 5 .. 284 °F
Selected liquid temperature 68 °F
Density 62.29 lb/ft³
Motor type Baldor, TEFC
Rated power - P2 1 HP
KVA code J
Main frequency 60 Hz
Rated voltage 3 x 208-230/460 V
Service factor 1.15
Rated current 3,4-3,2/1,6 A
Full load SF current 3,6.3,4/1,7 A
Rated speed 1750 rpm
Insulation class (IEC 85) B
Built-in motor protection None
Net weight 148 lb
Gross weight 173 lb
Shipping volume 4.98 ft³
Country of origin US
Custom tariff no. 8413.70.2025

About Grundfos

Grundfos has a wide range of products, pump solutions, and services for all applications. Grundfos' energy-efficient pumps provide comfort and move water, wastewater, and industrial liquids all over the world.
