Please note this item is assembled to order and additional lead-times may apply.

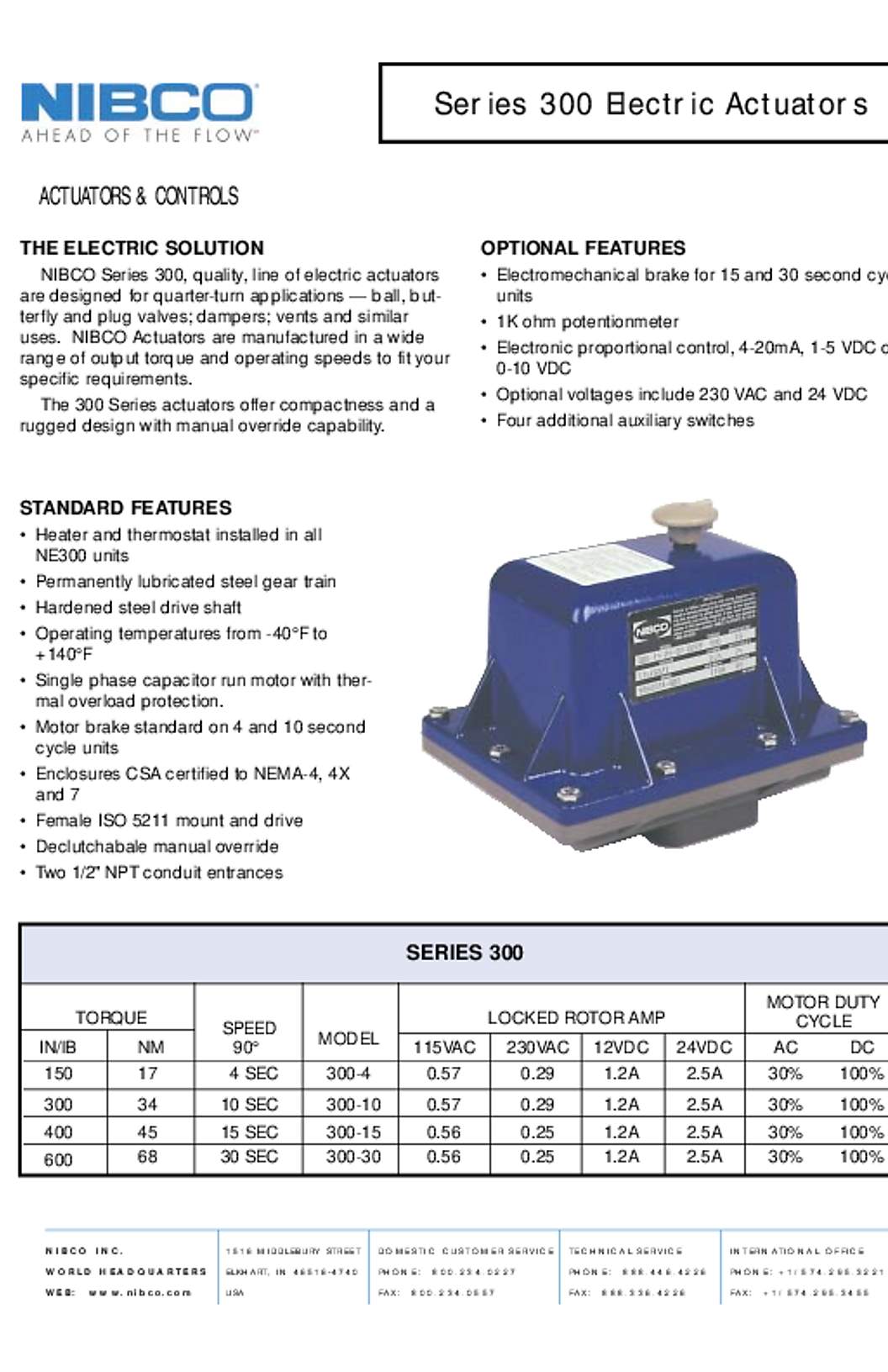

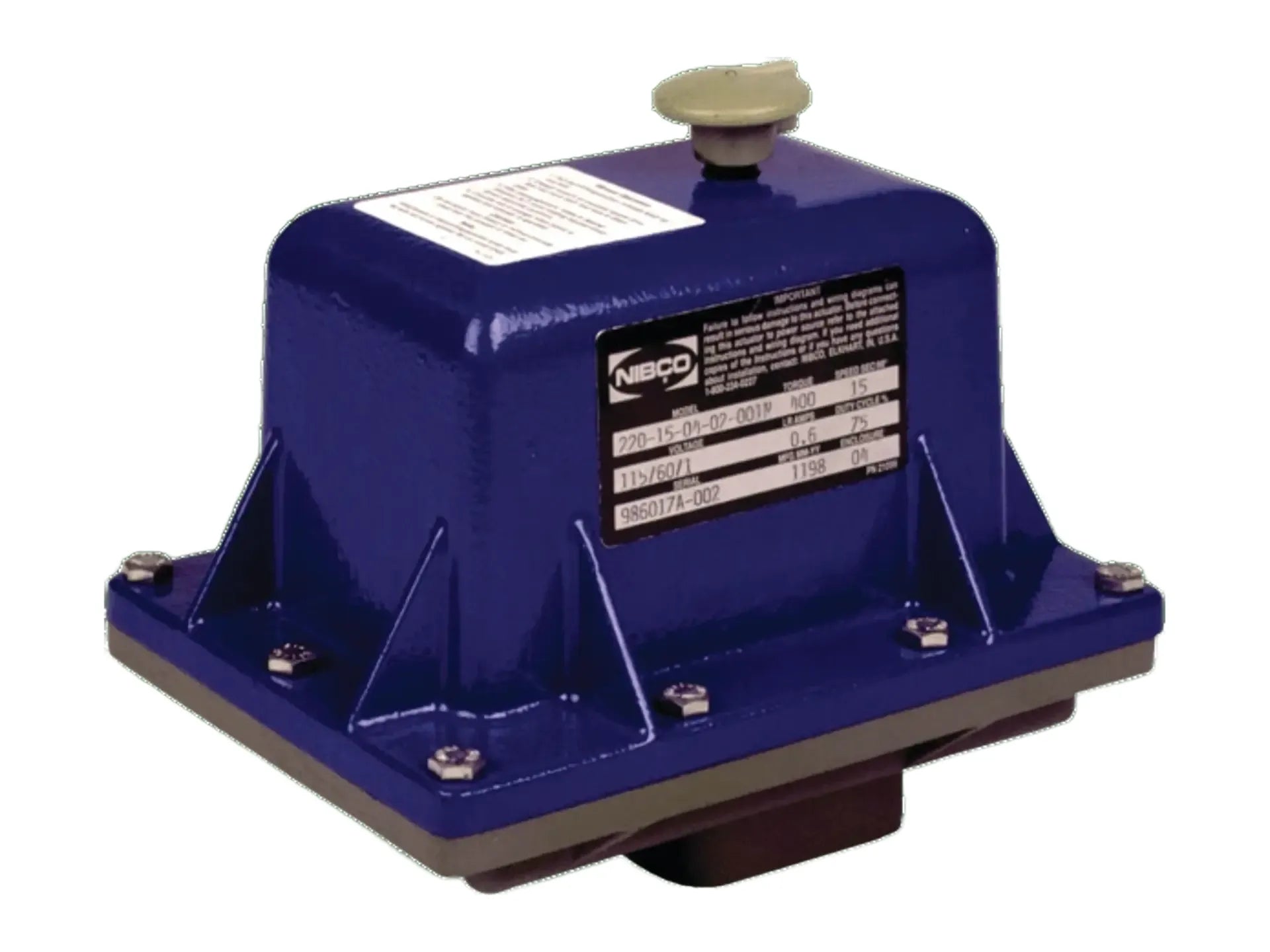

This NIBCO quality line of electric actuators is designed for quarter-turn applications, including ball valves, butterfly valves, plug valves, dampers, and vents. The Series 300 actuators offer a compact, rugged design with manual override capability. The actuators include a thermostat and heater. Enclosures are CSA certified to NEMA Type 4, 4X and 7. For automated or computer-controlled flow control systems, NIBCO electric actuators offer exceptional convenience and flexibility. Ideal for applications where the valve is not readily accessible, the actuators provide a labor-saving alternative to manual flow control regulation. These electric actuators and control devices are recommended for use in industrial process and commercial control applications. Please refer to NIBCO technical data sheets, valve selection guides and catalog for engineering and installation information. Engineered with a modular approach, NIBCO electric actuation systems offer the flexibility to actuate new valves or to retrofit existing valves with unprecedented ease. Electric actuation systems feature an ISO standard mounting design, assuring long-term industry acceptance. Choose NIBCO flow control products for the most specified, versatile and economical option in commercial and industrial applications. NIBCO actuation products are backed by the NIBCO limited warranty.
Features
- Heater and thermostat installed
- Permanently lubricated steel gear train
- Hardened steel drive shaft
- Rated at 30% duty cycle
- 4, 10, 15, or 30-second cycle
- Single phase capacitor run motor with thermal overload protection
- Motor brake standard on 4 and 10-second cycle units
- Declutchabale manual override
- Two 1/2" NPT conduit entrances
- Temperature range -40°F to +140°F
- Torque 150-600 in/lb
- Voltage 24 VDC, 110, 220 VAC
- Enclosures CSA certified to NEMA-4, 4X and 7
- Female ISO 5211 mount and drive
