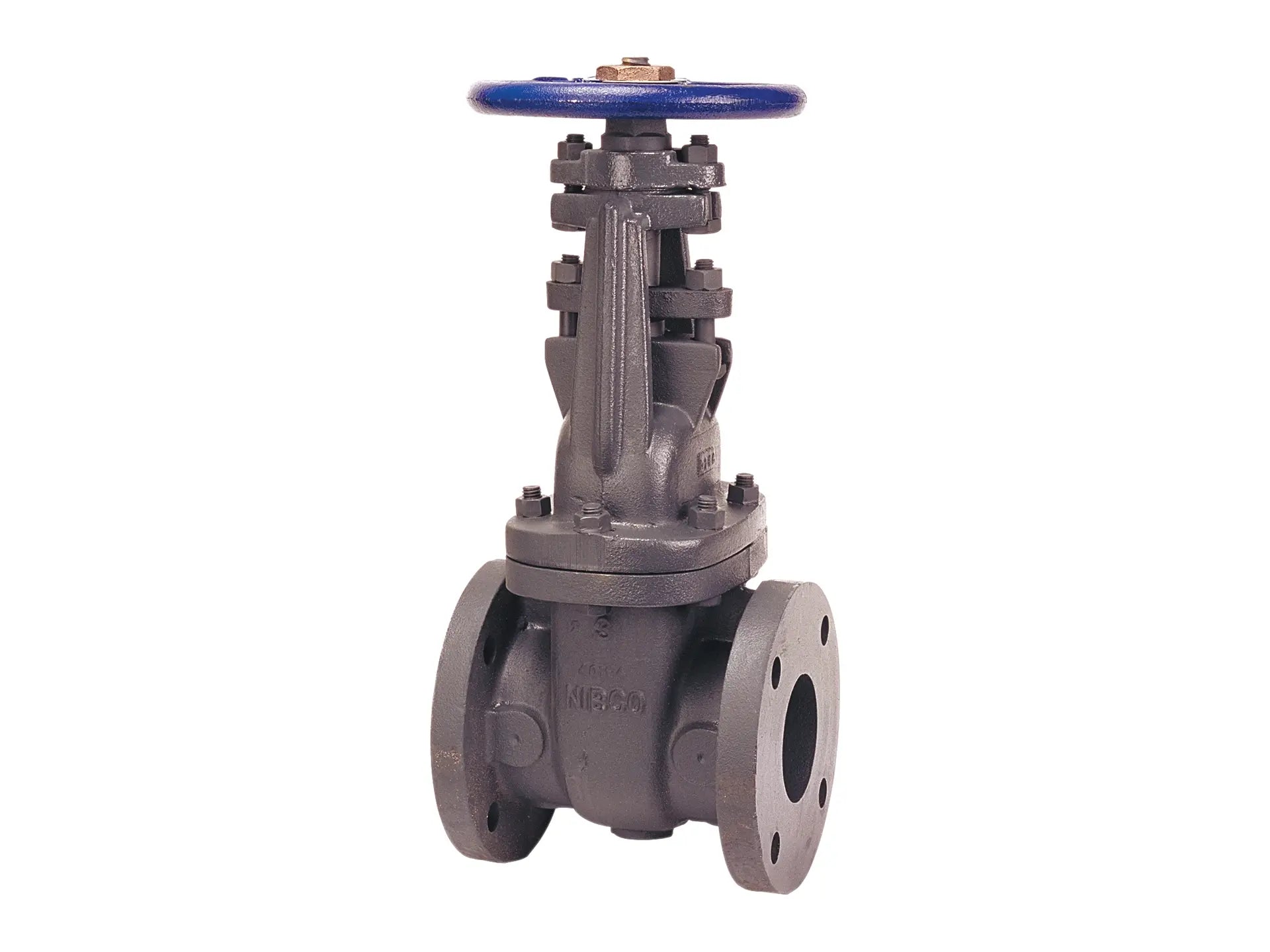

NIBCO F-617-O-Z 2" Flgd Cast Iron Gate Valve NHA3G8D

SKU: LSIUXF9E5B Part Number: NHA3G8D Model: F-617-O-Z

Price:
Sale price$1,936.95 Regular price$4,210.00

Save 54% Call 844-448-0880 for large volume pricing

Stock:
Typically Stocked - Call or Chat to confirm
 More payment options

Description

Please note this item is made to order and additional lead-times may apply.

This NIBCO cast iron gate valve provides full flow with minimal pressure drop. The cast iron gate valve features a Class 125 flanged, flat face end connection for easy installation and accessibility. Outside screw and yoke (OS&Y) gate valves are recommended when positive shutoff and a quick visual indicator of open/closed position is required. The OS&Y configuration protects the stem threads from contact with the media. This NIBCO flanged cast iron gate valve may be used in commercial and industrial applications, including hot and cold water, HVAC, steam, gas and other general utility services. Please refer to NIBCO technical data sheets, chemical resistance guides and catalogs for engineering and installation information. Choose NIBCO gate valves for the most specified, versatile and economical valve option in commercial, mechanical and industrial applications. NIBCO pressure rated valves are backed by the NIBCO 5-year 125% limited warranty.

Features

  • 125 psi/8.6 bar saturated steam to 353°F/178°C
  • 200 psi/13.8 bar non-shock cold working pressure
  • Outside screw and yoke
  • Bolted bonnet
  • Solid wedge
  • Iron body bronze mounted (IBBM)
  • Class 125 flanged flat face end connections
  • Use in U.S. drinking water applications is prohibited after January 3, 2014
  • Conforms to MSS SP-70

Specifications

Manufacturer NIBCO
Part Number NHA3G8D
Model F-617-O-Z
Type of Valve Gate
Nominal Pipe Size 2"
End Connection Type F -- Flanged
Seat Seal Material Bronze
Gate Stem Design Outside Screw and Yoke
Turns Operations Multi-Turn
Multi-Turn Operator Standard Handwheel
Multi-Turn Bonnet Design Bolted Bonnet
Pressure Rating (CWP) 200 psi/13.8 Bar CWP
Pressure Rating (SWP) 125 psi/8.6 Bar SWP
Material Cast Iron
Potable Water Code Not LL Comp not intend potable
UPC Code 039923696878
Length 18.03"
Width 14.11"
Height 8"
Country of Origin US
CA Proposition 65 Warning Statement WARNING: This product can expose you to chemicals including Lead, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov.

About NIBCO

NIBCO is a recognized manufacturer and brand leader of valves, fittings, and flow-control products.
