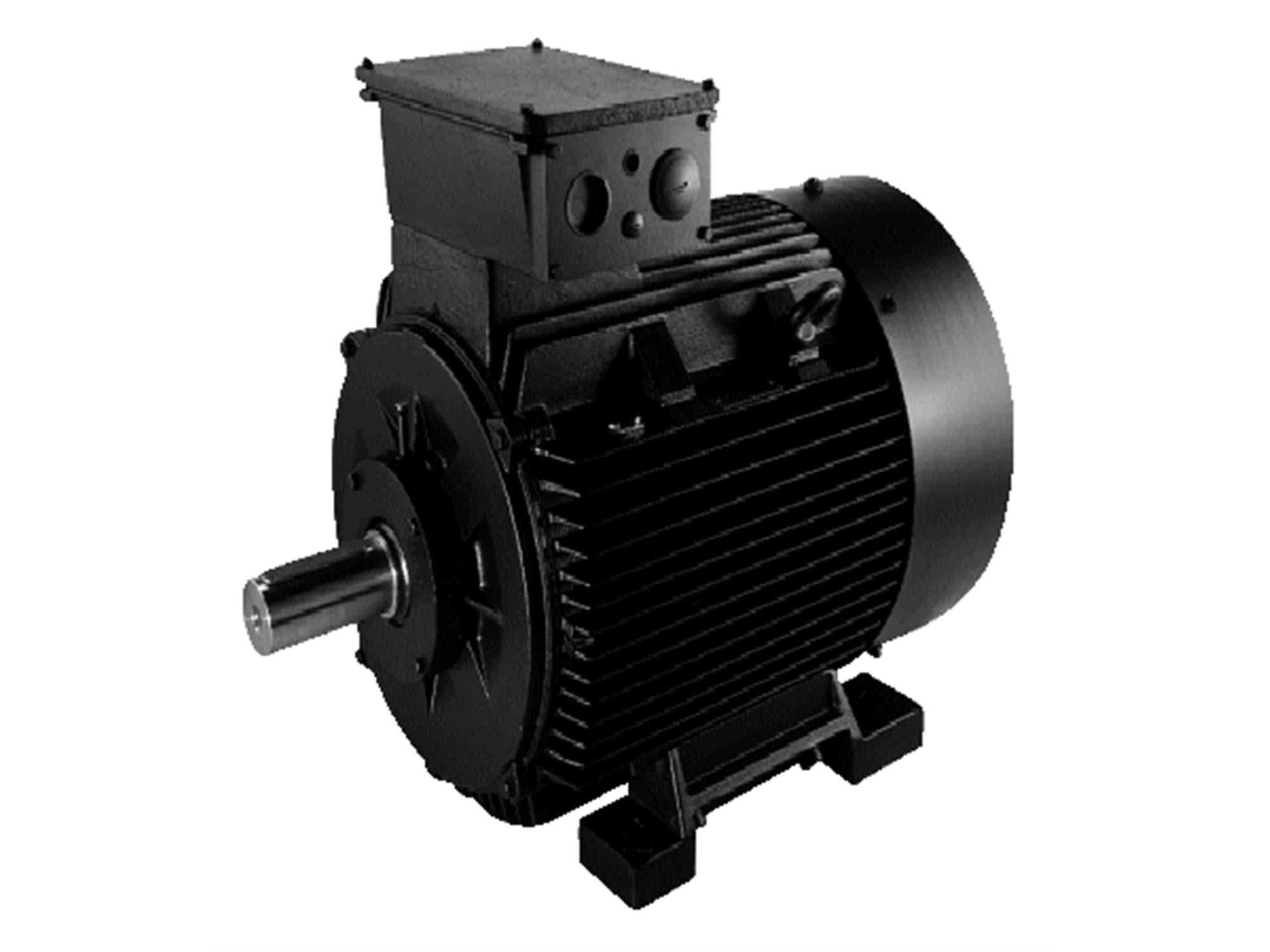

This motor is a standard model with a .5HP rating, operating on 1x115/230 volts at 60Hz.
Specifications
Manufacturer
Grundfos
Part Number
85700002
Shaft diameter
0.63 in
Length of shaft end
1.88 in
Approvals for motor
cURus/cCSAus
Energy approvals for motor
CC,
Cooling
TEFC
Maximum ambient temperature
104 °F
Flange size for motor
56C
Motor type
BALDOR
Rated power - P2
0.5 HP
Main frequency
60 Hz
Rated voltage
1 x 115/230 V
Service factor
1.60
Rated current
7.4/3.7 A
Full load SF current
9.8/4.9 A
Rated speed
3450 rpm
IE efficiency
62%
Motor efficiency at full load
62 %
Number of poles
2
Enclosure class (IEC 34-5)
TEFC
Insulation class (IEC 85)
B
Mounting design per IEC 34-7
NEMA type C
Bearing insulation type N-end
Steel Bearing
Net weight
22.6 lb
Color/Type
BLACK
