Please note this item is made to order and additional lead-times may apply.

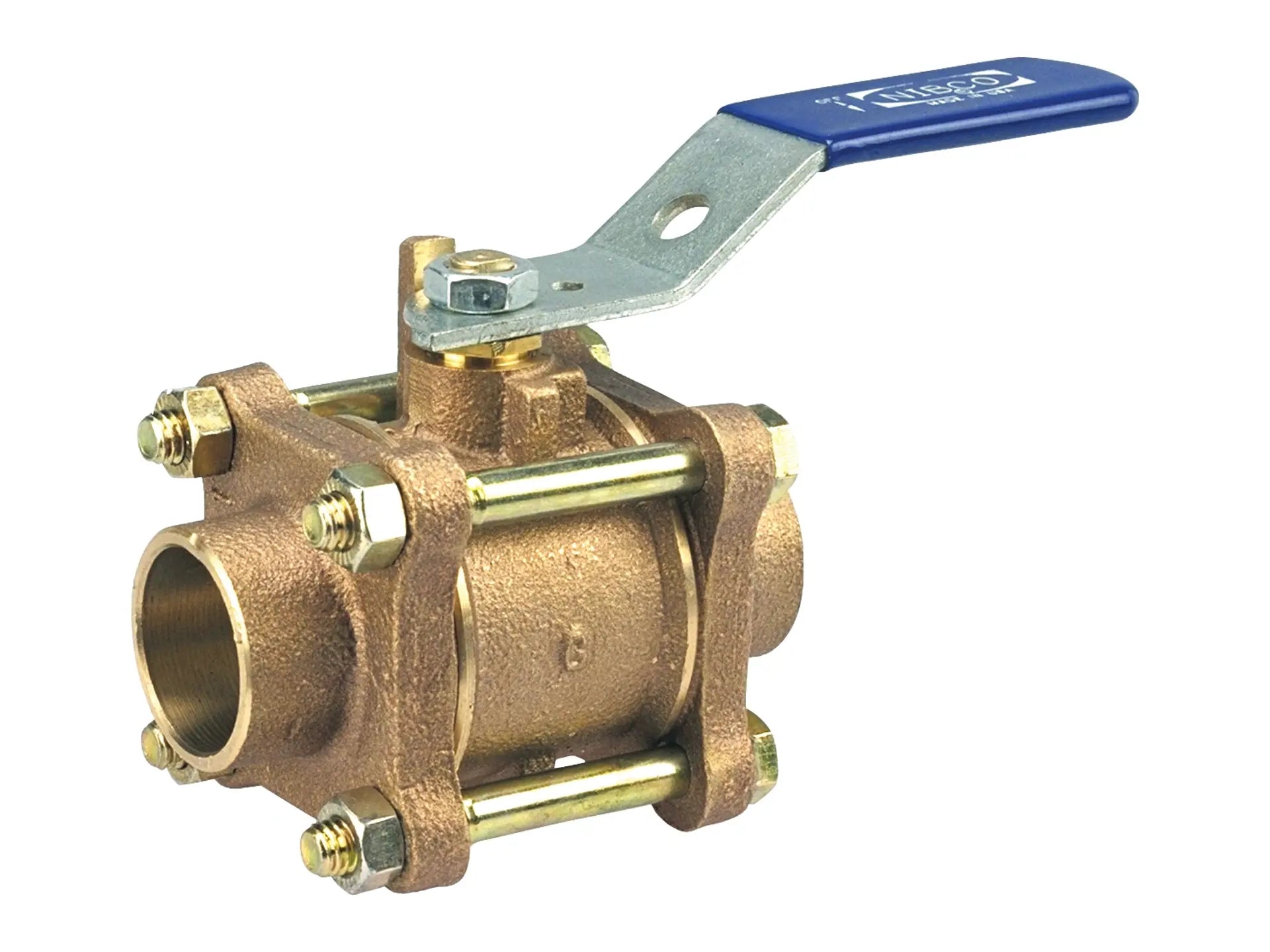

NIBCO bronze ball valve provides bubble-tight shutoff at 600 psi. The three-piece valve is ideal for hot/cold water, numerous gas applications, compressed air, vacuum service, condenser and chilled water. The PTFE seat ring and stainless steel stem and ball exhibit high chemical resistance properties and is recommended for many high pressure applications. It may be used for isolation and throttling (half open to full open only). The valve is repairable in-line. NIBCO bronze ball valve provides ease of operation with quarter-turn (90°) open to close. The three-piece valve features solder ends for easy installation. Options include NIB-SEAL insulated handle that eliminates condensate. Please refer to NIBCO technical data sheet, valve selection guide and catalog for engineering and installation information. Choose NIBCO ball valves for the most specified, versatile and economical valve option in commercial, mechanical and industrial applications. NIBCO ball valves are backed by the NIBCO INC. 5-year 125% limited warranty.
Features
- Valve pressure rating 600 psi 41.4 bar non-shock cold working pressure
- Maximum temperature rating 400°F
- Full port
- Stainless steel ball and stem
- Blowout-proof stem
- Vented ball
- Standard lever handle or locking lever, optional NIB-SEAL
- Solder end connections
- Dezincification resistant
- Use in U.S. drinking water applications is prohibited after January 3, 2014
- Conforms to MSS SP-110
