Description

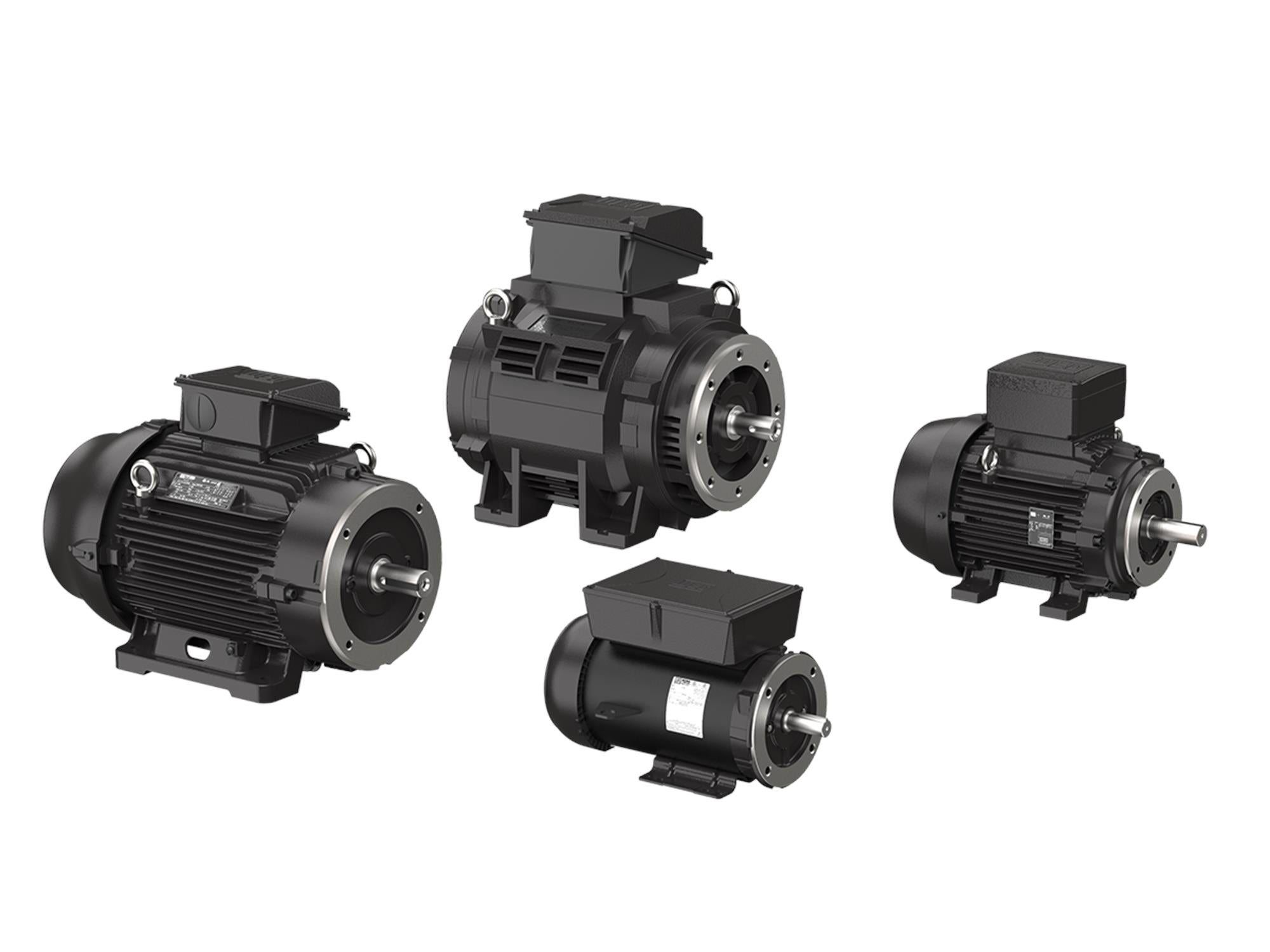

This motor is a WEG 213/5TC model with a 3x230/460 voltage configuration, 2-pole design, and 7.5 horsepower capacity. It belongs to the standard motors category and has a TEF EX enclosure type.
Specifications
| Manufacturer | Grundfos |
|---|---|
| Part Number | 99887784 |
| Shaft diameter | 1.37 in |
| Length of shaft end | 3.38 in |
| Approvals for motor | cURus/cCSAus |
| Exp. approval | NEC Ex |
| Energy approvals for motor | CC, |
| Explosion approval NEC | Y |
| Explosion approval by | UL |
| Explosion approval grade | Class I Division 1 |
| Cooling | IC 411 |
| Cable gland entry | Knock out |
| Range of ambient temperature | -4 .. 104 °F |
| Flange size for motor | 213TC |
| Motor type | WEG |
| Rated power - P2 | 7.5 HP |
| Main frequency | 60 Hz |
| Rated voltage | 3 x 208-230/460 V |
| Service factor | 1.15 |
| Rated current | 19,8-17,1/8,57 A |
| Maximum current consumption | 19,8-19,7/9,86 A |
| Starting current | 700 % |
| Full load SF current | 19.7/9.86 A |
| Cos phi - power factor | 0.90 |
| Rated speed | 3525 rpm |
| Rated full-load torque | 15.1 Nm |
| Locked-rotor torque | 240 % |
| Breakdown torque | 330 % |
| Moment of inertia | 0.47 lb ft² |
| IE efficiency | IE3 89,5% |
| IE Efficiency class | IE3 / NEMA Premium |
| Motor efficiency at full load | 89.5 % |
| Motor efficiency at 3/4 load | 88.5 % |
| Motor efficiency at 1/2 load | 85.5 % |
| Number of poles | 2 |
| Enclosure class (IEC 34-5) | TEFC |
| Insulation class (IEC 85) | F |
| Built-in motor protection | PTO |
| Tropic protec | No |
| Thermal protec | external |
| R1 | 2.0134 ohm |
| R2 | 2.0134 ohm |
| R3 | 2.0134 ohm |
| Winding 1 | PHASE 1 |
| Winding 2 | PHASE 2 |
| Winding 3 | PHASE 3 |
| Mounting design per IEC 34-7 | Nema assembly W-6 |
| Cos phi 1/2 | 0.78 |
| Cos phi 3/4 | 0.87 |
| Bearing insulation type N-end | N |
| Net weight | 214 lb |
| Color/Type | RAL 9005 |
| Country of origin | BR |
| Custom tariff no. | 8501.40.5040 |
