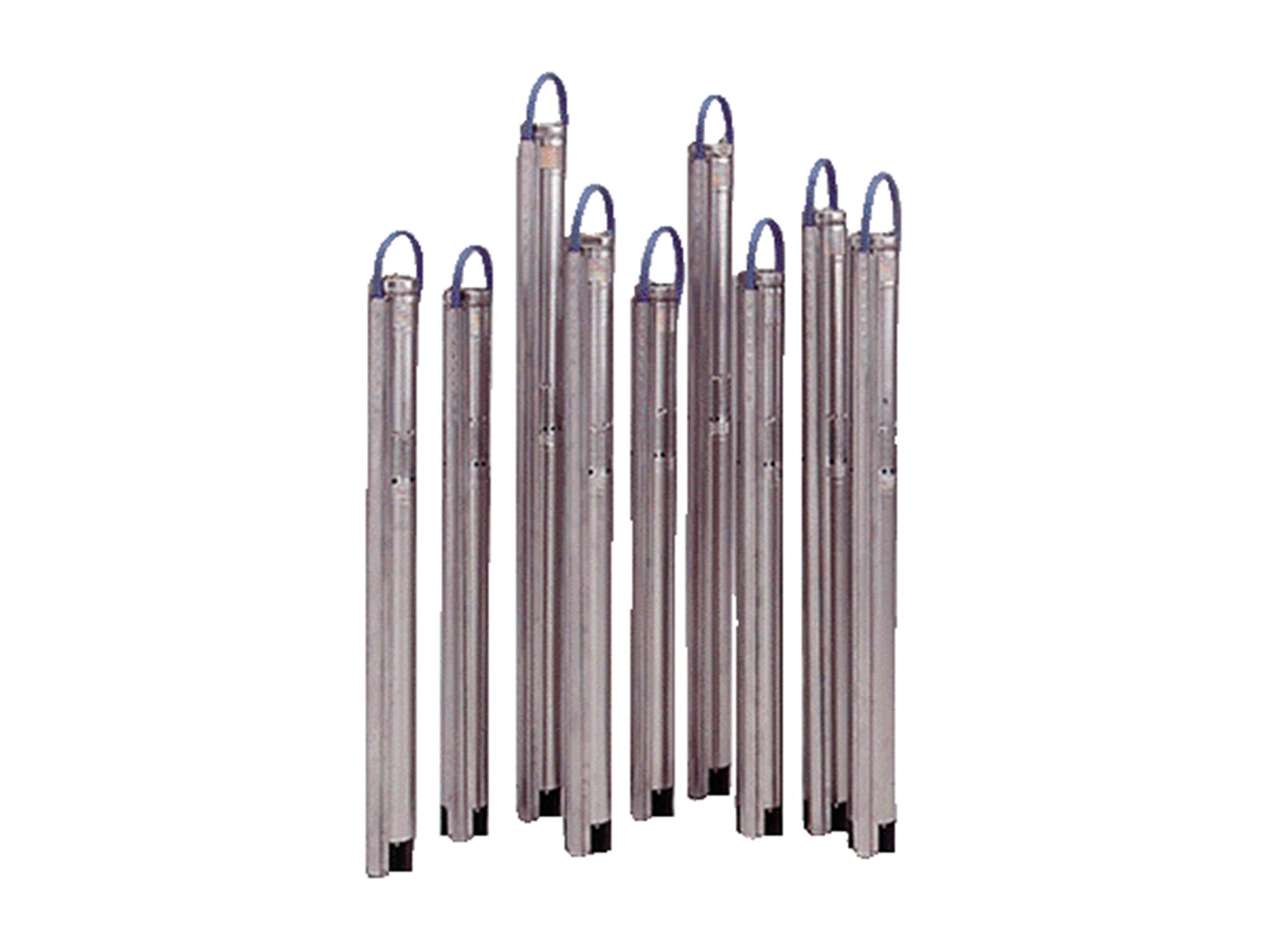

Grundfos 97778426, SQE-NE Submersible Pump for Ground Water Intake
Roll over image to zoom in Click on image to zoom
Grundfos 97778426, SQE-NE Submersible Pump for Ground Water Intake

Grundfos 97778426, SQE-NE Submersible Pump for Ground Water Intake

SKU: LSIW9YBA2O Part Number: 97778426
Price:
$5,149.00

Call 844-448-0880 for large volume pricing

Stock:
Obsolete
 More payment options

Description

This submersible pump is compact and designed for remedial pumping and liquid sampling from areas with contaminated groundwater.

Specifications

Manufacturer Grundfos
Part Number 97778426
Pump speed on which pump data is based 10700 rpm
Rated flow 8.81 US gpm
Rated head 331.4 ft
Stages 7
Approvals cULus
Curve tolerance ISO9906:2012 3B
Pump Number 96397447
Valve pump with built-in non-return valve
Pump Stainless steel, EN 1.4401, AISI 316
Impeller Composite, SOLEF 8808/0902 PVDF-CF10
Motor Stainless steel, DIN W.-Nr. 1.4401, AISI 316
Maximum operating pressure 217.56 psi
Pump outlet 1 1/4"NPT
Minimum borehole diameter 2.99 in
Pumped liquid Water
Liquid temperature range 32 .. 95 °F
Selected liquid temperature 68 °F
Density 62.29 lb/ft³
Motor type MSE3-NE
Power input - P1 2.05 kW
Rated power - P2 2.08 HP
Main frequency 50 Hz
Rated voltage 1 x 200-240 V
Rated current 11 A
Power factor 1.00
Rated speed 10700 rpm
Start. method direct-on-line
Enclosure class (IEC 34-5) IP68
Insulation class (IEC 85) F
Built-in motor protection Y
Thermal protec internal
CU 300/CU 301 communication with CU 300/CU 301 possible
Net weight 13 lb
Gross weight 14.3 lb
Sales region N-AMREG

Documents

A Wide Range (English) (Product brochure)

SQ, SQE, SQE-NE - submersible pumps (Data booklet)
