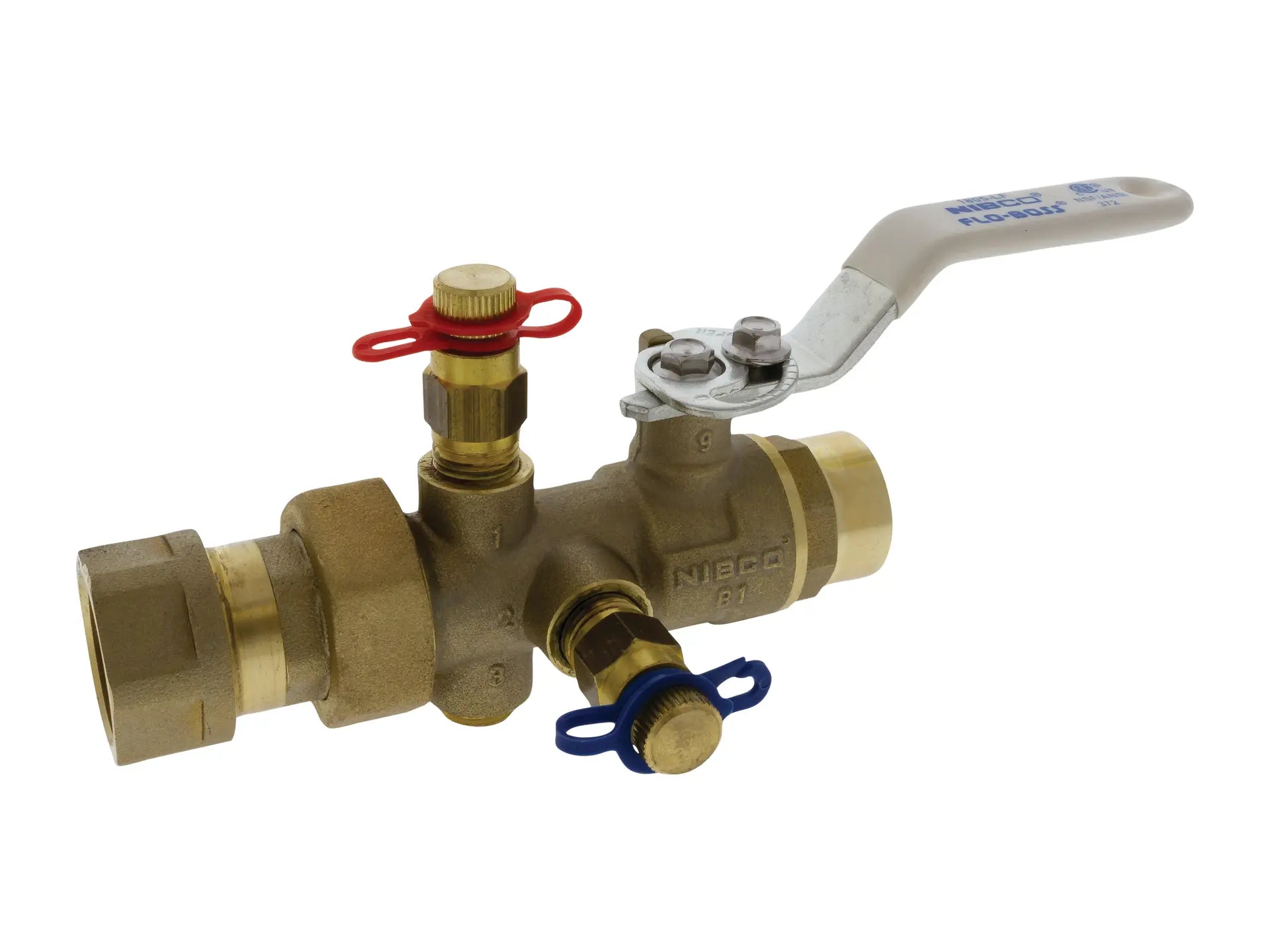

NIBCO TS-1805-66-V8 2" FIP x SWT Manual Balancing Valve NMFS12DADD

SKU: LSIWAMRRJ2 Part Number: NMFS12DADD Model: TS-1805-66-V8

Price:
Sale price$635.95 Regular price$1,051.00

Save 39% Call 844-448-0880 for large volume pricing

Stock:
Typically Stocked - Call or Chat to confirm
 More payment options

Description

Please note this item is assembled to order and additional lead-times may apply.

NIBCO makes it easy to balance mechanical and plumbing systems with our new lead-free and dezincification-resistant manual balancing valve. Our lead-free 1805 Series fixed orifice manual balancing valve is faster and easier to set because it does not require any special calculators or meters. Integral pressure temperature ports provide a direct readout across the orifice; optimum flow is quickly and accurately determined by simply measuring the differential pressure. This NIBCO 1805 manual balancing valves are equipped with a union end that will provide up to a double reduction in inlet connection size. A isolation feature and a memory stop is also provided for system maintenance. The integral memory stop will return the system its original setting upon completion. NIBCO makes it easy to balance mechanical and plumbing systems with our new lead-free and dezincification-resistant manual balancing valve. Our lead-free 1805 Series fixed orifice manual balancing valve is faster and easier to set because it does not require any special calculators or meters. Integral pressure temperature ports provide a direct readout across the orifice; optimum flow is quickly and accurately determined by simply measuring the differential pressure. This NIBCO 1805 manual balancing valves are equipped with a union end that will provide up to a double reduction in inlet connection size. A isolation feature and a memory stop is also provided for system maintenance. The integral memory stop will return the system its original setting upon completion. This NIBCO lead-free manual balancing valve provides the ultimate solution for a wide range of application requirements to ensure a balanced plumbing system. NIBCO valves and components are backed by the NIBCO 5-year 125% limited warranty.

Features

  • Maximum Working Pressure 600 psi at 100°F
  • Maximum temperature rating 250°F at 150 psi
  • Lead-free
  • PTFE Seats
  • EPDM O-ring
  • Stainless Steel Ball and Stem
  • Third-party certified to NSF/ANSI 61 and 372

Specifications

Manufacturer NIBCO
Part Number NMFS12DADD
Model TS-1805-66-V8
Type of Valve Circuit Balancing
Series TS-1805-66
Nominal Pipe Size 2"
End Connection Type FIP x SWT
Turns Operations Quarter-Turn
Material Lead-Free Brass
Potable Water Code LL Compliant NSF/ANSI 372
UPC Code 039923402578
Length 12.94"
Width 5"
Height 3.6"
Country of Origin CN
CA Proposition 65 Warning Statement WARNING: This product can expose you to chemicals including Lead, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov.

About NIBCO

NIBCO is a recognized manufacturer and brand leader of valves, fittings, and flow-control products.
