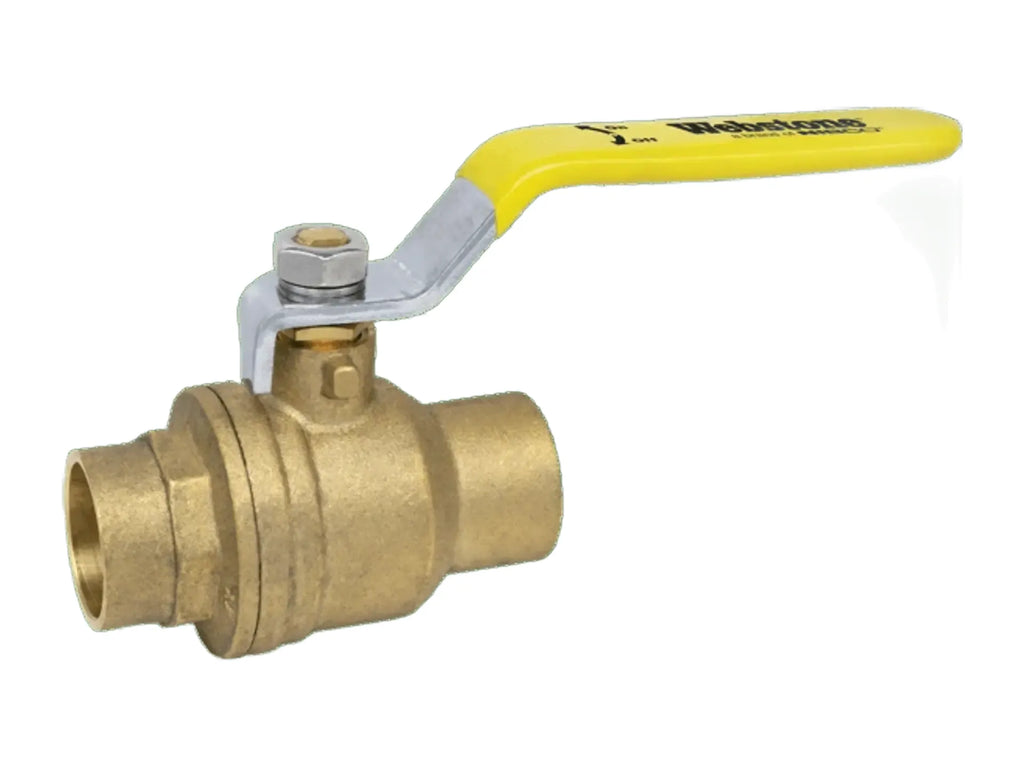

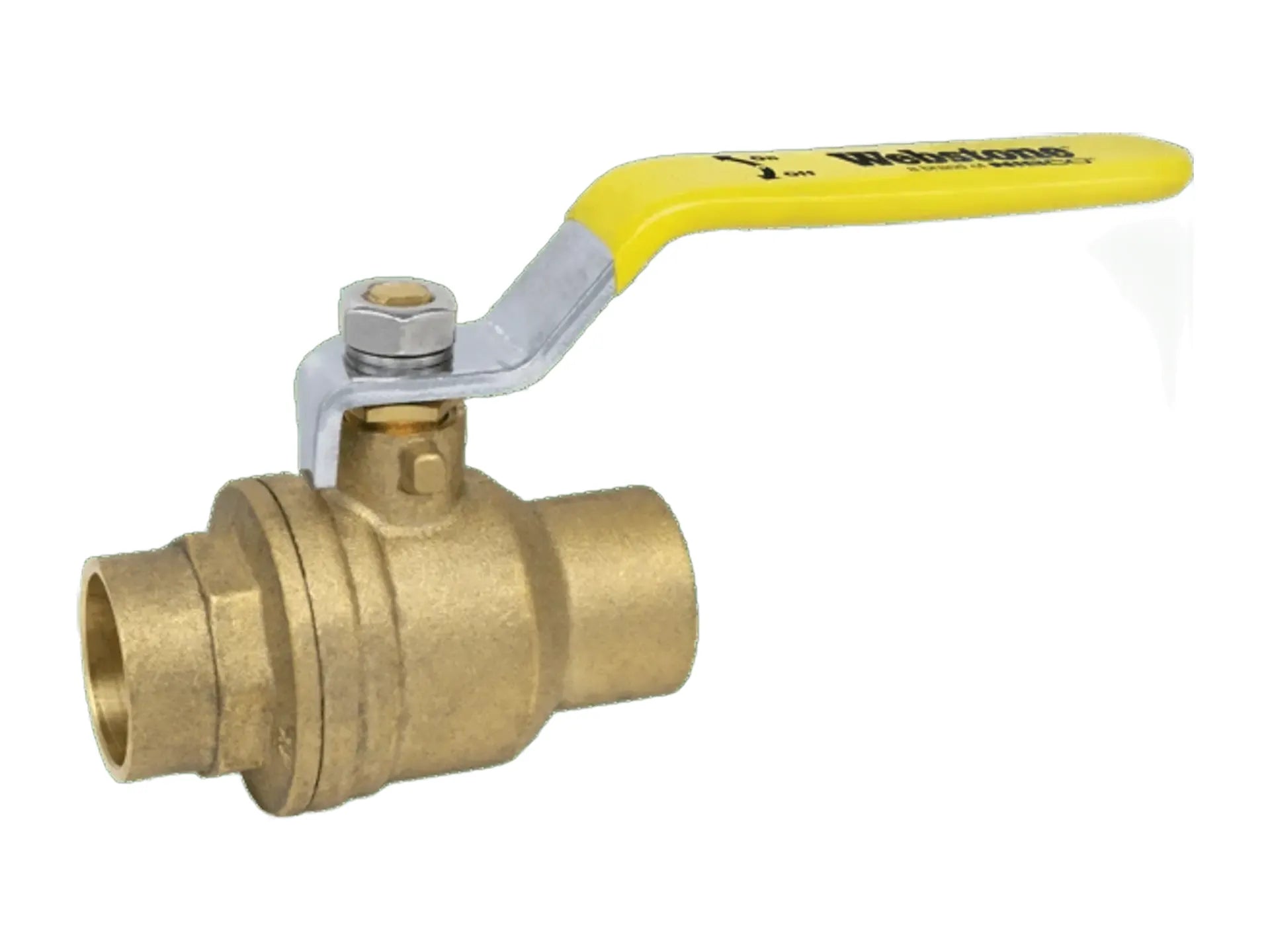

Webstone SWT-X070W 1" Brass Ball Valve H-50704W

SKU: LSIWD05CNU Part Number: H-50704W Model: SWT-X070W

Price:
Sale price$36.95 Regular price$48.36

Save 24% Call 844-448-0880 for large volume pricing

Stock:
Typically Stocked - Call or Chat to confirm
 More payment options

Description

Full port forged brass ball valve with adjustable packing gland. Easily control flow with this quarter-turn valve. Designed for use with water, oil, and glycol mix in residential or commercial plumbing and heating systems. Refer to the specification sheets for additional technical information. A limited lifetime warranty backs all Webstone products.

Features

  • Controls flow with a quarter-turn lever handle
  • Ball valve with integral spring check saves labor, space, and leak paths
  • Adjustable packing gland
  • Models available to satisfy all state and federal low-lead laws
  • Available in FIP, COMP, SWT, PRS, PEX, PEX x FIP
  • Certified to NSF/ANSI 61 & 372
  • ANSI Z21.15, NSF/ANSI 61-8, NSF/ANSI 14
  • CSA 9.1

Specifications

Manufacturer Webstone
Part Number H-50704W
Model SWT-X070W
Old Material Number 50704W
UPC 018394023826
System Use Residential Plumbing, Commercial Plumbing, Heating
Potable Water Code LL Compliant NSF/ANSI 372
Material LF DZR Brass
Type of Item Valve
Nominal Pipe Size 1"
Type of Valve Ball Valve
Valve End Connection Type SWT
End Connection Fusion Weld
Max Temperature 200°F Max
Valve Pressure Rating (WBS) 600 psi CWP Max
Length 6.04"
Width 3.46"
Height 1.89"
CA Proposition 65 Warning Statement WARNING: This product can expose you to chemicals including Lead, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov.
Notes and Disclaimer P65-Lead

About Webstone

Founded in 1954, Webstone is recognized as an industry leader for innovative design of residential and commercial valves used in plumbing, hydronic, radiant, solar and geothermal applications.
