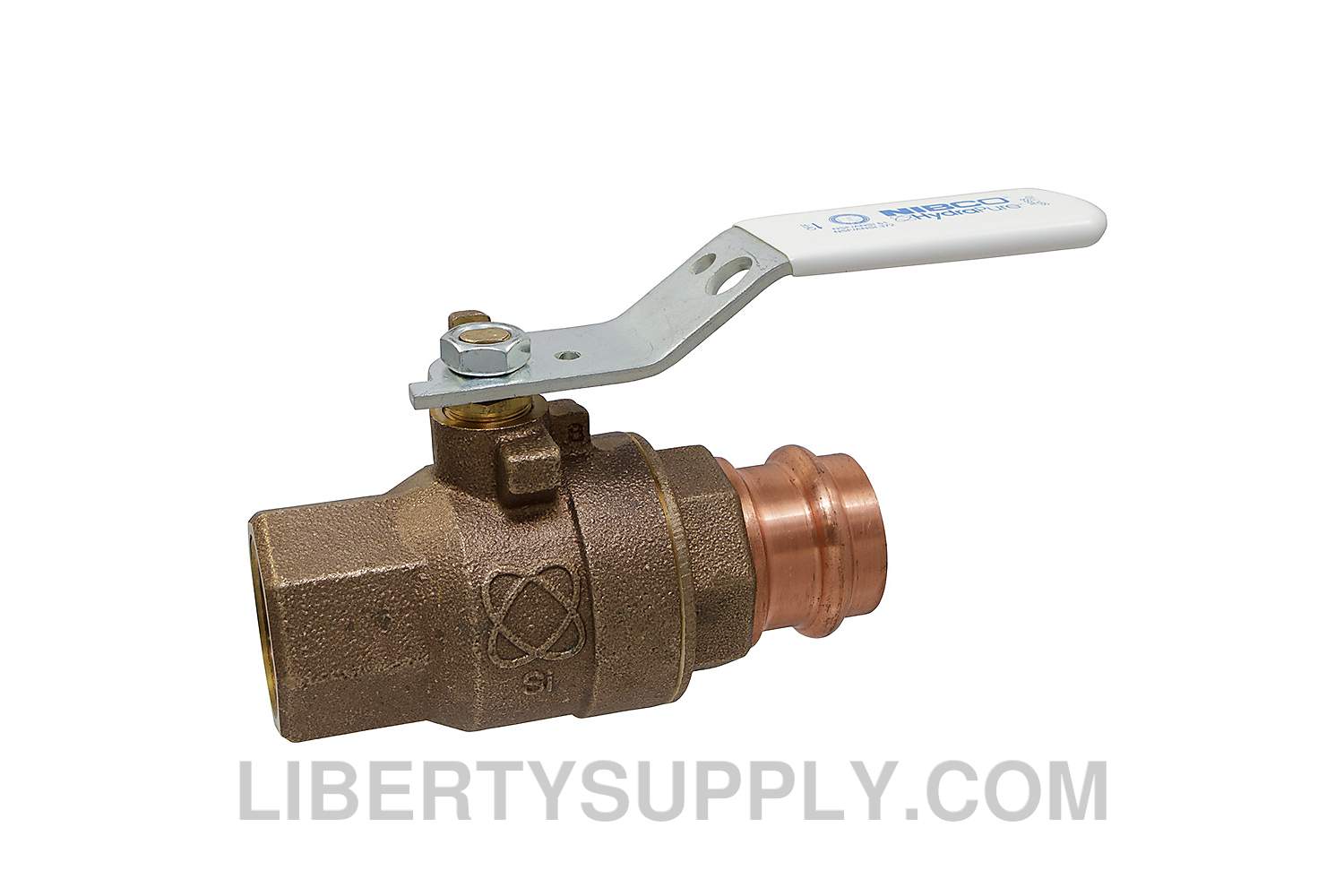

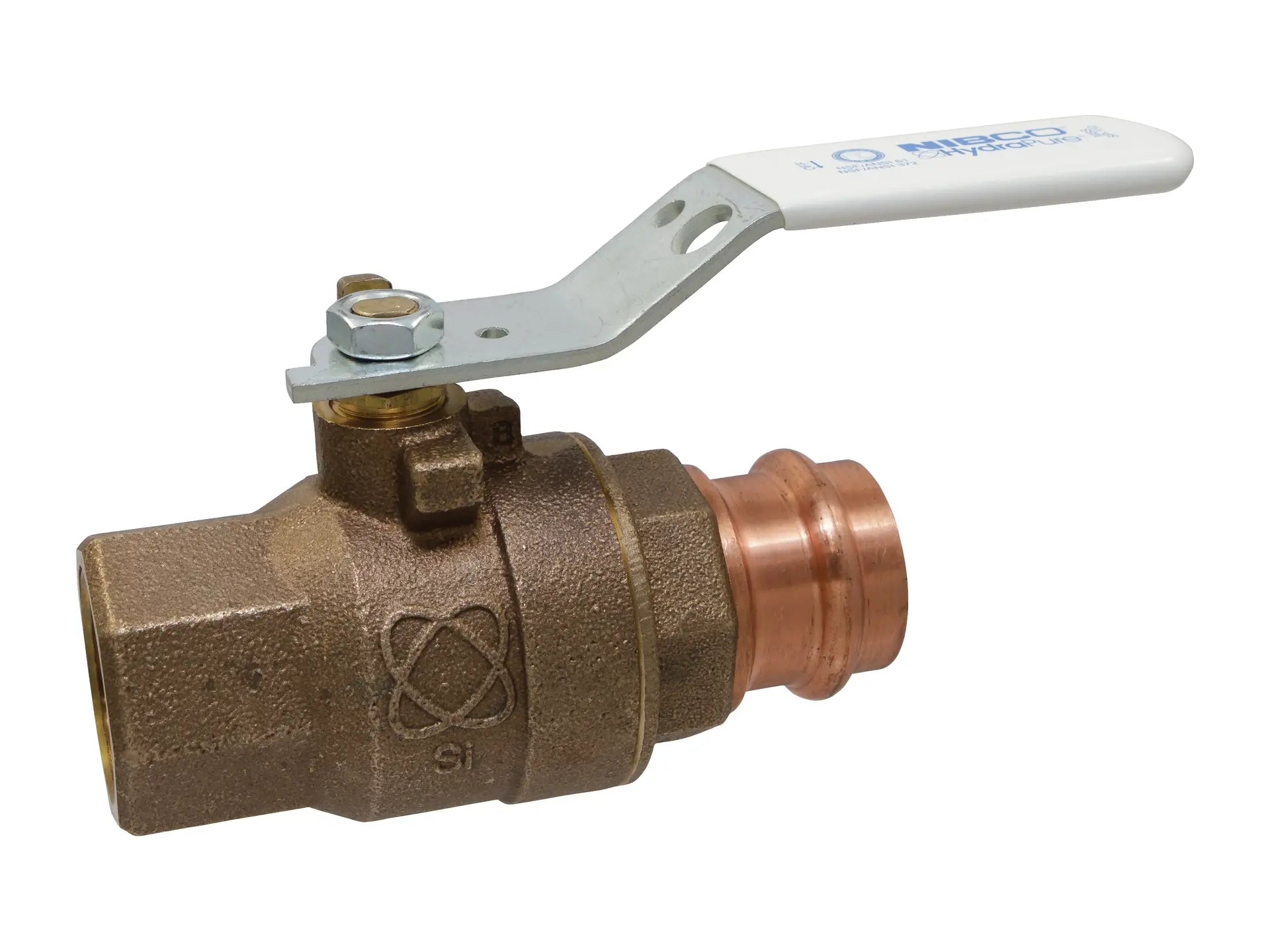

NIBCO TPC-585-80-LF 2" FPT x Press LF Press Ball Valve NF850XD

SKU: LSIX1JUZW0 Part Number: NF850XD Model: TPC-585-80-LF

Price:
Sale price$441.95 Regular price$788.00

Save 44% Call 844-448-0880 for large volume pricing

Stock:
Typically Stocked - Call or Chat to confirm
 More payment options

Description

This NIBCO Press System ball valve body is manufactured from lead free HydraPure Performance Bronze alloy and is dezincification resistant. The ball valve is designed with threaded by press-to-connect copper end connections with an inboard bead and EPDM O-ring for quick and easy copper to copper joinery. Properly applying pressure from a press-fit tool tightens the O-ring onto the tube, ensuring a clean, permanent, watertight seal in seconds, with no flame, solder or flux. This ball valve features a new design that allows a leak to occur during testing if the press connection is not properly crimped. This NIBCO Press System is user friendly, quick and easy to install. When properly crimped a unique "N" witness mark is clearly visible. The lead free HydraPure Performance Bronze ball valve is specifically designed for use in systems that deliver water for human consumption. Please refer to NIBCO technical data sheets and catalogs for engineering and installation information. NIBCO Press System applies the proven performance of press technology to NIBCO valves and fittings - the most specified flow control products in the industry. This NIBCO Press System features a full range of precision engineered copper fittings, bronze valves, accessories, pressing tools, jaws and chains. NIBCO Press System valves are backed by a 5-year limited warranty. Because of its longstanding reputation for innovation and precision in design and manufacturing, NIBCO is the preferred brand in the industry.

Features

  • Valve pressure rating 250 psi/17.2 bar non-shock cold working pressure
  • Maximum service temperature 250°F
  • Full port
  • Bronze trim blowout-proof stem
  • Reinforced PTFE seat rings
  • Threaded x press female end connections
  • Press leak-detection feature
  • Multiple handle options, including NIB-Seal®
  • Dezincification resistant
  • Lead-free
  • Conforms to MSS SP-110
  • NSF/ANSI-61-8 Commercial Hot 180°F (includes Annex F and G)
  • NSF/ANSI-372
  • IAPMO/ANSI Z1157

Specifications

Manufacturer NIBCO
Part Number NF850XD
Model TPC-585-80-LF
Series TPC-585-80-LF
Type of Valve Ball
Nominal Pipe Size 2" x 2"
End Connection Type Female NPT x Press
Material Lead-Free Bronze
Ball Body Type Two-Piece
Ball Operator CS Standard Lever Handle
Ball Port Style Full Port
Ball Stem Material Silicon Bronze
Trim Package Bronze Trim
Turns Operations Quarter-Turn
Potable Water Code LL Compliant NSF/ANSI 372
UPC Code 039923367525
Length 11.16"
Width 5.41"
Height 3.69"
Country of Origin US
CA Proposition 65 Warning Statement WARNING: This product can expose you to chemicals including Lead, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov.
Notes and Disclaimer NIBCO® Press System is a registered trademark of NIBCO INC. Performance Bronze® is a registered trademark of NIBCO INC.

About NIBCO

NIBCO is a recognized manufacturer and brand leader of valves, fittings, and flow-control products.
