Name: Grundfos 98490791, BM 30-11 NBR Encapsulated Pump for Water Supply
Brand: Grundfos
SKU: LSIX907XAO
Price: 24129.0 USD
Availability: OutOfStock

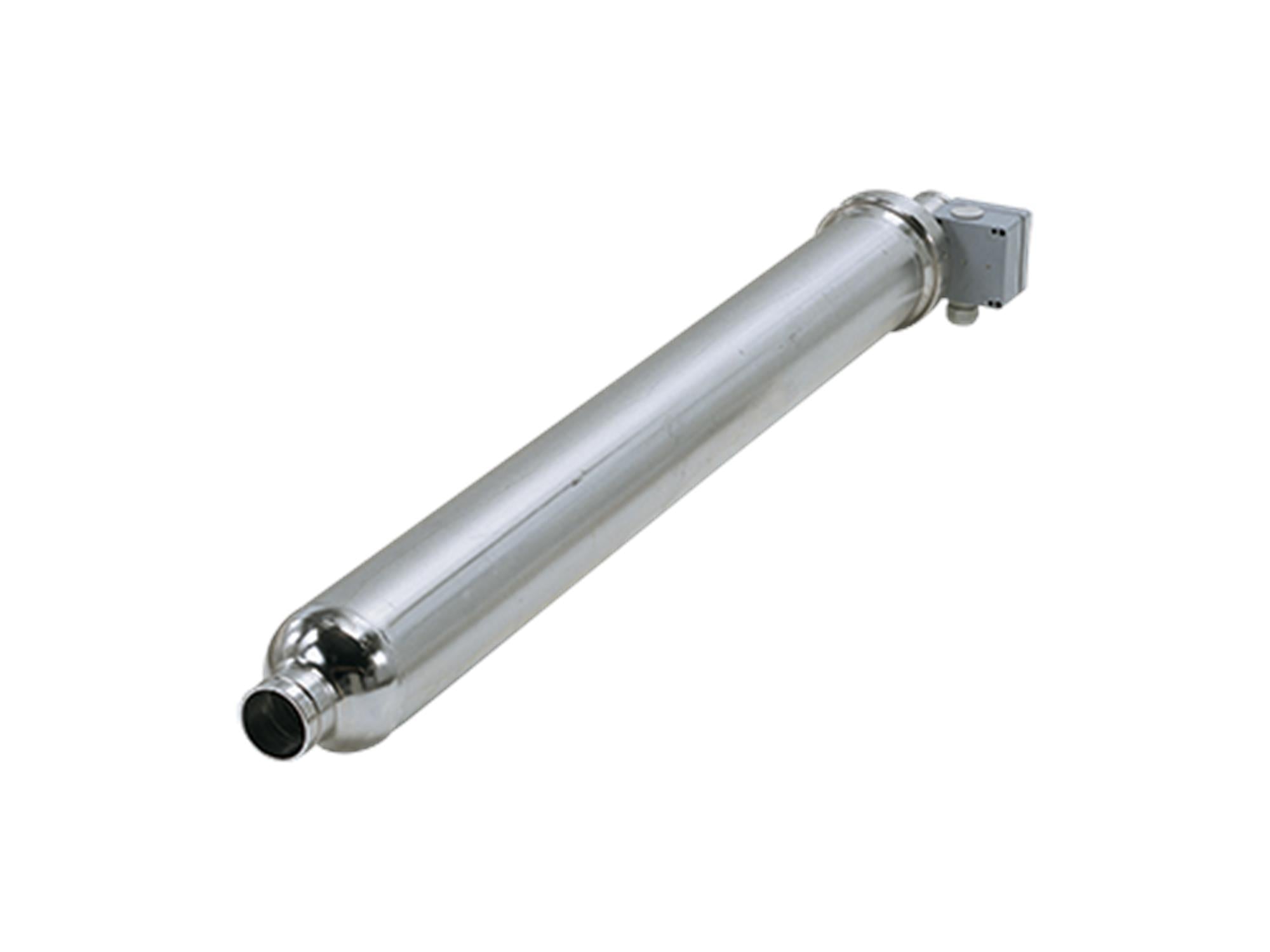

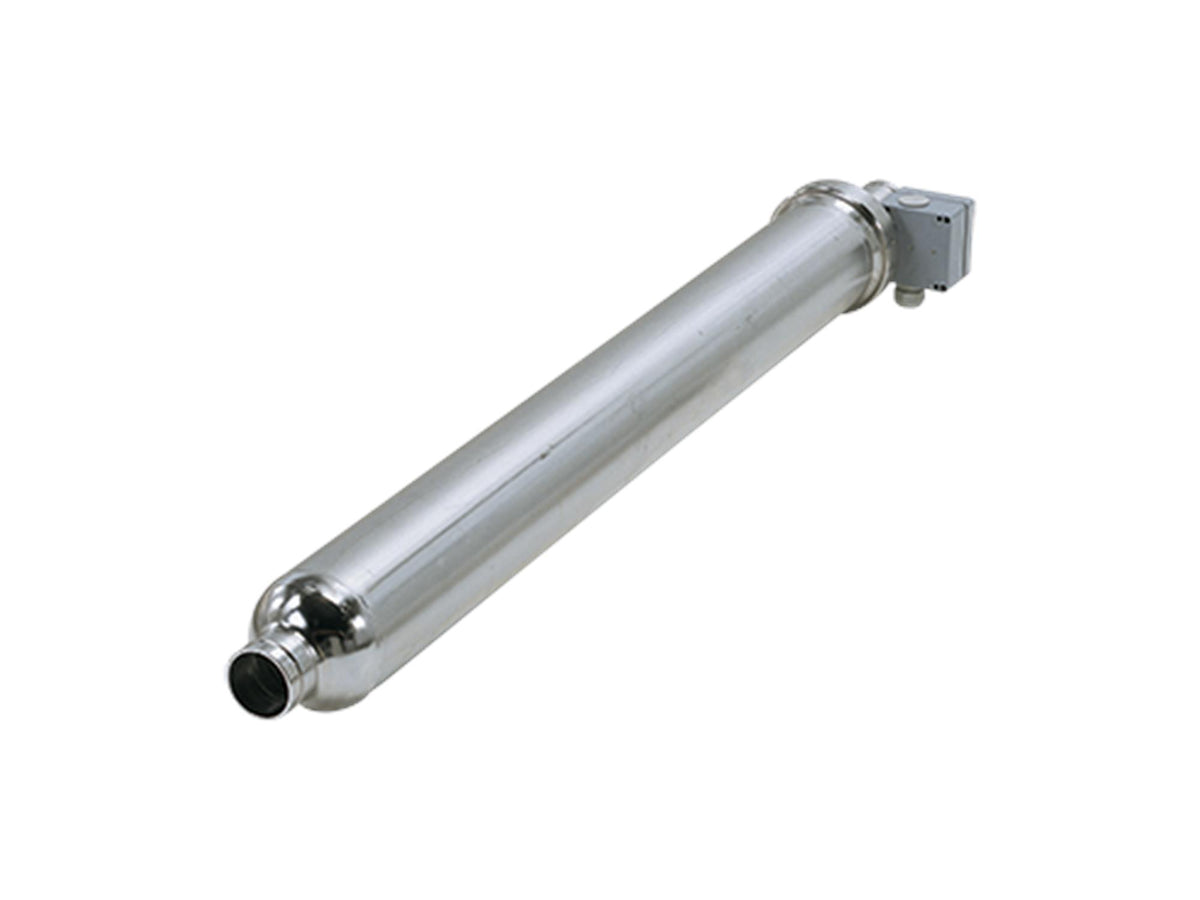

Grundfos 98490791, BM 30-11 NBR Encapsulated Pump for Water Supply

Roll over image to zoom in Click on image to zoom

This encapsulated pump is a modified standard submersible pump designed for various industrial filtration applications and water supply. It has an asynchronous submersible squirrel-cage motor, making it suitable for drinking water treatment, desalination, and industrial water supply and transfer.

Manufacturer	Grundfos
Part Number	98490791
Rated flow	132 US gpm
Rated head	278.9 ft
Stages	11
Curve tolerance	ISO9906:2012 3B
Pump	Stainless steel, DIN W.-Nr. 1.4301, AISI 304
Impeller	Stainless steel, EN 1.4301, AISI 304
Motor	Stainless steel, DIN W.-Nr. 1.4301, AISI 304
Code for rubber	NBR
Sleeve	Stainless steel, AISI 304, EN 1.4301
Maximum operating pressure	1199.46 psi
Maximum permissible inlet pressure	725.19 psi
Maximum outlet pressure	1189.31 psi
Pipe connection standard	PJE
Pipe connection	89 mm
Pumped liquid	Water
Maximum liquid temperature	104 °F
Selected liquid temperature	68 °F
Density	62.29 lb/ft³
Rated power - P2	12.5 HP
Main frequency	50 Hz
Rated voltage	3 x 380-400-415 V
Rated current	21.8-21.2-21.2 A
Starting current	480-520-550 %
Cos phi - power factor	0.84-0.82-0.78
Start. method	direct-on-line
Enclosure class (IEC 34-5)	IP66
Thermal protec	external
Built-in temperature transmitter	yes
Minimum efficiency index, MEI ≥	0.50
Net weight	227 lb
Gross weight	320 lb
Shipping volume	18.4 ft³

Grundfos has a wide range of products, pump solutions, and services for all applications. Grundfos' energy-efficient pumps provide comfort and move water, wastewater, and industrial liquids all over the world.
