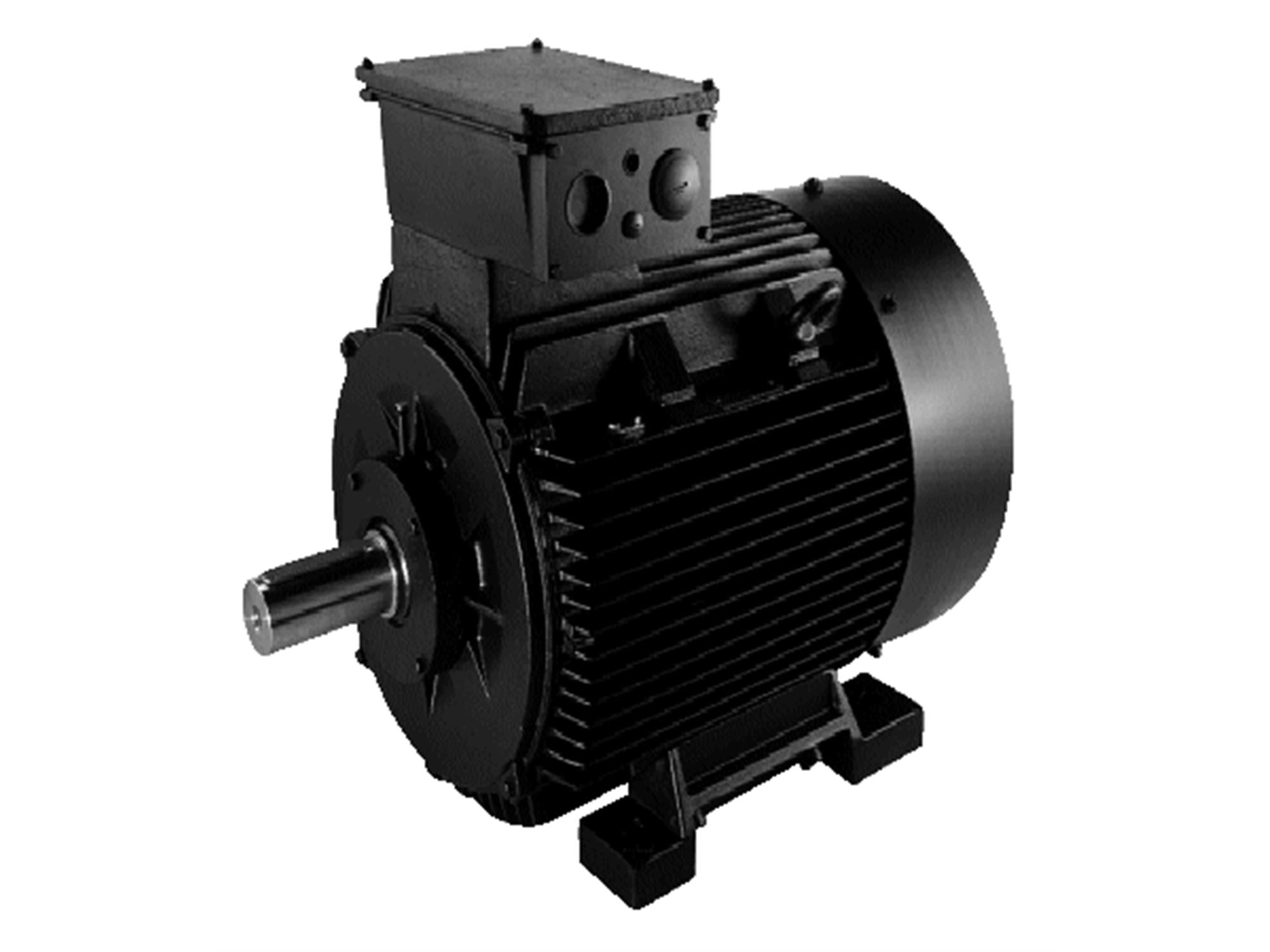

Name: Grundfos 84Z04014, MTR2 Baldor Motor 182TC 3HP TEFC
Brand: Grundfos
SKU: LSIXG2DGBH
Price: 1226.95 USD
Availability: OutOfStock

Grundfos 84Z04014, MTR2 Baldor Motor 182TC 3HP TEFC

Roll over image to zoom in Click on image to zoom

This motor is a Baldor 182TC model with a MTR2 configuration, designed for use in standard applications. It operates on a single-phase power supply of 115/208-230 volts and delivers 3 horsepower. The motor has a Totally Enclosed Fan Cooled (TEFC) design, ensuring protection against environmental factors.

Manufacturer	Grundfos
Part Number	84Z04014
Shaft diameter	1.13 in
Length of shaft end	2.63 in
Approvals for motor	cURus/cCSAus
Energy approvals for motor	CC,
Cooling	TEFC
Maximum ambient temperature	104 °F
Flange size for motor	182TC
Motor type	BALDOR
Rated power - P2	3 HP
Main frequency	60 Hz
Rated voltage	1 x 115/208-230 V
Service factor	1.15
Rated current	29/16-14,5 A
Full load SF current	31,8/18-16,9 A
Rated speed	3450 rpm
IE efficiency	75%
Motor efficiency at full load	75 %
Number of poles	2
Enclosure class (IEC 34-5)	TEFC
Insulation class (IEC 85)	F
Built-in motor protection	NONE
Tropic protec	No
Thermal protec	internal
Bearing insulation type N-end	Steel Bearing
Net weight	71.6 lb
Color/Type	BLACK
Country of origin	US
Custom tariff no.	8501.52.4000

Baldor motors (I & O instructions)

WEG motors, GB/ES version (I & O instructions)

WEG motors, Additional languages (I & O instructions)

Grundfos has a wide range of products, pump solutions, and services for all applications. Grundfos' energy-efficient pumps provide comfort and move water, wastewater, and industrial liquids all over the world.

From the Atoms & Bits Blog

Grundfos Water Pumps - Comprehensive Guide

Published: Jan 08, 2026 By: Lucas Gasparotto

Discover Grundfos water pump models, learn about their benefits, technical details, main applications, controls, arrangement tips, and let Liberty Supply help you choose the ideal Grundfos pump today.

Save 12%

Grundfos

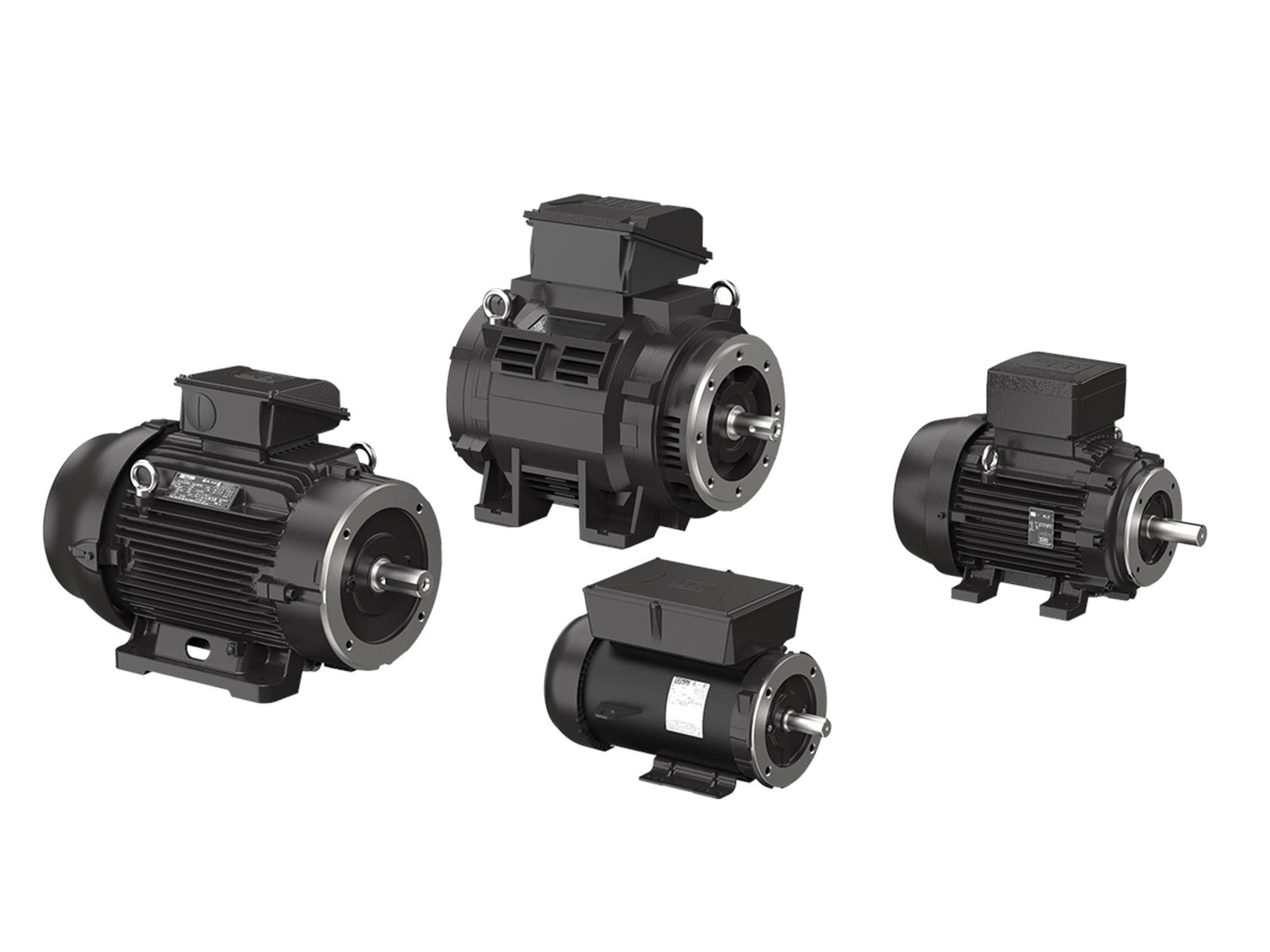

Grundfos 99883322, 3HP TEFC Motor 115/208-230V Single-Phase
