Taco 49025DM-125, Dirt Separator, 2.5" Flanged, 125 PSI, With On-Off Magnet

This Taco 4900 Series Commercial Dirt Separator, Model 49025DM, is designed to remove dirt and debris from hydronic heating and cooling systems. The switchable on/off magnet allows for easy cleaning of the separator without shutting down the system. With a 2.5" flanged connection and a maximum pressure rating of 125 psi, this separator is capable of handling high flow rates in commercial applications. The unique design of the separator creates a low velocity zone that allows dirt and debris to settle out of the system fluid, which can then be easily removed through the blow-down valve. This product is an effective solution for maintaining system efficiency and preventing damage to pumps, valves, and other components in hydronic systems.

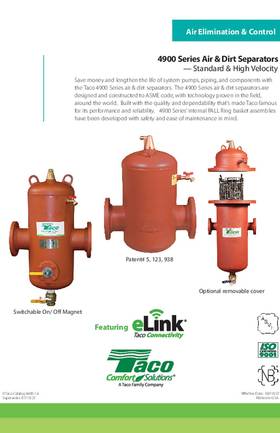

4900 Series Overview

Taco 4900 Series Commercial Air & Dirt Separators efficiently remove air, dirt, and other contaminants from system components, enhancing efficiency and longevity. They use patented PALL ring technology to eliminate micro-bubbles and debris, while an optional magnet collects iron oxide and magnetite.

These separators also feature a vent mechanism for releasing merged micro-bubbles and a blowdown valve to dispose of dirt. The magnet, easily activated by a handle, simplifies maintenance and magnetite removal. They are suitable for systems with variable speed and constant flow.

Taco 4900 Series separators are constructed and tested to ASME Section VIII, Div. 1 standards. Their design is guided by computerized selection, tailored for each application. All manufacturing occurs in-house, ensuring quality. Independent third-party tests validate performance.

Features & Benefits

• Available with high power switchable ON/OFF magnet for black iron oxide and magnetite removal
• Designed, constructed, and tested to ASME Section VIII, Div. 1 requirements
• Integral stainless steel PALL ring basket
• Furnished with air vent (dirt and air/dirt models furnished with full port blowdown valve)
• Available with removable cover

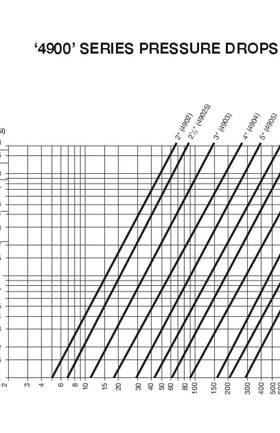

• 2 psi or less pressure drop at flow rates shown on submittal
• Higher maximum pressures available
• All fabrication done in house

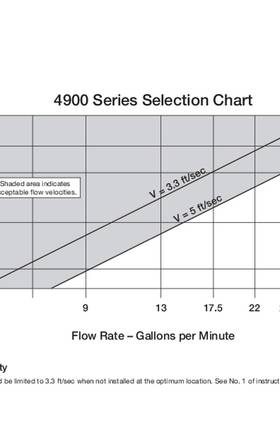

• Computerized selections to ensure fast and easy design
• National Board Registration
• CRN registration (optional)
